www.thalesgroup.

com/smart-l

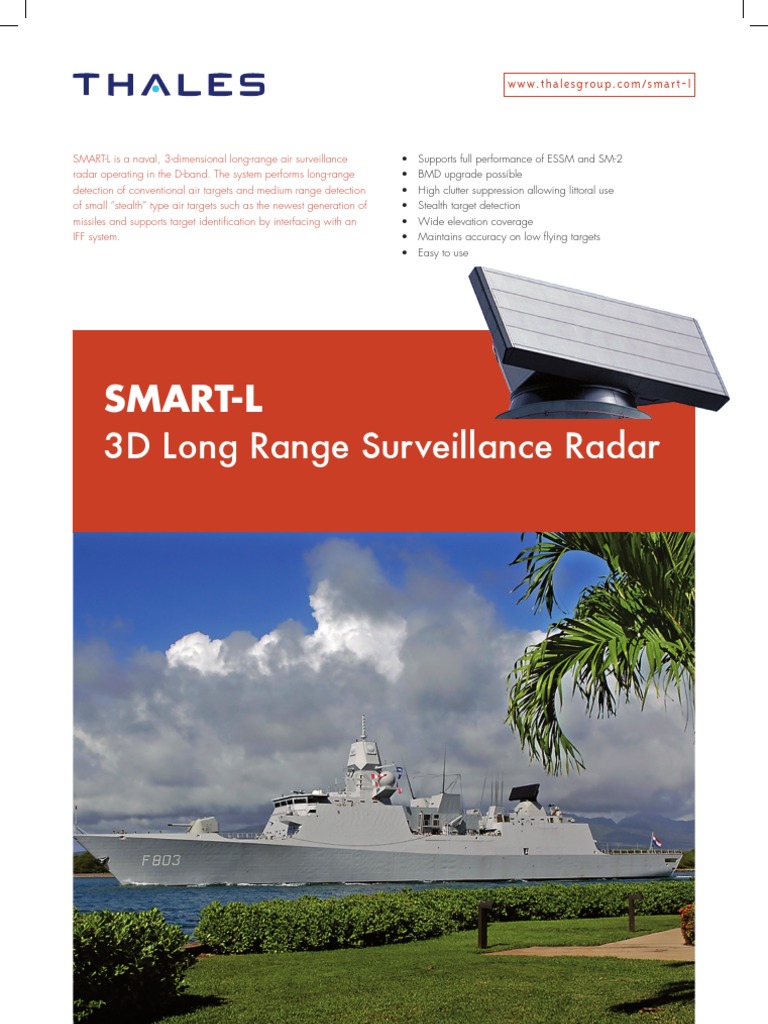

SMART-L is a naval, 3-dimensional long-range air surveillance radar operating in the D-band. The system performs long-range detection of conventional air targets and medium range detection of small stealth type air targets such as the newest generation of missiles and supports target identification by interfacing with an IFF system.

Supports full performance of ESSM and SM-2 BMD upgrade possible High clutter suppression allowing littoral use Stealth target detection Wide elevation coverage Maintains accuracy on low flying targets Easy to use

SMART-L 3D Long Range Surveillance Radar

SMART-L

3D Long Range Surveillance Radar

Main features
Multibeam architecture Pulse-Doppler processing over complete coverage Wide Elevation coverage One single mode Fast reaction capability Mission selectable illumination patterns Simultaneous air- and surface surveillance channel

Antenna
Polarisation : Vertical Horizontal beamwidth : 2.2 Update rate : 5 seconds Electronic stabilisation Very low sidelobes Integrated IFF Antenna Maintenance from inside the antenna

Functional Aspects
Long range air surveillance: - Build-up of recognised air picture - Fighter direction - Non-Cooperative Target Recognition - Local ATC Surface surveillance up to radar horizon Passive Jamming surveillance.

Transmitter
Frequency Solid State : D-band

Options
Ballistic Missile Defense support

Digital beamforming Multipath suppression using beams under the horizon Doppler FFT processing including radial speed determination Cluttermap and jamming map Least jammed frequency operation Multiple hypothesis tracking

Performance
Military Patrol Aircraft : ~400 km Stealth missile : ~65 km

Detection Ranges
2 km against RHIB 7 km against FPB

Technical Data
Instrumented data: Range (air) Elevation Capacity : 400km : 70 : >1000 tracks

Thales Nederland B.V. P.O. Box 42 7550 GD HENGELO THE NETHERLANDS

Phone : +31 74 248 81 11 Email : info@nl.thalesgroup.com

DS.153/10/12/H

This information carrier contains proprietary information which shall not be used, reproduced or disclosed to third parties without prior written authorization by THALES NEDERLAND B.V. and/or its suppliers, as applicable. Data on this sheet may be subject to change without notification.

Processing capacity
