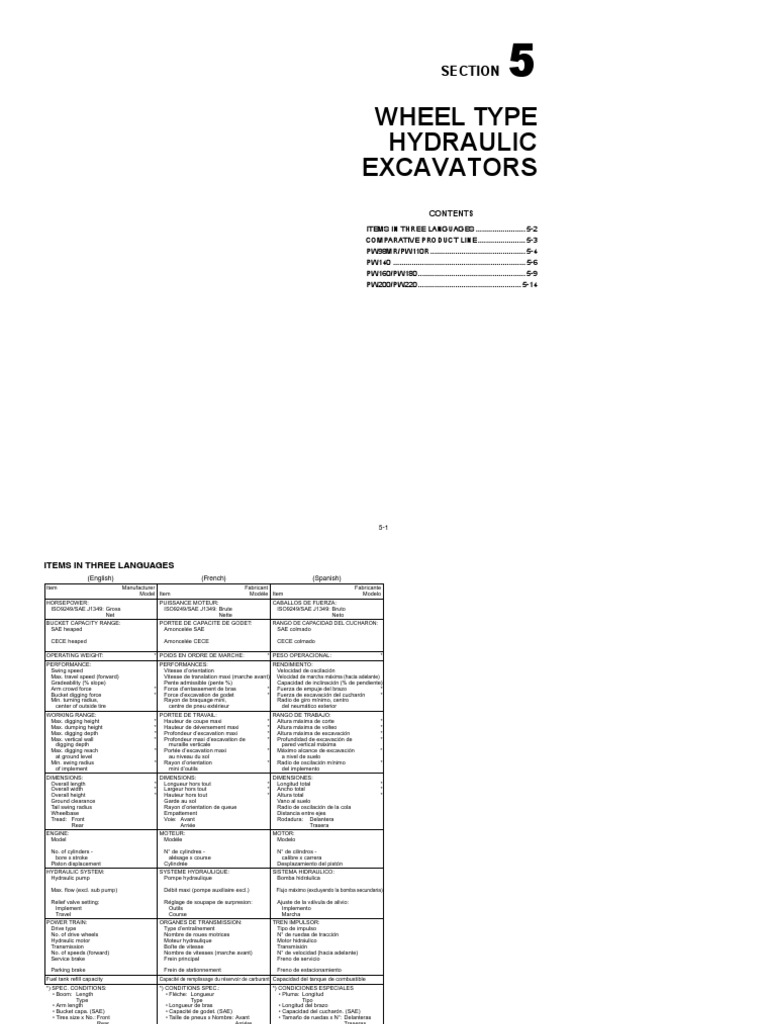

SECTION 5

WHEEL TYPE
HYDRAULIC
EXCAVATORS
CONTENTS
ITEMS IN THREE LANGUAGES ........................ 5-2
COMPARATIVE PRODUCT LINE....................... 5-3
PW98MR/PW110R.............................................. 5-4
PW140 ................................................................ 5-6
PW160/PW180.................................................... 5-9
PW200/PW220.................................................. 5-14

5-1
ITEMS IN THREE LANGUAGES
(English) (French) (Spanish)
Item Manufacturer Fabricant Fabricante
Model Item Modèle Item Modelo
HORSEPOWER: PUISSANCE MOTEUR: CABALLOS DE FUERZA:
ISO9249/SAE J1349: Gross ISO9249/SAE J1349: Brute ISO9249/SAE J1349: Bruto
Net Nette Neto
BUCKET CAPACITY RANGE: PORTEE DE CAPACITE DE GODET: RANGO DE CAPACIDAD DEL CUCHARON:
SAE heaped Amoncelée SAE SAE colmado

CECE heaped Amoncelée CECE CECE colmado

OPERATING WEIGHT: * POIDS EN ORDRE DE MARCHE: * PESO OPERACIONAL: *

PERFORMANCE: PERFORMANCES: RENDIMIENTO:
Swing speed Vitesse d’orientation Velocidad de oscilación
Max. travel speed (forward) Vitesse de translation maxi (marche avant) Velocidad de marcha máxima (hacia adelante)
Gradeability (% slope) Pente admissible (pente %) Capacidad de inclinación (% de pendiente)
Arm crowd force * Force d’entassement de bras * Fuerza de empuje del brazo *
Bucket digging force * Force d’excavation de godet * Fuerza de excavación del cucharón *
Min. turning radius, Rayon de braquage mini, Radio de giro mínimo, centro
center of outside tire centre de pneu extérieur del neumático exterior
WORKING RANGE: PORTEE DE TRAVAIL: RANGO DE TRABAJO:
Max. digging height * Hauteur de coupe maxi * Altura máxima de corte *
Max. dumping height * Hauteur de déversement maxi * Altura máxima de volteo *
Max. digging depth * Profondeur d’excavation maxi * Altura máxima de excavación *
Max. vertical wall * Profondeur maxi d’excavation de * Profundidad de excavación de *
digging depth muraille verticale pared vertical máxima
Max. digging reach * Portée d’excavation maxi * Máximo alcance de excavación *
at ground level au niveau du sol a nivel de suelo
Min. swing radius * Rayon d’orientation * Radio de oscilación mínimo *
of implement mini d’outils del implemento
DIMENSIONS: DIMENSIONS: DIMENSIONES:
Overall length * Longueur hors tout * Longitud total *
Overall width * Largeur hors tout * Ancho total *
Overall height * Hauteur hors tout * Altura total *
Ground clearance Garde au sol Vano al suelo
Tail swing radius Rayon d’orientation de queue Radio de oscilación de la cola
Wheelbase Empattement Distancia entre ejes
Tread: Front Voie: Avant Rodadura: Delantera
Rear Arrièe Trasera
ENGINE: MOTEUR: MOTOR:
Model Modèle Modelo

No. of cylinders - N° de cylindres - N° de cilindros -

bore x stroke alésage x course calibre x carrera
Piston displacement Cylindrée Desplazamiento del pistón
HYDRAULIC SYSTEM: SYSTEME HYDRAULIQUE: SISTEMA HIDRAULICO:
Hydraulic pump Pompe hydraulique Bomba hidráulica

Max. flow (excl. sub pump) Débit maxi (pompe auxiliaire excl.) Flujo máximo (excluyendo la bomba secundaria)

Relief valve setting: Réglage de soupape de surpresion: Ajuste de la válvula de alivio:

Implement Outils Implemento
Travel Course Marcha
POWER TRAIN: ORGANES DE TRANSMISSION: TREN IMPULSOR:
Drive type Type d’entraînement Tipo de impulso
No. of drive wheels Nombre de roues motrices N° de ruedas de tracción
Hydraulic motor Moteur hydraulique Motor hidráulico
Transmission Boîte de vitesse Transmisión
No. of speeds (forward) Nombre de vitesses (marche avant) N° de velocidad (hacia adelante)
Service brake Frein principal Freno de servicio

Parking brake Frein de stationnement Freno de estacionamiento

Fuel tank refill capacity Capacité de remplissage du réservoir de carburant Capacidad del tanque de combustible
*) SPEC. CONDITIONS: *) CONDITIONS SPEC.: *) CONDICIONES ESPECIALES
• Boom: Length • Flèche: Longueur • Pluma: Longitud
Type Type Tipo
• Arm length • Longueur de bras • Longitud del brazo
• Bucket capa. (SAE) • Capacité de godet. (SAE) • Capacidad del cucharón. (SAE)
• Tires size x No.: Front • Taille de pneus x Nombre: Avant • Tamaño de ruedas x N°: Delanteras
Rear Arrière Traseras
• Outrigger • Vérin stabilisateur • Cilindro estabilizador
• Dozer blade • Lame • Hoja
Emission regulations Règlements d’émission Regulaciones de la emisión
Refer No. Se reporter N° N° de Ref.

5-2
COMPARATIVE PRODUCT LINE
Figure in ( ) denote: ISO kW
OPERATING WEIGHT 0 5 10 15 20 25 30
(tons)
PW180(109)
KOMATSU
PW140(86) PW200(125)
[UK]
PW160(90) PW220(125)

KOMATSU
PW98MR(51)
[ITALY]
PW110R(70.9)

WX95(74) WX185(118)
CASE WX125(82) WX210(129)
[FRANCE] WX145(90) WX240(129)
WX165(105)

M313D(95)
M315D(101)
CATERPILLAR
M316D(118)
[USA]
M318D(124)
M322D(123)

Solar55WV(40.4) Solar180WV(112)
DOOSAN Solar160WV(96) Solar210WV(115)
[KOREA] DX140W(99) DX190W(116)
DX210W(121)

Zaxis210W(122)
HITACHI Zaxis140W(90.2)
[JAPAN] Zaxis170W(107)
Zaxis190W(122)

140W(78)
HYUNDAI
170W(87)
[KOREA]
200W(114)

JS130W(70)
JS145W(92)
JCB
JS160W(92)
[UK]
JS175W(128)
JS200W(128)

JOHN DEERE 190DW(119)

[USA] 220DW(119)

A309(65) A900C(95)
A311(68) A904C(105)
LIEBHERR
A312(81) A914C(120)
[GERMANY] A924C(135)
A314(90)
A316(96)

MH2.6(74) MH6.6(129)
NEW HOLLAND
MH3.6(84) MH8.6(129)
[HOLLAND]
MH5.6(118)

TW70(50.2) TW140(83) TW190(116)

TW85(60) TW160(105) TW240(125)
TW110(67) TW170(105)
TELEX/ATLAS 1905M(134)
[GERMANY/USA] 1305M(67) 1605M(105)
1404MK(69) 2205M(134)
1604MK(93)
TW150(95)
HML32(60) 1705M(110)

EW140C(91) EW210C(120)
VOLVO EW160C(106)
[SWEEDEN] EW180C(113)

5-3
PW98MR/PW110R (1/2)
Item Manufacturer KOMATSU KOMATSU KOMATSU CASE LIEBHERR LIEBHERR NEW HOLLAND TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS
Model PW98MR-6*1 PW110R-1*1 PW95R-2*1 WX95-2 A309 A311 MH2.6 TW70 TW85 HML32*2
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm
ISO 9249/SAE J1349: Net kW (HP)/rpm 51 (68.4)/2000 70.9 (95)/2000 61.5 (82.5)/2200 74 (99)/2100 65(88)/1800 68(92)/1800 74 (99)/2100 50.2 (67.3)/2400 60 (82)/2000 60 (82)/2000
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.077 to 0.282 0.093 to 0.4 0.086 to 0.34 0.096 to 0.28 0.20 to 0.30 0.20 to 0.30 0.10 to 0.28 0.065 to 0.27 0.065 to 0.385 0.095 to 0.385
(0.10 to 0.39) (0.12 to 0.52) (0.11 to 0.35) (0.13 to 0.37) (0.26 to 0.39) (0.26 to 0.39) (0.13 to 0.37) (0.085 to 0.35) (0.085 to 0.50) (0.111 to 0.504)
CECE heaped

OPERATING WEIGHT: * kg (lb) 9400 (20,720) 11270 (24,850) 9800 (21,620) 9550 (21,050) 11700 (25,790) 12600 (27,780) 10000 (22,050) 6800 (14,990) 8600 (18,960) 8600 (18,960)
PERFORMANCE:
Swing speed rpm 10.0 8.5 9.0 8.0 10.0 10.0 8.0 10.0 10.0 10.0
Max. travel speed (forward) km/h (MPH) 30.0 (18.6) 32.0 (19.9) 31.0 (19.3) 33.0 (20.5) 20.0 (12.4) 20.0 (12.4) 33.0 (20.5) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4)
Gradeability (% slope) % INA INA INA INA INA INA 84 70 INA INA
Arm crowd force * kg (lb) 4230 ( 9,330) 4300 ( 9,480) 4300 ( 9,480) 4690 (10,340) 4600 (10,140) 5100 (11,240) 4010 ( 8,840) 3060 (6,750) 4340 ( 9,570) 4350 ( 9,585)
Bucket digging force * kg (lb) 6250 (13,780) 7500 (16,530) 7200 (15,870) 4620 (10,190) 7000 (15,430) 7900 (17,420) 4600 (10,140) 3870 (8,530) 5420 (11,950) 5430 (11,970)
Min. turning radius, mm (ft.in) 4040 (13' 3") 4050 (13' 3") INA 3850 (12' 8") INA INA INA INA INA 7200 (23' 7")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 8358 (27' 5") 6560 (21' 6") 7860 (25' 9") 8065 (26' 6") 8450 (27' 9") 9050 (29' 8") 8395 (27' 7") 6970 (22' 0") 7500 (24' 7") 7500 (24' 7")
Max. dumping height * 6307 (20' 8") 4820 (15'10") 5995 (19' 6") 6145 (20' 2") 6350 (20'10") 6750 (22' 2") 6490 (21' 4") 5090 (16' 8") 5400 (17' 9") 5400 (17' 9")
Max. digging depth * 4019 (13' 2") 3790 (12' 5") 3555 ( 9' 3") 3950 (13' 0") 3800 (12' 6") 4400 (14' 5") 4300 (14' 1") 3605 (11'10") 4080 (13' 5") 4080 (13' 5")
Max. vertical wall * 3386 (11' 1") 2425 ( 7'11") 2820 ( 9' 3") 2140 ( 7' 0") INA INA 2405 ( 7'11") INA 3520 (11' 7") 3520 (11' 7")
digging depth
Max. digging reach * 7286 (23'11") INA INA 7745 (25' 4") 8000 (26' 3") 8700 (28' 7") 8095 (26' 7") 6700 (22' 0") INA 7400 (24' 3")
at ground level
Min. swing radius * INA 2580 ( 8' 6") 2480 ( 8' 2") 2960 ( 9' 9") 3050 (10' 0") 3150 (10' 4") 3190 (10' 6") INA INA INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 6079 (20' 0") 6540 (21' 5") 5895 (19' 4") 6970 (22'10") 8400 (27' 7") 8750 (28' 8") 7310 (24' 0") 5210 (17' 1") 5520 (18' 1") 6100 (20' 0")
Overall width * 2316 ( 7' 7") 2500 ( 8' 2") 2325 ( 7' 6") 2200 ( 7' 3") 2550 ( 8' 4") 2550 ( 8' 4") 2200 ( 7' 3") 2190 ( 7' 2") 2450 ( 8' 0") 2500 ( 8' 2")
Overall height * 3050 (10' 0") 3090 (10' 2") 3020 ( 9'11") 3025 ( 9'11") 3110 (10' 2") 3110 (10' 2") 3025 ( 9'11") 3595 (11'10") 3950 (13' 0") 3000 ( 9'10")
Ground clearance INA 350 ( 1' 2") 405 ( 1' 4") 290 (11") 320 ( 1' 1") 320 ( 1' 1") 290 ( 11") 420 ( 1' 5") 400 ( 1' 0") 430 ( 1' 5")
Tail swing radius 1310 ( 4' 4") 1620 ( 5' 4") 1565 ( 5' 2") 1485 ( 4'10") 1600 ( 5' 2") 1750 ( 5' 9") 1485 ( 4'10") 1450 ( 4' 9") 1500 ( 4'11") 1500 ( 4'11")
Wheelbase 2200 ( 7' 3") 2400 ( 7'10") 2200 ( 7' 3") 2200 ( 7' 3") 2400 ( 7'10") 2540 ( 8' 4") 2200 ( 7' 3") 2125 ( 7' 0") 2240 ( 7' 4") 2200 ( 7' 4")
Tread: Front INA 1945 ( 6' 5") 1815 ( 5'11") 1690 ( 5' 7") INA INA 1690 ( 5' 7") 1680 ( 5' 6") 1940 ( 6' 4") 1940 ( 6' 4")
Rear INA 1945 ( 6' 5") 1815 ( 5'11") 1690 ( 5' 7") INA INA 1690 ( 5' 7") 1680 ( 5' 6") 1940 ( 6' 4") 1940 ( 6' 4")
ENGINE:
Model Komatsu Komatsu Komatsu Case Deutz Deutz CNH Yanmar Deutz Deutz
S4D95LE-3 S4D106-1FB 4D106-1FB 445TA/MNB TCD 2012L04 TCD 2012L04 445TA/MLB 4TNV98 BF4M2012 BF4M2012
No. of cylinders - mm (in) 4 - 95 x 115 4 - 106 x 125 4 - 106 x 125 4 - 104 x 132 4 - 101 x 126 4 - 101 x 126 4 - 102 x 132 4 - 98 x 110 4 - 101 x 126 4 - 101 x 126
bore x stroke (3.74 x 4.53) (4.17 x 4.92) (4.17 x 4.92) (4.09 x 5.20) (3.98 x 4.96) (3.98 x 4.96) (4.02 x 5.20) (3.86 x 4.33) (3.98 x 4.96) (3.98 x 4.96)
Piston displacement ltr (cu.in) 3.26 (199) 4.412 (269) 4.412 (269) 4.5 (275) 4.0 (244) 4.0 (244) 4.5 (275) 3.3 (202) 4.04 (247) 4.04 (247)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 231 (61) 253 (67) 242 (63) 151 (40) 194 (51) 194 (51) 151 (40) 124 (33) 142 (38) 142 (38)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 270 (3840) 300 (4260) 280 (3980) 357 (5080) 357 (5080) 357 (5080) 357 (5080) 250 (3560) 286 (4070) 286 (4070)
Travel 270 (3840) 280 (3980) 357 (5080) 357 (5080) 357 (5080) 357 (5080) 428 (6090) 428 (6090) INA
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Synchro mesh Synchro mesh Synchro mesh Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 4 4 4 2 2 2 2 2 2 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, disc INA INA INA
Fuel tank refill capacity ltr (USgal) 125 (33) 150 (40) 125 (33) 128 (34) 210 (46) 210 (46) 128 (34) 150 (40) 190 (50) 190 (50)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) INA INA INA INA 2100 (6'11") 2350 (7'9") INA INA INA INA
Type Two-piece boom One-piece boom Two-piece boom Two-piece boom Two-piece boom Two-piece boom Two-piece boom Two-piece boom Two-piece boom Two-piece boom
• Arm length mm (ft.in) 1650 (5' 5") 1850 (6' 1") 1600 (5' 3") 1850 (6' 1") 1850 (6' 1") 2050 (6' 9") 2200 (7' 3") 1650 (5' 5") INA 2000 (6' 6")
• Bucket capa. (SAE) m3 (cu.yd) 0.282 (0.37) 0.32 (0.42) 0.298 (0.39) 0.19 (0.25) 0.29 (0.38) 0.29 (0.38) INA INA INA INA
• Tires size x No.: Front 8.25 - 20 x 4 9.00 - 20 x 4 8.25 - 20 x 4 8.25-20-14PR x 4 9.00-20 x 4 9.00-20 x 4 8.25 - 20 x 4 8.25-20-12PR x 4 8.25-20-12PR x 4 8.25-20-14PR x 4
Rear 8.25 - 20 x 4 9.00 - 20 x 4 8.25 - 20 x 4 8.25-20-14PR x 4 9.00-20 x 4 9.00-20 x 4 8.25 - 20 x 4 8.25-20-12PR x 4 8.25-20-12PR x 4 8.25-20-14PR x 4
• Outrigger Rear outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2
Refer No. WESS5600 02/2007 947033117-GB-03/2003 947033620-GB-03/2003 26061059-GB-04/08 10476165-2-06.08 10476165-2-06.08 73301428-GB-02/08 5777208512 57772099012 HML320505A
*1: Italy source
*2: USA source

5-4
PW98MR/PW110R (2/2)
Item Manufacturer TEREX/ATLAS
Model TW110
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm
ISO 9249/SAE J1349: Net kW (HP)/rpm 67 (91)/2000
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.260 to 0.635
(0.34 to 0.83)
CECE heaped

OPERATING WEIGHT: * kg (lb) 10990 (24,230)

PERFORMANCE:
Swing speed rpm 10.0
Max. travel speed (forward) km/h (MPH) 20.0 (12.4)
Gradeability (% slope) % INA
Arm crowd force * kg (lb) 5970 (13,160)
Bucket digging force * kg (lb) 7350 (16,200)
Min. turning radius, mm (ft.in) 7200 (23' 7")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 8240 (27' 0")
Max. dumping height * 6040 (19' 8")
Max. digging depth * 4315 (14' 2")
Max. vertical wall * 3665 (12' 0")
digging depth
Max. digging reach * 8100 (26' 7")
at ground level
Min. swing radius * INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 6500 (21' 4")
Overall width * 2500 ( 8' 2")
Overall height * 3000 ( 9'10")
Ground clearance 440 ( 1' 5")
Tail swing radius 1600 ( 5' 3")
Wheelbase 2600 ( 8' 4")
Tread: Front 1900 ( 6' 3")
Rear 1900 ( 6' 3")
ENGINE:
Model Deutz
BF4M2012
No. of cylinders - mm (in) 4 - 101 x 126
bore x stroke (3.98 x 4.96)
Piston displacement ltr (cu.in) 4.04 (247)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity

Max. flow (excl. sub pump) ltr/min 200 (53)

(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 286 (4070)
Travel 286 (4070)
POWER TRAIN:
Drive type Hydrostatic drive
No. of drive wheels 4x4
Hydraulic motor Variable capacity
Transmission Powershift
No. of speeds (forward) 2
Service brake Wet, multiple-disc

Parking brake INA

Fuel tank refill capacity ltr (USgal) 240 (63)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) INA
Type Two-piece boom
• Arm length mm (ft.in) 2000 (6' 6")
• Bucket capa. (SAE) m3 (cu.yd) INA
• Tires size x No.: Front 9.00 - 20 x 4
Rear 9.00 - 20 x 4
• Outrigger Rear outrigger
• Dozer blade
Emission regulations EPA Tier2 & EU Stage2
Refer No. TW110 5R 0507B

5-5
PW140 (1/3)
Item Manufacturer KOMATSU KOMATSU KOMATSU KOMATSU CASE CASE CASE CATERPILLAR DOOSAN DOOSAN
Model PW140-7 PW140-7 PW130-7 PW130-7 WX125-2 WX145-2 WX145-2 M313D DX140W DX140W
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 102 (137)/2000
ISO 9249/SAE J1349: Net kW (HP)/rpm 86 (115)/2200 86 (115)/2200 78 (105)/2200 78 (105)/2200 82 (117)/2000 90 (121)/2000 90 (121)/2000 95 (127)/2000 99 (132)/2200 99 (132)/2200
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.20 to 0.97 0.20 to 0.97 0.18 to 0.94 0.18 to 0.94 0.23 to 0.57 0.155 to 0.77 0.155 to 0.77 0.34 to 1.07 0.24 to 0.76 0.24 to 0.76
(0.26 to 1.27) (0.26 to 1.27) (0.24 to 1.23) (0.24 to 1.23) (0.30 to 0.75) (0.20 to 1.00) (0.20 to 1.00) (0.45 to 1.40) (0.31 to 0.99) (0.31 to 0.99)
CECE heaped 0.22 to 0.48 0.22 to 0.48
(0.29 to 0.63) (0.29 to 0.63)
OPERATING WEIGHT: * kg (lb) 14345 (31,625) 14700 (32,410) 14070 (31,020) 14350 (31,640) 12050 (26,570) 13850 (30,530) 14345 (31,625) 13900 (30,640) 14660 (32,320) 15200 (33,510)
PERFORMANCE:
Swing speed rpm 11.0 11.0 11.5 11.5 8.3 9.0 9.0 10.5 11.3 11.3
Max. travel speed (forward) km/h (MPH) 35.0 (21.7) 35.0 (21.7) 30.0 (18.6) 30.0 (18.6) 33.0 (20.5) 30.0 (18.6) 30.0 (18.6) 37.0 (23.0) 37.0 (23.0) 37.0 (23.0)
Gradeability (% slope) % INA INA INA INA INA INA INA 58 70 70
Arm crowd force * kg (lb) 6830 (15,060)*2 6830 (15,060)*2 7300 (16,090) 7300 (16,090) 6410 (14,130) 6220 (13,710) 6220 (13,710) 6320 (13,940) 7650 (16,870) 7650 (16,870)
Bucket digging force * kg (lb) 9480 (20,900)*2 9480 (20,900)*2 8500 (18,740) 8500 (18,740) 7440 (16,400) 9280 (20,460) 9280 (20,460) 9480 (20,910) 10140 (22,340) 10140 (22,340)
Min. turning radius, mm (ft.in) 6450 (21' 2") 6450 (21' 2") 6790 (22' 3") 6790 (22' 3") 4200 (13' 9") INA INA 6200 (20' 4") INA INA
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 8270 (27' 2") 9518 (31' 3") 8660 (28' 5") 8930 (29' 4") 8760 (28' 9") 8400 (27' 6") 9400 (30'10") 8790 (28'10") 8130 (26' 8") 9910 (29'11")
Max. dumping height * 6020 (19' 9") 7133 (23' 4") 6290 (20' 8") 6450 (21' 5") 6200 (20' 4") 6000 (19' 8") 6900 (22' 8") 6140 (20' 2") 5810 (19' 1") 6700 (22' 0")
Max. digging depth * 4860 (15'11") 5245 (17' 2") 4730 (15' 6") 5010 (16' 5") 4490 (14' 9") 5100 (16' 9") 5100 (16' 9") 5590 (18' 4") 4580 (15' 0") 5120 (16'10")
Max. vertical wall * 4005 (13' 2") 4000 (13' 1") 4175 (13' 8") 3980 (13' 1") 2570 ( 8' 5") 3500 (11' 6") 4000 (13' 1") 3670 (12' 1") INA INA
digging depth
Max. digging reach * 8140 (26' 8") 8140 (26' 8") 7690 (25' 3") 7945 (26' 1") 8475 (27'10") 8200 (26'11") 8400 (27' 7") 8770 (28'10") INA INA
at ground level
Min. swing radius * 2910 ( 9' 7") 2670 ( 8' 9") 2320 ( 7' 7") 2605 ( 8' 7") 3175 (10' 5") 3000 ( 9'10") 2500 ( 8' 2") INA 2470 ( 8' 1") 2840 ( 9' 4")
of implement
DIMENSIONS: mm (ft.in)
Overall length * 7632 (25' 0") 7915 (26' 0") 7575 (24'10") 7775 (25' 6") 7730 (25' 4") 7705 (25' 3") 7775 (25' 6") 8090 (26' 7") 7235 (23' 9") 7030 (23' 1")
Overall width * 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2480 ( 8' 2") 2540 ( 8' 4") 2540 ( 8' 4") 2550 ( 8' 4") 2495 ( 8' 2") 2495 ( 8' 2")
Overall height * 2930 ( 9' 7") 3165 (10' 5") 3060 (10' 0") 3060 (10' 0") 3085 (10' 1") 3050 (10' 0") 3050 (10' 0") 3120 (10' 3") 3350 (11' 0") 3650 (12' 0")
Ground clearance 341 ( 1' 1") 341 ( 1' 1") 385 ( 1' 3") 385 ( 1' 3") 360 ( 1' 2") 370 ( 1' 3") 370 ( 1' 3") 335 ( 1' 1") 350 ( 1' 2") 350 ( 1' 2")
Tail swing radius 2050 ( 6' 9") 2050 ( 6' 9") 2110 ( 6'11") 2110 ( 6'11") 1670 ( 5' 6") 1850 ( 6' 1") 1850 ( 6' 1") 2050 ( 6' 9") 2200 ( 7' 3") 2200 ( 7' 3")
Wheelbase 2500 ( 8' 2") 2500 ( 8' 2") 2600 ( 8' 6") 2600 ( 8' 6") 2400 ( 7'10") 2550 ( 8' 4") 2550 ( 8' 4") 2500 (18' 2") 2800 ( 9' 2") 2800 ( 9' 2")
Tread: Front 2550 ( 8' 4") 2550 ( 8' 4") 1915 ( 6' 3") 1915 ( 6' 3") 1920 ( 6' 4") 1910 ( 6' 3") 1910 ( 6' 3") INA 1945 ( 6' 5") 1945 ( 6' 5")
Rear 2550 ( 8' 4") 2550 ( 8' 4") 1915 ( 6' 3") 1915 ( 6' 3") 1920 ( 6' 4") 1910 ( 6' 3") 1910 ( 6' 3") INA 1945 ( 6' 5") 1945 ( 6' 5")
ENGINE:
Model Komatsu Komatsu Komatsu Komatsu Case Case Case Caterpillar Doosan Doosan
SAA4D107E-3 SAA4D107E-3 SAA4D102E-2 SAA4D102E-2 445TA/MLL 439TA-M2 439TA-M2 C4.4 ACERT DL06 DL06
No. of cylinders - mm (in) 4 - 107 x 124 4 - 107 x 124 4 - 102 x 120 4 - 102 x 120 4 - 104 x 132 4 - 102 x 120 4 - 102 x 120 4 - 105 x 127 6 - 100 x 125 6 - 100 x 125
bore x stroke (4.21 x 4.88) (4.21 x 4.88) (4.02 x 4.72) (4.02 x 4.72) (4.09 x 5.20) (4.02 x 4.72) (4.02 x 4.72) (4.13 x 5.00) (3.94 x 4.92) (3.94 x 4.92)
Piston displacement ltr (cu.in) 4.5 (275) 4.5 (275) 3.9 (238) 3.9 (238) 4.5 (275) 3.9 (238) 3.9 (238) 4.4 (269) 5.89 (359) 5.89 (359)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 252 (67) 252 (67) 236 (62) 236 (62) 182 (48) 330 (87) 330 (87) 190 (50) 312 (82) 312 (82)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 387 (5500) 387 (5500) 372 (5300) 372 (5300) 357 (5080) 377 (5363) 377 (5363) 357 (5076) 350 (4980) 350 (4980)
Travel 387 (5500) 387 (5500) 428 (6090) 428 (6090) 357 (5080) 377 (5363) 377 (5363) 357 (5076) 350 (4980) 350 (4980)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Automatic Automatic Automatic Automatic Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 3 3 3 3 2 2 2 2 3 3
Service brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, disc Wet, disc INA Wet, multiple-disc Wet, multiple-disc
Fuel tank refill capacity ltr (USgal) 275 (73) 275 (73) 250 (66) 250 (66) 162 (43) 210 (55) 210 (55) 235 (62) 280 (61) 280 (61)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 4600 (15' 1") 4890 (16' 1") 4600 (15' 1") 4800 (15' 9") 4000 (13' 1") 4650 (15' 3") 4700 (15' 5") 4815 (15'10") 4300 (14' 1") 4988 (16' 4")
Type One-piece boom Two-piece boom One-piece boom Two-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2500 ( 8' 2") 2500 ( 8' 2") 2100 ( 6'11") 2100 ( 6'11") 2000 ( 6' 7") 2300 ( 7' 6") 2300 ( 7' 6") 2600 ( 8' 6") 2100 ( 6'11") 2100 ( 6'11")
• Bucket capa. (SAE) m3 (cu.yd) 0.62 (0.81) 0.62 (0.81) 0.56 (0.73) 0.56 (0.73) 0.43 (0.56) 0.62 (0.82) 0.62 (0.82) INA 0.59 (0.77) 0.59 (0.77)
• Tires size x No.: Front 10.00-24-14PR x 4 10.00-24-14PR x 4 9.00-20 x 4 9.00-20 x 4 10.00-20-16PR x 4 18-19.5XF x 2 18-19.5XF x 2 10.00-20 x 4 10.00 - 20 - 14PR x 4 10.00 - 20 - 14PR x 4
Rear 10.00-24-14PR x 4 10.00-24-14PR x 4 9.00-20 x 4 9.00-20 x 4 10.00-20-16PR x 4 18-19.5XF x 2 18-19.5XF x 2 10.00-20 x 4 10.00 - 20 - 14PR x 4 10.00 - 20 - 14PR x 4
• Outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Front outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. VESS001200 05/2007 VESS001200 05/2007 UEESS10300 04/2005 UEESS10300 04/2005 26061049GB 08/07 Printed 04/07 Printed 04/07 AEHQ5753-01 (02-07) PBP D140W000 0703 PBP D140W000 0703
*2: At power max.

5-6
PW140 (2/3)
Item Manufacturer DOOSAN DOOSAN HITACHI HYUNDAI JCB JCB JCB JCB LIEBHERR LIEBHERR
Model SOLAR160WV SOLAR160WV ZAXIS 140W-3 140W-7A JS130W JS130W JS145W JS145W A312 A312
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 89 (119)/2000
ISO 9249/SAE J1349: Net kW (HP)/rpm 96 (128)/2200 96 (128)/2200 90.2 (121)/2200 78 (105)/2000 70 (94)/2100 70 (94)/2100 92 (123)/2200 92 (123)/2200 81 (110)/1800 81 (110)/1800
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.30 to 0.76 0.30 to 0.76 0.19 to 0.66 0.23 to 0.71 0.32 to 0.80 0.32 to 0.80 0.32 to 0.80 0.32 to 0.80 0.33 to 0.75 0.33 to 0.75
(0.39 to 1.00) (0.39 to 1.00) (0.25 to 0.86) (0.30 to 0.93) (0.42 to 1.05) (0.42 to 1.05) (0.42 to 1.05) (0.42 to 1.05) (0.43 to 0.98) (0.43 to 0.98)
CECE heaped 0.25 to 0.65 0.25 to 0.65 0.17 to 0.55 0.20 to 0.60
(0.32 to 0.85) (0.32 to 0.85) (0.22 to 0.72) (0.26 to 0.78)
OPERATING WEIGHT: * kg (lb) 14500 (31,970) 14860 (32,760) 15700 (34,610) 13500 (29,760) 14305 (31,540) 14805 (32,640) 14305 (31,540) 14805 (32,640) 13700 (30,200) 14250 (31,420)
PERFORMANCE:
Swing speed rpm 12.5 12.5 13.1 12.4 13.4 13.4 13.4 13.4 10.0 10.0
Max. travel speed (forward) km/h (MPH) 37.0 (23.0) 37.0 (23.0) 35.0 (21.7) 31 (19.3) 27.0 (17.0) 27.0 (17.0) 30.0 (19.0) 30.0 (19.0) 20.0 (12.4) 20.0 (12.4)
Gradeability (% slope) % 70 70 70 70 70 70 INA INA INA INA
Arm crowd force * kg (lb) 6300 (13,890) 6300 (13,890) 6600 (14,600) 7700 (16,980) 7430 (16,380) 7430 (16,380) 7430 (16,380) 7430 (16,380) 6200 (13,670) 6200 (13,670)
Bucket digging force * kg (lb) 8340 (18,390) 8340 (18,390) 10100 (22,300) 9800 (21,610) 7720 (17,020) 7720 (17,020) 7720 (17,020) 7720 (17,020) 8100 (17,960) 8100 (17,960)
Min. turning radius, mm (ft.in) INA INA 6800 (22' 4") 6300 (20' 8") 5450 (17'11") 5450 (17'11") 5450 (17'11") 5450 (17'11") INA INA
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 8610 (28' 2") 9565 (31' 4") 8810 (28'11") 8490 (27'10") 9455 (31' 0") 10000 (32' 9") 9455 (31' 0") 10000 (32' 9") 8250 (27' 1") 9700 (31'10")
Max. dumping height * 6210 (20' 4") 7130 (23' 4") 6410 (21' 0") 6060 (19'11") INA INA INA INA 5500 (18' 1") 6850 (22' 2")
Max. digging depth * 5040 (16' 5") 5475 (18' 0") 5050 (16' 7") 4820 (15'10") 5175 (16'11") 5425 (17'10") 5175 (16'11") 5425 (16'11") 4850 (15'11") 5200 (17' 1")
Max. vertical wall * 4475 (14' 7") INA 4540 (14'11") 4230 (13'11") 4600 (15' 0") 4625 (15' 2") 4600 (15' 0") 4625 (15' 2") INA INA
digging depth
Max. digging reach * 8020 (26' 3") 8540 (28' 0") 8210 (26'11") 7700 (25' 3") 8125 (26' 8") 8525 (28' 0") 8125 (26' 8") 8525 (28' 0") 8100 (26' 7") 8450 (27' 9")
at ground level
Min. swing radius * INA INA 2640 ( 8' 8") 2680 ( 8'10") 2050 ( 6' 8") 2575 ( 8' 5") 2050 ( 6' 8") 2575 ( 8' 5") 2950 ( 9' 8") 2400 ( 7'10")
of implement
DIMENSIONS: mm (ft.in)
Overall length * 7360 (24' 1") 7330 (24' 1") 7730 (25' 4") 7800 (25' 7") 7600 (24'11") 7650 (25' 1") 7600 (24'11") 7650 (25' 1") 7600 (24'11") 8050 (26' 5")
Overall width * 2495 ( 8' 2") 2495 ( 8' 2") 2530 ( 8' 4") 2500 ( 8' 2") 2490 ( 8' 2") 2490 ( 8' 2") 2480 ( 8' 2") 2480 ( 8' 2") 2550 ( 8' 4") 2550 ( 8' 4")
Overall height * 3815 (12' 5") 3825 (12' 7") 3130 (10' 3") 3140 (10' 4") 3040 (10' 0") 3040 (10' 0") 3040 (10' 0") 3040 (10' 0") 3120 (10' 3") 3120 (10' 3")
Ground clearance 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 435 ( 1' 5") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 360 ( 1' 2") 360 ( 1' 2")
Tail swing radius 2210 ( 7' 3") 2210 ( 7' 3") 1980 ( 6' 6") 2280 ( 7' 6") 2050 ( 6' 9") 2050 ( 6' 9") 2050 ( 6' 9") 2050 ( 6' 9") 1945 ( 6' 5") 1945 ( 6' 5")
Wheelbase 2800 ( 9' 2") 2800 ( 9' 2") 2550 ( 8' 4") 2600 ( 8' 6") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2550 ( 8' 4") 2550 ( 8' 4")
Tread: Front 1915 ( 6' 3") 1915 ( 6' 3") INA 1930 ( 6' 4") INA INA INA INA INA INA
Rear 1915 ( 6' 3") 1915 ( 6' 3") INA 1930 ( 6' 4") INA INA INA INA INA INA
ENGINE:
Model Doosan Doosan Isuzu Mitsubishi Isuzu Isuzu Isuzu Isuzu Deutz Deutz
DB58TIS DB58TIS AI-4JJ1X D04FD-TAA A4BGIT A4BGIT 4JJ1X 4JJ1X TCD2012 L04 TCD2012 L04
No. of cylinders - mm (in) 6 - 102 x 118 6 - 102 x 118 4 - 95.4 x 104.9 4 - 102 x 130 4 - 105 x 125 4 - 105 x 125 4 - 95.4 x 104.9 4 - 95.4 x 104.9 4 - 101 x 126 4 - 101 x 126
bore x stroke (4.02 x 4.65) (4.02 x 4.65) (3.76 x 4.13) (4.02 x 5.12) (4.13 x 4.92) (4.13 x 4.92) (3.76 x 4.13) (3.76 x 4.13) (3.98 x 4.96) (3.98 x 4.96)
Piston displacement ltr (cu.in) 5.785 (353) 5.785 (353) 3.0 (183) 4.25 (259) 4.33 (264) 4.33 (264) 3.0 (183) 3.0 (183) 4.0 (244) 4.0 (244)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 324 (86) 324 (86) 315 (93) 260 (69) 256 (67.6) 256 (67.6) 276 (73) 276 (73) 230 (61) 230 (61)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 350 (4980) 350 (4980) 350 (4980) 330 (4690) 320 (4554) 320 (4554) 320 (4554) 320 (4554) 357 (5080) 357 (5080)
Travel 350 (4980) 350 (4980) 350 (4980) 330 (4690) 320 (4554) 320 (4554) 320 (4554) 320 (4554) 357 (5080) 357 (5080)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 3 2 2 2 2 2 2 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, multiple-disc INA Wet, multiple-disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc
Fuel tank refill capacity ltr (USgal) 280 (61) 280 (61) 250 (66) 270 (71) 240 (63) 240 (63) 253 (67) 253 (67) 210 (46) 210 (46)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 4600 (15' 1") 4952 (16' 1") INA 4600 (15' 1") 4700 (15' 5") 5000 (16' 5") 4700 (15' 5") 5000 (16' 5") 4500 (14' 9") INA
Type One-piece boom Two-piece boom One-piece boom One-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2500 ( 8' 2") 2500 ( 8' 2") 2520 ( 8' 3") 2100 ( 6'11") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2250 ( 7' 5") 2250 ( 7' 5")
• Bucket capa. (SAE) m3 (cu.yd) 0.58 (0.76) 0.58 (0.76) 0.50 (0.72) 0.58 (0.76) INA INA INA INA 0.46 (0.60) 0.46 (0.60)
• Tires size x No.: Front 9.00-20-14PR x 4 9.00-20-14PR x 4 10.00-20-14PR x 2 9.00-20-14PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 INA INA
Rear 9.00-20-14PR x 4 9.00-20-14PR x 4 10.00-20-14PR x 2 9.00-20-14PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 INA INA
• Outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier3 & EU Stage3A EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. PBP S160W500 0507 PBP S160W500 05/07 KS-EN039.07.06 EN-2007.07 Rev0 9999/4979 10/05 9999/4979 10/05 9999/4980 8/07 9999/4980 8/07 10472356-2-05.08 10472356-2-05.08

5-7
PW140 (3/3)
Item Manufacturer LIEBHERR NEW HOLLAND TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS
Model A314 MH3.6 1305M 1305M TW140 TW140 1404MK 1404MK TW150 TW150
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm
ISO 9249/SAE J1349: Net kW (HP)/rpm 90 (122)/1800 84 (113)/2000 67 (91)/2000 67 (91)/2000 83 (111)/2200 83 (111)/2200 69 (94)/2100 69 (94)/2100 95 (127)/2300 95 (127)/2300
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.33 to 0.75 0.23 to 0.57 0.67 to 0.92 0.67 to 0.92 0.67 to 0.92 0.67 to 0.92 0.67 to 1.12 0.67 to 1.12 0.67 to 1.12 0.67 to 1.12
(0.43 to 0.98) (0.30 to 0.75) (0.88 to 1.20) (0.88 to 1.20) (0.88 to 1.20) (0.88 to 1.20) (0.88 to 1.46) (0.88 to 1.46) (0.88 to 1.46) (0.88 to 1.46)
CECE heaped

OPERATING WEIGHT: * kg (lb) 15150 (33,400) 12600 (27,780) 13800 (30,420) 14200 (31,310) 13900 (30,640) 14400 (31,750) 14800 (30,280) 15300 (33,730) 15300 (33,730) 15600 (34,390)
PERFORMANCE:
Swing speed rpm 9.0 8.3 9.0 9.0 9.0 9.0 8.5 8.5 9.0 9.0
Max. travel speed (forward) km/h (MPH) 20.0 (12.4) 33.0 (20.5) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4)
Gradeability (% slope) % INA 80 72.5 72.5 72.5 72.5 INA INA 71 71
Arm crowd force * kg (lb) 6700 (14,770) 5670 (12,500) 6530 (14,400) 6530 (14,400) 5610 (12,370) 5610 (12,370) 8360 (18,430) 8360 (18,430) 8360 (18,430) 8360 (18,430)
Bucket digging force * kg (lb) 8100 (17,960) 7300 (16,090) 10810 (23,830) 10810 (23,830) 10810 (23,830) 10810 (23,830) 13260 (29,230) 13260 (29,230) 13260 (29,230) 13260 (29,230)
Min. turning radius, mm (ft.in) INA INA INA INA INA INA INA INA INA INA
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 9650 (31' 8") 9080 (29' 9") 7900 (25'11") 8350 (27' 5") 8200 (26'11") 9500 (31' 2") 9150 (30' 0") 9700 (31'10") 8100 (26' 7") 9700 (31'10")
Max. dumping height * 6800 (22' 4") 6510 (21' 4") INA INA 5500 (18' 1") 5700 (18' 8") INA INA 5350 (17' 7") INA
Max. digging depth * 5150 (16'11") 4840 (15'11") 4650 (15' 3") 4900 (16' 0") 5510 (18' 1") 5400 (17' 9") 4900 (16' 1") 5100 (16' 9") 5200 (17' 1") 5100 (16' 9")
Max. vertical wall * INA 2840 ( 9' 4") INA INA 3700 (12' 2") 4200 (13' 9") INA INA 3000 ( 9'10") 3800 (12' 6")
digging depth
Max. digging reach * 8550 (28' 1") 8825 (28'11") INA INA 8250 (27' 1") 8700 (28' 7") INA INA 8050 (26' 5") 8550 (28' 1")
at ground level
Min. swing radius * 2650 ( 8' 8") 3380 (11' 1") INA INA INA INA INA INA INA INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 8200 (26'11") 8030 (26' 4") 7300 (23'11") 7720 (25' 4") 7250 (23'10") 7680 (25' 2") INA 7700 (25' 3") 7550 (24' 9") 7710 (25' 4")
Overall width * 2550 ( 8' 4") 2480 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2490 ( 8' 2") 2490 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2")
Overall height * 3120 (10' 3") 3085 (10' 1") 3080 (10' 1") 3080 (10' 1") 3080 (10' 1") 3080 (10' 1") 3000 ( 9'10") 3000 ( 9'10") 3150 (10' 4") 3080 (10' 1")
Ground clearance 360 ( 1' 2") 360 ( 3' 2") 450 ( 1' 6") 450 ( 1' 6") 450 ( 1' 6") 450 ( 1' 6") 350 ( 1' 2") 350 ( 1' 2") 450 ( 1' 6") 450 ( 1' 6")
Tail swing radius 2065 ( 6' 9") 1670 ( 5' 6") 1980 ( 6' 5") 1980 ( 6' 5") 1980 ( 6' 5") 1980 ( 6' 5") 1575 ( 5' 2") 1575 ( 5' 2") 2190 ( 7' 2") 2190 ( 7' 2")
Wheelbase 2540 ( 8' 4") 2400 ( 7'10") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2")
Tread: Front INA 1920 ( 6' 4") 1870 ( 6' 1") 1870 ( 6' 1") INA INA INA INA INA INA
Rear INA 1920 ( 6' 4") 1870 ( 6' 1") 1870 ( 6' 1") INA INA INA INA INA INA
ENGINE:
Model Deutz CNH Deutz Deutz Deutz Deutz Deutz Deutz Deutz Deutz
TCD2013 L0V4 445TA/MLL BF4M2012 BF4M2012 TCD2012L042V TCD2012L042V BF4M2012 BF4M2012 TCD2012L042V TCD2012L042V
No. of cylinders - mm (in) 4 - 108 x 130 4 - 102 x 132 4 - 101 x 126 4 - 101 x 126 4 - 101 x 126 4 - 101 x 126 4 - 101 x 126 4 - 101 x 126 4 - 101 x 126 4 - 101 x 126
bore x stroke (4.25 x 5.12) (4.02 x 5.20) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96)
Piston displacement ltr (cu.in) 4.8 (293) 4.5 (275) 4.04 (247) 4.04 (247) 4.04 (247) 4.04 (247) 4.04 (247) 4.04 (247) 4.04 (247) 4.04 (247)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 230 (61) 182 (48) 188 (50) 188 (50) 188 (50) 188 (50) 220 (58) 220 (58) 260 (69) 260 (69)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 357 (5080) 357 (5080) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 346 (4920) 346 (4920) 367 (5220) 367 (5220)
Travel 357 (5080) 357 (5080) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 346 (4920) 346 (4920) 367 (5220) 367 (5220)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 2 2 2 2 2 2 2 2
Service brake Wet, multiple-disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc
Fuel tank refill capacity ltr (USgal) 290 (77) 162 (43) 194 (51) 194 (51) 240 (63) 240 (63) 190 (50) 190 (50) 247 (65) 247 (65)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 3200 (10' 6") INA 4220 (13'10") INA 4220 (13'10") 5020 (26' 4") INA INA 4320 (14' 2") 4970 (16' 4")
Type Two-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2250 ( 7' 5") 2350 ( 7' 9") 1960 ( 6' 5") 1960 ( 6' 5") 2500 ( 8' 2") 2500 ( 8' 2") 2160 ( 7' 1") 2160 ( 7' 1") 2150 ( 7' 1") 2150 ( 7' 1")
• Bucket capa. (SAE) m3 (cu.yd) 0.46 (0.60) INA 0.67 (0.88) 0.67 (0.88) INA INA 0.82 (1.07) 0.67 (0.88) INA INA
• Tires size x No.: Front INA 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4
Rear INA 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4
• Outrigger Rear outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. 10346749-2-03.07 7330/428GB 02/08 PRE.VERSION 11/2005 PRE.VERSION 11/2005 PRE.VERSION 03/2007 PRE.VERSION 03/2007 6043541-03/2003 6043541-03/2003 PRE.VERSION 03/2007 PRE.VERSION 03/2007

5-8
PW160/PW180 (1/5)
Item Manufacturer KOMATSU KOMATSU KOMATSU KOMATSU CASE CASE CASE CASE CATERPILLAR CATERPILLAR
Model PW160-7 PW160-7 PW180-7 PW180-7 WX165-2 WX165-2 WX185-2 WX185-2 M315D M315D
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 108 (145)/2000 108 (145)/2000
ISO 9249/SAE J1349: Net kW (HP)/rpm 90 (121)/2200 90 (121)/2200 109 (146)/2000 109 (146)/2000 105 (141)/2000 105 (141)/2000 118 (158)/2000 118 (158)/2000 101 (135)/2000 101 (135)/2000
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.20 to 0.97 0.20 to 0.97 0.38 to 1.13 0.38 to 1.13 0.27 to 0.95 0.27 to 0.95 0.27 to 0.95 0.27 to 0.95 0.34 to 1.12 0.34 to 1.12
(0.26 to 1.27) (0.26 to 1.27) (0.50 to 1.48) (0.50 to 1.48) (0.35 to 1.24) (0.35 to 1.24) (0.35 to 1.24) (0.35 to 1.24) (0.45 to 1.47) (0.45 to 1.47)
CECE heaped INA INA

OPERATING WEIGHT: * kg (lb) 15950 (35,160) 16340 (36,020) 17990 (39,660) 18220 (40,170) 16250 (35,820) 17400 (38,360) 18750 (41,340) 19300 (42,550) 15800 (34,830) 16250 (35,820)
PERFORMANCE:
Swing speed rpm 11.0 11.0 11.5 11.5 9.0 9.0 9.0 9.0 10.5 10.5
Max. travel speed (forward) km/h (MPH) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7) 30.0 (18.6) 30.0 (18.6) 30.0 (18.6) 30.0 (18.6) 34.0 (21.1) 34.0 (21.1)
Gradeability (% slope) % INA INA INA INA INA INA INA INA 69 69
Arm crowd force * kg (lb) 6500 (14,330)*2 6500 (14,330)*2 9000 (19,840)*2 9000 (19,840)*2 6730 (14,840) 6730 (14,840) 9890 (21,800) 9890 (21,800) 7240 (15,960) 7240 (15,960)
Bucket digging force * kg (lb) 10400 (22,930)*2 10400 (22,930)*2 12500 (27,560)*2 12500 (27,560)*2 11520 (25,400) 11520 (25,400) 12750 (28,110) 12750 (28,110) 10300 (22,710) 10300 (22,710)
Min. turning radius, mm (ft.in) 6790 (22' 3") 6790 (22' 3") 6800 (22' 4") 6800 (22' 4") INA INA INA INA 6300 (20' 8") 6300 (20' 8")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 8930 (29' 4") 10118 (33' 2") 9562 (31' 4") 10129 (33' 3") 9000 (29' 6") 10000 (32'10") 9200 (30' 2") 10200 (33' 6") 9190 (30' 2") 10380 (34' 1")
Max. dumping height * 6555 (21' 6") 7655 (25' 1") 7064 (23' 2") 7489 (24' 7") 6500 (21' 4") 7400 (24' 3") 6600 (21' 8") 7500 (24' 7") 6230 (20' 5") 7300 (24' 0")
Max. digging depth * 5320 (17' 5") 5465 (17'11") 5676 (18' 8") 5742 (18'10") 5700 (18' 8") 5700 (18' 8") 5600 (18' 4") 5600 (18' 4") 5890 (19' 4") 6090 (20' 0")
Max. vertical wall * INA INA INA INA 2700 ( 8'10") 3400 (11' 2") 3500 (11' 6") 3800 (12' 6") 3820 (12' 7") 4090 (13' 5")
digging depth
Max. digging reach * 8885 (29' 2") 8745 (28' 8") 9170 (30' 0") 9227 (30' 3") 8800 (28' 6") 9100 (29' 3") 9000 (29' 6") 9200 (30' 2") 9170 (30' 1") 9380 (30'10")
at ground level
Min. swing radius * 3160 (10' 4") 2385 ( 7'10") 3829 (12' 7") 3311 (10'10") 2800 ( 9' 2") 2800 ( 9' 2") 2800 ( 9' 2") 2900 ( 9' 6") INA INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 8345 (27' 5") 8200 (26'11") 8963 (29' 5") 8870 (29' 1") 8100 (26' 7") 8350 (27' 5") 8605 (28' 3") 8685 (28' 6") 8330 (27' 4") 8470 (27' 9")
Overall width * 2540 ( 8' 4") 2540 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2540 ( 8' 4") 2540 ( 8' 4") 2530 ( 8' 4") 2530 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4")
Overall height * 3235 (10' 7") 3350 (11' 0") 3193 (10' 6") 3273 (10' 9") 3165 (10' 5") 3050 (10' 0") 3100 (10' 2") 3100 (10' 2") 3150 (10' 4") 3150 (10' 4")
Ground clearance 350 ( 1' 2") 350 ( 1' 2") 332 ( 1' 1") 332 ( 1' 1") 370 ( 1' 3") 370 ( 1' 3") 370 ( 1' 3") 370 ( 1' 3") 335 ( 1' 1") 335 ( 1' 1")
Tail swing radius 2180 ( 7' 2") 2180 ( 7' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2000 ( 6' 7") 2000 ( 6' 7") 2150 ( 7' 1") 2150 ( 7' 1") 2215 ( 7' 3") 2215 ( 7' 3")
Wheelbase 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2550 ( 8' 4") 2550 ( 8' 4") 2650 ( 8' 8") 2650 ( 8' 8") 2550 ( 8' 4") 2550 ( 8' 4")
Tread: Front 1915 ( 6' 3") 1915 ( 6' 3") 1915 ( 6' 3") 1915 ( 6' 3") 1890 ( 6' 2") 1890 ( 6' 2") 1890 ( 6' 2") 1890 ( 6' 2") INA INA
Rear 1915 ( 6' 3") 1915 ( 6' 3") 1915 ( 6' 3") 1915 ( 6' 3") 1890 ( 6' 2") 1890 ( 6' 2") 1890 ( 6' 2") 1890 ( 6' 2") INA INA
ENGINE:
Model Komatsu Komatsu Komatsu Komatsu Case Case Case Case Caterpillar Caterpillar
SAA4D107E-1 SAA4D107E-1 SAA6D107E-1 SAA6D107E-1 667/MEC 667/MEC 667/MEB 667/MEB C4.4 ACERT C4.4 ACERT
No. of cylinders - mm (in) 4 - 107 x 124 4 - 107 x 124 6 - 107 x 124 6 - 107 x 124 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132 4 - 105 x 127 4 - 105 x 127
bore x stroke (4.21 x 4.88) (4.21 x 4.88) (4.21 x 4.88) (4.21 x 4.86) (4.09 x 5.20) (4.09 x 5.20) (4.09 x 5.20) (4.09 x 5.20) (4.13 x 5.00) (4.13 x 5.00)
Piston displacement ltr (cu.in) 4.46 (272) 4.46 (272) 6.69 (408) 6.69 (408) 6.7 (409) 6.7 (409) 6.7 (409) 6.7 (409) 4.40 (269) 4.40 (269)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 308 (81) 308 (81) 308 (81) 308 (81) 380 (100) 380 (100) 420 (111) 420 (111) 220 (58) 220 (58)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 387 (5500) 387 (5500) 387 (5500) 387 (5500) 377 (5360) 377 (5360) 377 (5360) 377 (5360) 357 (5076) 357 (5076)
Travel 428 (6090) 428 (6090) 387 (5500) 387 (5500) 377 (5360) 377 (5360) 377 (5360) 377 (5360) 357 (5076) 357 (5076)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Automatic Automatic Automatic Automatic Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 3 3 3 3 2 2 2 2 2 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc INA INA
Fuel tank refill capacity ltr (USgal) 300 (79) 300 (79) 325 (86) 325 (86) 270 (71) 270 (71) 360 (95) 360 (95) 235 (62) 235 (62)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 5300 (17' 5") 5223 (17' 2") 5350 (17' 7") 5280 (17' 4") 4800 (15' 9") 5000 (16' 5") 5200 (17' 1") 5300 (17' 5") 5050 (16' 7") 5200 (17' 1")
Type One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2500 ( 8' 2") 2500 ( 8' 2") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2400 ( 7'10") 2400 ( 7'10") 2600 ( 8' 6") 2600 ( 8' 6")
• Bucket capa. (SAE) m3 (cu.yd) 0.62 (0.81) 0.62 (0.81) 0.66 (0.86) 0.66 (0.86) 0.66 (0.86) 0.66 (0.86) 0.66 (0.86) 0.66 (0.86) INA INA
• Tires size x No.: Front 10.00-24-14PR x 4 10.00-24-14PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 18-19.5XF x 2 18-19.5XF x 2 18-19.5XF x 2 18-19.5XF x 2 10.00-20 x 4 10.00-20 x 4
Rear 10.00-24-14PR x 4 10.00-24-14PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 18-19.5XF x 2 18-19.5XF x 2 18-19.5XF x 2 18-19.5XF x 2 10.00-20 x 4 10.00-20 x 4
• Outrigger Rear outrigger Rear outrigger Front outrigger Front outrigger Front outrigger Front outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. VESS001600 10/2007 VESS001600 10/2007 VESS001700 10/2007 VESS001700 10/2007 26061064GB 03/08 26061064GB 03/08 26061065GB 04/08 26061065GB 04/08 AEHQ5754-01 (02-07) AEHQ5754-01 (02-07)
*2: At power max.

5-9
PW160/PW180 (2/5)
Item Manufacturer CATERPILLAR CATERPILLAR CATERPILLAR CATERPILLAR DOOSAN DOOSAN DOOSAN DOOSAN HITACHI HITACHI
Model M316D M316D M318D M318D SOLAR180WV SOLAR180WV DX190W DX190W ZAXIS 140W-3*1 ZAXIS 140W-3*1
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 124 (166)/1800 124 (166)/1800 130 (177)/1800 130 (177)/1800
ISO 9249/SAE J1349: Net kW (HP)/rpm 118 (158)/1800 118 (158)/1800 124 (166)/1800 124 (166)/1800 112 (150)/2100 112 (150)/2100 116 (156)/1900 116 (156)/1900 90.2 (121)/2300 90.2 (121)/2300
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.34 to 1.12 0.34 to 1.12 0.38 to 1.26 0.38 to 1.26 0.34 to 0.91 0.34 to 0.91 0.38 to 0.93 0.38 to 0.93 0.19 to 0.66 0.19 to 0.66
(0.45 to 1.47) (0.45 to 1.47) (0.50 to 1.65) (0.50 to 1.65) (0.44 to 1.19) (0.44 to 1.19) (0.50 to 1.22) (0.50 to 1.22) (0.25 to 0.86) (0.25 to 0.86)
CECE heaped 0.31 to 0.80 0.31 to 0.80 0.35 to 0.81 0.35 to 0.81 0.17 to 0.55 0.17 to 0.55
(0.41 to 1.05) (0.41 to 1.05) (0.46 to 1.06) (0.46 to 1.06) (0.22 to 0.72) (0.22 to 0.72)
OPERATING WEIGHT: * kg (lb) 17350 (38,250) 17850 (39,350) 18400 (40,570) 18950 (41,780) 17700 (39,020) 18500 (40,790) 18850 (41,560) 19330 (42,620) 15700 (34,610) 16200 (35,710)
PERFORMANCE:
Swing speed rpm 10.5 10.5 10.5 10.5 12.0 12.0 10.9 10.9 13.7 13.7
Max. travel speed (forward) km/h (MPH) 37.0 (23.0) 37.0 (23.0) 37.0 (23.0) 37.0 (23.0) 32.0 (19.9) 32.0 (19.9) 36.0 (22.4) 36.0 (22.4) 35.0 (21.7) 35.0 (21.7)
Gradeability (% slope) % 63 63 61 61 68.2 68.2 70 70 70 70
Arm crowd force * kg (lb) 7240 (15,960) 7240 (15,960) 9280 (20,460) 9280 (20,460) 9200 (20,280)*2 9200 (20,280)*2 9300 (20,500)*2 9900 (21,820)*2 6640 (14,640) 6640 (14,640)
Bucket digging force * kg (lb) 10300 (22,710) 10300 (22,710) 12850 (28,330) 12850 (28,330) 11200 (24,690)*2 11200 (24,690)*2 14200 (31,310)*2 14200 (31,310)*2 10100 (22,270) 10100 (22,270)
Min. turning radius, mm (ft.in) 6400 (21' 0") 6400 (21' 0") 6400 (21' 0") 6400 (21' 0") INA INA INA INA 6800 (22' 4") 6800 (22' 4")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 9210 (30' 3") 10400 (34' 2") 9010 (29' 7") 10000 (32'10") 9025 (29' 7") 9825 (32' 3") 9340 (30' 8") 10260 (33' 8") 8850 (29' 0") 10040 (32'11")
Max. dumping height * 6250 (20' 6") 7320 (24' 0") 6110 (20' 1") 6970 (22'11") 6290 (20' 8") 7005 (22'11") 6650 (21'10") 7415 (24' 4") 6440 (21' 2") 7570 (24'10")
Max. digging depth * 5870 (19' 3") 6070 (19'11") 6000 (19' 8") 6060 (19'11") 6005 (19' 8") 6000 (19' 8") 5965 (19' 7") 5600 (18' 4") 5030 (16' 6") 5290 (17' 4")
Max. vertical wall * 3800 (12' 6") 4070 (13' 4") 3340 (11' 0") 3680 (12' 1") 5020 (16' 6") INA INA INA 4520 (14'10") 4490 (14' 9")
digging depth
Max. digging reach * 9170 (30' 1") 9380 (30'10") 9320 (30' 7") 9300 (30' 7") 8855 (29' 1") 9115 (29'11") INA INA 8210 (26'11") 8780 (28'10")
at ground level
Min. swing radius * 8500 (27'11") INA INA INA INA INA 3200 (10' 6") 2965 ( 9' 9") 2650 ( 8' 8") 2670 ( 8' 9")
of implement
DIMENSIONS: mm (ft.in)
Overall length * 8400 (27' 7") 8540 (28' 0") 8960 (29' 5") 8850 (29' 0") 8595 (28' 2") 6805 (22' 4") 8660 (28' 5") 8860 (29' 1") 7730 (25' 4") 8200 (26'11")
Overall width * 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2495 ( 8' 2") 2495 ( 8' 2") 2495 ( 8' 2") 2495 ( 8' 2") 2530 ( 8' 4") 2530 ( 8' 4")
Overall height * 3170 (10' 5") 3170 (10' 5") 3210 (10' 6") 3170 (10' 5") 3795 (12' 5") 4000 (13' 1") 3310 (10'10") 3140 (10' 4") 3130 (10' 3") 3130 (10' 3")
Ground clearance 325 ( 1' 1") 325 ( 1' 1") 325 ( 1' 1") 325 ( 1' 1") 340 ( 1' 1") 340 ( 1' 1") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2")
Tail swing radius 2280 ( 7' 6") 2280 ( 7' 6") 2500 ( 8' 2") 2500 ( 8' 2") 2450 ( 8' 0") 2450 ( 8' 0") 2450 ( 8' 0") 2450 ( 8' 0") 2120 ( 6'11") 2120 ( 6'11")
Wheelbase 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2800 ( 9' 2") 2800 ( 9' 2") 2700 ( 8'10") 2700 ( 8'10") 2550 ( 8' 4") 2550 ( 8' 4")
Tread: Front INA INA INA INA 1915 ( 6' 3") 1915 ( 6' 3") 1945 ( 6' 5") 1945 ( 6' 5") INA INA
Rear INA INA INA INA 1915 ( 6' 3") 1915 ( 6' 3") 1945 ( 6' 5") 1945 ( 6' 5") INA INA
ENGINE:
Model Caterpillar Caterpillar Caterpillar Caterpillar Doosan Doosan Doosan Doosan Isuzu Isuzu
C6.6 ACERT C6.6 ACERT C6.6 ACERT C6.6 ACERT DB58TIS DB58TIS DL06 DL06 AI-4JJ1X AI-4JJ1X
No. of cylinders - mm (in) 6 - 105 x 127 6 - 105 x 127 6 - 105 x 127 6 - 105 x 127 6 - 102 x 118 6 - 102 x 118 6 - 100 x 125 6 - 100 x 125 4 - 95.4 x 104.9 4 - 95.4 x 104.9
bore x stroke (4.13 x 5.00) (4.13 x 5.00) (4.13 x 5.00) (4.13 x 5.00) (4.02 x 4.65) (4.02 x 4.65) (3.94 x 4.92) (3.94 x 4.92) (3.76 x 4.13) (3.76 x 4.13)
Piston displacement ltr (cu.in) 6.6 (403) 6.6 (403) 6.6 (403) 6.6 (403) 5.785 (353) 5.785 (353) 5.890 (359) 5.890 (359) 3.0 (183) 3.0 (183)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 250 (66) 250 (66) 290 (77) 290 (77) 328 (87) 328 (87) 400 (106) 400 (106) 315 (83) 315 (83)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 357 (5076) 357 (5076) 357 (5076) 357 (5076) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980)
Travel 357 (5076) 357 (5076) 357 (5076) 357 (5076) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 2 2 2 2 3 3 3 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, disc

Parking brake INA INA INA INA Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc INA INA
Fuel tank refill capacity ltr (USgal) 310 (82) 310 (82) 385 (102) 385 (102) 280 (61) 280 (61) 310 (82) 310 (82) 250 (66) 250 (66)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 5050 (16' 7") 5200 (17' 1") 5350 (17' 7") 5260 (17' 3") 5150 (16'11") 5950 (19' 6") 5200 (17' 1") 5360 (17' 7") INA INA
Type One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2600 ( 8' 6") 2600 ( 8' 6") 2500 ( 8' 2") 2500 ( 8' 2") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2300 ( 7' 7") 2520 ( 8' 3") 2520 ( 8' 3")
• Bucket capa. (SAE) m3 (cu.yd) INA INA INA INA 0.70 (0.92) 0.70 (0.92) 0.80 (1.05) 0.80 (1.05) 0.50 (0.72) 0.50 (0.72)
• Tires size x No.: Front 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-16PR x 2 10.00-20-16PR x 2
Rear 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20 x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-16PR x 2 10.00-20-16PR x 2
• Outrigger Front outrigger Front outrigger Front outrigger Front outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. AEHQ5755-01 (02-07) AEHQ5755-01 (02-07) AEHQ3569 (02/2007) AEHQ3569 (02/2007) PBP S180W500 00507 PBP S180W500 00507 PBP D190W000 0703 PBP D190W000 0703 KS-EN039EU KS-EN039EU
*1: For EU machine
*2: At power max.

5-10
PW160/PW180 (3/5)
Item Manufacturer HITACHI HITACHI HYUNDAI JCB JCB JCB JCB LIEBHERR LIEBHERR LIEBHERR
Model ZAXIS 170W-3*1 ZAXIS 170W-3*1 170W-7A JS160W JS160W JS175W JS175W A316 A900C A904C
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 94 (126)/2000
ISO 9249/SAE J1349: Net kW (HP)/rpm 107 (143)/2000 107 (143)/2000 87 (116)/2000 92 (123)/2200 92 (123)/2200 128 (172)/2000 128 (172)/2000 94 (128)/1800 95 (129)/1800 105 (143)/1800
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.52 to 0.82 0.52 to 0.82 0.39 to 1.05 0.35 to 0.90 0.35 to 0.90 0.35 to 0.90 0.35 to 0.90 0.28 to 0.85 0.28 to 0.85 0.30 to 1.05
(0.68 to 1.07) (0.68 to 1.07) (0.34 to 1.37) (0.46 to1.18) (0.46 to1.18) (0.46 to1.18) (0.46 to1.18) (0.37 to 1.11) (0.37 to 1.11) (0.39 to 1.39)
CECE heaped 0.45 to 0.70 0.45 to 0.70 0.34 to 0.90
(0.59 to 0.92) (0.59 to 0.92) (0.44 to 1.18)
OPERATING WEIGHT: * kg (lb) 17700 (39,020) 18300 (40,340) 16200 (35,710) 16980 (37,430) 17580 (38,760) 17180 (37,880) 17780 (39,200) 16600 (36,600) 17200 (37,910) 19200 (42,330)
PERFORMANCE:
Swing speed rpm 12.2 12.2 11.0 11.3 11.3 11.3 11.3 9.0 9.0 9.0
Max. travel speed (forward) km/h (MPH) 35.0 (21.7) 35.0 (21.7) 30.0 (18.7) 25.0 (15.5) 25.0 (15.5) 30.0 (19.0) 30.0 (19.0) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4)
Gradeability (% slope) % 70 70 58 INA INA INA INA INA INA INA
Arm crowd force * kg (lb) 8440 (18,610) 8240 (18,170) 9080 (20,020) 9160 (20,200)*2 8100 (17,860)*2 9160 (20,200)*2 8100 (17,860)*2 6800 (14,990) 8000 (17,640) 9100 (20,060)
Bucket digging force * kg (lb) 10400 (22,930) 10400 (22,930) 12700 (28,690) 10740 (23,680)*2 10740 (23,680)*2 10740 (23,680)*2 10740 (23,680)*2 10000 (22,050) 11000 (24,250) 14100 (31,090)
Min. turning radius, mm (ft.in) 6650 (21' 6") 6650 (21' 6") 6100 (20' 0") 5450 (17' 0") 5450 (17' 0") 5450 (17'10") 5450 (17'10") INA INA INA
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 9100 (29'10") 10200 (33' 6") 8990 (29' 6") 9237 (30' 4") 10000 (32' 9") 9237 (30' 4") 10000 (32' 9") 10000 (32'10") 10200 (33' 6") 10100 (33' 2")
Max. dumping height * 6360 (20'10") 7340 (24' 1") 6350 (20'10") INA INA INA INA 7200 (23' 7") 7400 (24' 3") 7000 (23' 0")
Max. digging depth * 5330 (17' 6") 5720 (18' 9") 5420 (17' 9") 6120 (20' 1") 5700 (18' 9") 6120 (20' 1") 5750 (18' 9") 5300 (17' 5") 5500 (18' 1") 6050 (19'10")
Max. vertical wall * 4810 (15' 9") 5050 (16' 7") 4890 (16' 1") 4178 (13' 8") 4900 (16' 1") 4178 (13' 8") 4900 (16' 1") INA INA INA
digging depth
Max. digging reach * 8870 (29' 1") 9280 (30' 5") 8480 (27'10") 8776 (28' 6") 8850 (29' 1") 8776 (28' 6") 8850 (29' 1") 8800 (28'10") 9000 (29' 6") 9300 (30' 6")
at ground level
Min. swing radius * 2940 ( 9' 8") 3030 ( 9'11") 3180 (10' 5") 2961 ( 9' 6") 2615 ( 8' 8") 2961 ( 9' 6") 2675 ( 8' 8") 2550 ( 8' 4") INA INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 8580 (28' 2") 8810 (28'11") 8610 (28' 3") 8135 (26' 7") 8118 (26' 7") 8283 (27' 2") 8266 (27' 1") 8450 (27' 9") 8700 (28' 7") 9050 (29' 8")
Overall width * 2550 ( 8' 4") 2550 ( 8' 4") 2500 ( 8' 2") 2490 ( 8' 2") 2490 ( 8' 2") 2490 ( 8' 2") 2490 ( 8' 2") 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4")
Overall height * 3130 (10' 3") 3130 (10' 3") 3150 (10' 4") 3195 (10' 5") 3195 (10' 5") 3185 (10' 5") 3185 (10' 5") 3130 (10' 3") 3160 (10' 4") 3200 (10' 6")
Ground clearance 350 ( 1' 2") 350 ( 1' 2") 315 ( 1' 0") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 360 ( 1' 2") 360 ( 1' 2") 350 ( 1' 2")
Tail swing radius 2320 ( 7' 7") 2320 ( 7' 7") 2480 ( 8' 2") 2190 ( 7' 4") 2190 ( 7' 4") 2338 ( 7' 8") 2338 ( 7' 8") 2260 ( 7' 5") 2330 ( 7' 8") 2515 ( 8' 3")
Wheelbase 2550 ( 8' 4") 2550 ( 8' 4") 2600 ( 8' 6") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2540 ( 8' 4") 2540 ( 8' 4") 2750 ( 9' 0")
Tread: Front INA INA 1915 ( 6' 3") INA INA INA INA INA INA INA
Rear INA INA 1915 ( 6' 3") INA INA INA INA INA INA INA
ENGINE:
Model Isuzu Isuzu Mitsubishi Isuzu Isuzu Isuzu Isuzu Deutz Liebherr Liebherr
AI-4HK1X AI-4HK1X D04FD-TAA 4JJ1X 4JJ1X 4HK1X 4HK1X TCD2013 L0V4 D934S D934S
No. of cylinders - mm (in) 4 - 115 x 125 4 - 115 x 125 4 - 102 x 130 4 - 95.4 x 104.9 4 - 95.4 x 104.9 4 - 115 x 125 4 - 115 x 125 4 - 108 x 130 4 - 122 x 136 4 - 122 x 136
bore x stroke (4.53 x 4.92) (4.53 x 4.92) (4.02 x 5.12) (3.76 x 4.13) (3.76 x 4.13) (4.53 x 4.92) (4.53 x 4.92) (4.25 x 5.12) (4.80 x 5.34) (4.80 x 5.34)
Piston displacement ltr (cu.in) 5.14 (317) 5.14 (317) 4.25 (259) 3.0 (183) 3.0 (183) 5.19 (317) 5.19 (317) 4.8 (293) 6.4 (391) 6.4 (391)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 400 (106) 400 (106) 336 (89) 276 (73) 276 (73) 312 (82.4) 312 (82.4) 297 (79) 300 (79) 378 (100)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 350 (4980) 350 (4980) 330 (4690) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 357 (5080) 357 (5080) 357 (5080)
Travel 350 (4980) 350 (4980) 330 (4690) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 357 (5080) 357 (5080) 357 (5080)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 2 2 2 2 2 2
Service brake Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake INA INA Wet, multiple-disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc
Fuel tank refill capacity ltr (USgal) 290 (77) 290 (77) 260 (67) 253 (67) 253 (67) 310 (82) 310 (82) 290 (77) 290 (77) 350 (92)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) INA INA 5100 (16' 9") 5150 (16'11") 5150 (16'11") 5150 (16'11") 4980 (16' 4") 3400 (11' 2") 3600 (11'10") 3800 (12' 6")
Type One-piece boom Two-piece boom One-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom Two-piece boom Two-piece boom Two-piece boom
• Arm length mm (ft.in) 2580 ( 8' 6") 2500 ( 8' 2") 2200 ( 7' 3") 2700 ( 8'10") 2700 ( 8'10") 2700 ( 8'10") 2700 ( 8'10") 2250 ( 7' 5") 2250 ( 7' 5") 2450 ( 8' 0")
• Bucket capa. (SAE) m3 (cu.yd) 0.60 (0.72) 0.60 (0.72) 0.76 (0.99) INA INA INA INA 0.50 (0.65) 0.50 (0.65) 0.70 (0.92)
• Tires size x No.: Front 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-14PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR 10.00 - 20 x 16PR INA 10.00 - 20 x 4 10.00 - 20 x 4
Rear 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-14PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR x 4 10.00 - 20 x 16PR 10.00 - 20 x 16PR INA 10.00 - 20 x 4 10.00 - 20 x 4
• Outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. KS-EN040EU KS-EN040EU EN-2007.07 Rev0 9999/4981 6/07 9999/4981 6/07 9999/4982 6/07 9999/4982 6/07 10346749-2-03.07 8421034-2-04.08 8421044-2-07.06
*1: For EU machine *1: Machine for Europe
*2: At power max. *2: At power max.

5-11
PW160/PW180 (4/5)
Item Manufacturer NEW HOLLAND NEW HOLLAND NEW HOLLAND NEW HOLLAND TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS
Model MH5.6 MH5.6 MH PLUS MH PLUS 1604MK 1604MK 1605M 1605M TW160 TW160
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm
ISO 9249/SAE J1349: Net kW (HP)/rpm 118 (158)/2000 118 (158)/2000 105 (141)/2000 105 (141)/2000 93 (127)/2300 93 (127)/2300 105 (141)/2000 105 (141)/2000 105 (141)/2000 105 (141)/2000
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.53 to 1.10 0.53 to 1.10 0.25 to 0.93 0.25 to 0.93 0.82 to 1.12 0.82 to 1.12 0.67 to 1.12 0.67 to 1.12 0.67 to 1.12 0.67 to 1.12
(0.69 to 1.44) (0.69 to 1.44) (0.33 to 1.22) (0.33 to 1.22) (1.07 to 1.46) (1.07 to 1.46) (0.88 to 1.46) (0.88 to 1.46) (0.88 to 1.46) (0.88 to 1.46)
CECE heaped 0.46 to 0.95 0.46 to 0.95 0.23 to 0.81 0.23 to 0.81
(0.61 to 1.24) (0.61 to 1.24) (0.30 to 1.06) (0.30 to 1.06)
OPERATING WEIGHT: * kg (lb) 19880 (43,830) 19065 (42,030) 17940 (39,550) 17260 (38,050) 17100 (37,600) 17900 (39,460) 15200 (33,510) 15700 (34,610) 16100 (35,490) 16500 (36,380)
PERFORMANCE:
Swing speed rpm 9.5 9.5 9.5 9.5 9.0 9.0 9.0 9.0 9.0 9.0
Max. travel speed (forward) km/h (MPH) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4)
Gradeability (% slope) % INA INA INA INA INA INA INA INA 65.1 65.1
Arm crowd force * kg (lb) 9530 (21,010)*2 9530 (21,010)*2 6670 (14,710)*2 6670 (14,710)*2 9380 (20,680) 9380 (20,680) 8360 (18,430) 8360 (18,430) 7340 (16,180) 7340 (16,180)
Bucket digging force * kg (lb) 11790 (25,990)*2 11790 (25,990)*2 10850 (23,920)*2 10850 (23,920)*2 12440 (27,430) 12440 (27,430) 13260 (29,230) 13260 (29,230) 13260 (29,230) 13260 (29,230)
Min. turning radius, mm (ft.in) 8100 (26' 7") 8100 (26' 7”) 8000 (26' 3") 8000 (26' 3") 7500 (24' 7") 7500 (24' 7") 7500 (24' 7") 7500 (24' 7") INA INA
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 10295 (33' 9") 9330 (30' 7") 10070 (33' 0") 9140 (30' 0") 9100 (25' 5") 9500 (31' 2") 8100 (26' 7") 9650 (31' 8") 8350 (27' 5") 10100 (33' 2")
Max. dumping height * 7365 (24' 2") 6480 (21' 3") 7335 (24' 1") 6455 (21' 2") INA INA INA INA 5650 (18' 6") 7350 (24' 1")
Max. digging depth * 5755 (18'11") 5705 (18' 9") 5755 (18'11") 4715 (15' 6") 5700 (18' 9") 5500 (18' 1") 5200 (17' 1") 5100 (16' 9") 5700 (18' 8") 5600 (18' 4")
Max. vertical wall * 4065 (13' 4") 3875 (12' 9") 4490 (14' 9") 4210 (13'10") INA INA INA INA 4550 (14'11") 4300 (14' 1")
digging depth
Max. digging reach * 9275 (30' 5") 9125 (29'11") 9130 (29'11") 8805 (28'11") INA INA INA INA 8500 (27'11") 9000 (29' 6")
at ground level
Min. swing radius * 2880 ( 9' 5") 3260 (10' 8") 2895 ( 9' 6") 2840 ( 9' 4") INA INA INA INA INA INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 8780 (28'10") 8690 (28' 6") 8440 (27' 8") 8235 (27' 0") INA INA INA INA 7550 (24' 4") 8050 (26' 5")
Overall width * 2540 ( 8' 4") 2540 ( 8' 4") 2540 ( 8' 4") 2540 ( 8' 4") 2550 ( 8' 2") 2550 ( 8' 2") 2490 ( 8' 2") 2490 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2")
Overall height * 3070 (10' 1") 3070 (10' 1") 3010 ( 9'11") 3010 ( 9'11") 3020 ( 9'11") 3020 ( 9'11") 3075 (10' 1") 3075 (10' 1") 3150 (10' 4") 3080 (10' 1")
Ground clearance 330 ( 3' 1") 330 ( 1' 1") 345 ( 1' 2") 345 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") INA INA 450 ( 1' 6") 450 ( 1' 6")
Tail swing radius 2050 ( 6' 9") 2050 ( 6' 9") 1900 ( 6' 3") 1900 ( 6' 3") 1750 ( 5' 9") 1750 ( 5' 9") 2190 ( 7' 2") 2190 ( 7' 2") 2190 ( 7' 2") 2190 ( 7' 2")
Wheelbase 2650 ( 8' 8") 2650 ( 8' 8") 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2")
Tread: Front INA INA INA INA 1870 ( 6' 1") 1870 ( 6' 1") 1875 ( 6' 2") 1875 ( 6' 2") INA INA
Rear INA INA INA INA 1870 ( 6' 1") 1870 ( 6' 1") 1875 ( 6' 2") 1875 ( 6' 2") INA INA
ENGINE:
Model CNH CNH CNH CNH Deutz Deutz Deutz Deutz Deutz Deutz
667TA/MEB 667TA/MEB 667TA/MEC 667TA/MEC BF4M2012C BF4M2012C BF6M2012C BF6M2012C TCD2012L062V TCD2012L062V
No. of cylinders - mm (in) 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132 4 - 101 x 126 4 - 101 x 126 6 - 101 x 126 6 - 101 x 126 6 - 101 x 126 6 - 101 x 126
bore x stroke (4.09 x 5.20) (4.09 x 5.20) (4.09 x 5.20) (4.09 x 5.20) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96)
Piston displacement ltr (cu.in) 6.7 (409) 6.7 (409) 6.7 (409) 6.7 (409) 4.04 (247) 4.04 (247) 6.06 (370) 6.06 (370) 6.06 (370) 6.06 (370)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 450 (119) 450 (119) 370 (98) 370 (98) 300 (79) 300 (79) 260 (69) 260 (69) 260 (69) 260 (69)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 347 (4940) 347 (4940) 347 (4940) 347 (4940) 346 (4920) 346 (4920) 367 (5220) 367 (5220) 367 (5220) 367 (5220)
Travel 352 (5010) 352 (5010) 352 (5010) 352 (5010) 346 (4920) 346 (4920) 367 (5220) 367 (5220) 367 (5220) 367 (5220)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 2 2 2 2 2 2 2 2
Service brake Wet, disc Wet, disc Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake INA INA INA INA INA INA Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc
Fuel tank refill capacity ltr (USgal) 360 (95) 360 (95) 270 (71) 270 (71) 230 (61) 230 (61) 264 (70) 264 (70) 247 (65) 247 (65)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) INA INA INA INA 4950 (16' 3") INA 4320 (14' 2") 4970 (16' 4") 4320 (14' 2") 4970 (16' 4")
Type Two-piece boom One-piece boom Two-piece boom One-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2400 ( 7'10") 2400 ( 7'10") 2600 ( 8' 6") 2600 ( 8' 6") 2200 ( 7' 3") 2200 ( 7' 3") 2160 ( 7' 1") 2160 ( 7' 1") 2650 ( 8' 8") 2650 ( 8' 8")
• Bucket capa. (SAE) m3 (cu.yd) 0.54 (0.71) 0.54 (0.71) 0.54 (0.71) 0.54 (0.71) 0.92 (1.20) 0.92 (1.20) 0.83 (1.09) 0.83 (1.09) INA INA
• Tires size x No.: Front 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
Rear 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
• Outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Front outrigger Front outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. 77301429GB 07/08 73301429GB 07/08 73301434GB 05/08 73301434GB 05/08 6043547-03/2003 6043547-03/2003 6067832-03/2004 6067832-03/2004 PRE.VERSION 03/2007 PRE.VERSION 03/2007
*2: At power max.

5-12
PW160/PW180 (5/5)
Item Manufacturer TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS VOLVO VOLVO VOLVO VOLVO VOLVO VOLVO
Model TW170 TW170 1705M 1705M EW140C EW140C EW160C EW160C EW180C EW180C
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 100 (134)/2000 100 (134)/2000 115 (154)/1800 115 (154)/1800 122 (164)/1900 122 (164)/1900
ISO 9249/SAE J1349: Net kW (HP)/rpm 105 (141)/2000 105 (141)/2000 110 (148)/2000 110 (148)/2000 91 (122)/2000 91 (122)/2000 106 (142)/1800 106 (142)/1800 113 (152)/1900 113 (152)/1900
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.67 to 1.12 0.67 to 1.12 0.67 to 1.12 0.67 to 1.12 0.60 to 0.94 0.56 to 0.885 0.65 to 1.00 0.575 to 1.00 0.675 to 1.025 0.65 to 0.975
(0.88 to 1.46) (0.88 to 1.46) (0.88 to 1.46) (0.88 to 1.46) (0.78 to 1.23) (0.73 to 1.12) (0.85 to 1.31) (0.75 to 1.31) (0.88 to 1.34) (0.85 to 1.28)
CECE heaped

OPERATING WEIGHT: * kg (lb) 17400 (38,360) 17800 (39,240) 15200 (33,510) 15700 (34,610) 15400 (33,950) 15650 (34,500) 17430 (38,430) 17770 (39,180) 19200 (42,330) 19800 (43,650)
PERFORMANCE:
Swing speed rpm 9.0 9.0 9.0 9.0 10.0 10.0 10.0 10.0 9.5 9.5
Max. travel speed (forward) km/h (MPH) 20.0 (12.4) 20.0 (12.4) 30.0 (18.6) 30.0 (18.6) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7)
Gradeability (% slope) % 59 65.1 INA INA 63 63 INA INA INA INA
Arm crowd force * kg (lb) 7340 (16,180) 7340 (16,180) 8360 (18,430) 8360 (18,430) 6480 (14,290) 6480 (14,290) 8740 (19,270) 8740 (19,270) 10470 (23,090) 10470 (23,090)
Bucket digging force * kg (lb) 13260 (29,230) 13260 (29,230) 13260 (29,230) 13260 (29,230) 11030 (24,320) 11030 (24,320) 11370 (25,070) 11370 (25,070) 12540 (27,650) 12540 (27,650)
Min. turning radius, mm (ft.in) INA INA 7500 (24' 7") 7500 (24' 7") 7300 (23'11") 7300 (23'11") 7200 (23' 7") 7200 (23' 7") 7300 (23'11") 7300 (23'11")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 8350 (27' 5") 10100 (33' 2") 8100 (26' 7") 9650 (31' 8") 8530 (28' 0") 9530 (31' 3") 9110 (29'11") 9990 (32' 9") 9110 (29'11") 10090 (33' 1")
Max. dumping height * 5650 (18' 6") 7350 (24' 1") INA INA 5850 (19' 2") 6700 (22' 0") 6190 (20' 4") 6995 (22'11") 6415 (21' 1") 7215 (23' 8")
Max. digging depth * 5700 (18' 8") 5600 (18' 4") 5200 (17' 1") 5100 (16' 9") 5030 (16' 6") 5070 (16' 8") 5585 (18' 4") 5560 (18' 3") 5670 (18' 7") 5760 (18'11")
Max. vertical wall * 4550 (14'11") 4300 (14' 1") INA INA 4280 (14' 1") 4070 (13' 4") 4695 (15' 5") 4445 (14' 7") 3890 (12' 9") 4290 (14' 1")
digging depth
Max. digging reach * 8500 (27'11") 9000 (29' 6") INA INA 8170 (26'10") 8450 (27' 9") 8825 (28'11") 8970 (29' 5") 8955 (29' 5") 9135 (30' 0")
at ground level
Min. swing radius * INA INA INA INA 2710 ( 8'11") 2550 ( 8' 4") 3145 (10' 4") 2815 ( 9' 3") 3225 (10' 7") 2750 ( 9' 0")
of implement
DIMENSIONS: mm (ft.in)
Overall length * 7550 (24' 4") 8050 (26' 5") 9700 (31'10") 8710 (28' 7") 7460 (24' 6") 7720 (25' 4") 8190 (26'10") 8310 (27' 3") 8720 (28' 7") 8880 (29' 2")
Overall width * 2500 ( 8' 2") 2500 ( 8' 2") 2490 ( 8' 2") 2490 ( 8' 2") 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2550 ( 8' 4") 2540 ( 8' 4") 2540 ( 8' 4")
Overall height * 3150 (10' 4") 3080 (10' 1") 3200 (10' 6") 3200 (10' 6") 3330 (10'11") 3140 (10' 4") 3190 (10' 6") 3140 (10' 4") 3170 (10' 5") 3170 (10' 5")
Ground clearance 450 ( 1' 6") 450 ( 1' 6") 350 ( 1' 2") 350 ( 1' 2") 340 ( 1' 1") 340 ( 1' 1") 340 ( 1' 1") 340 ( 1' 1") 340 ( 1' 1") 340 ( 1' 1")
Tail swing radius 2190 ( 7' 2") 2190 ( 7' 2") 2190 ( 7' 2") 2190 ( 7' 2") 2000 ( 6' 7") 2000 ( 6' 7") 2150 ( 7' 1") 2150 ( 7' 1") 2450 ( 8' 0") 2450 ( 8' 0")
Wheelbase 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2650 ( 8' 8") 2650 ( 8' 8")
Tread: Front INA INA 1875 ( 6' 2") 1875 ( 6' 2") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4")
Rear INA INA 1875 ( 6' 2") 1875 ( 6' 2") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4") 1940 ( 6' 4")
ENGINE:
Model Deutz Deutz Deutz Deutz Volvo Volvo Volvo Volvo Volvo Volvo
TCD2012L062V TCD2012L062V BF6M2012C BF6M2012C D5E EAE3 D5E EAE3 D6E EDE3 D6E EDE3 D6E ECE3 D6E ECE3
No. of cylinders - mm (in) 6 - 101 x 126 6 - 101 x 126 6 - 101 x 126 6 - 101 x 126 4 - 108 x 130 4 - 108 x 130 6 - 98 x 126 6 - 98 x 126 6 - 98 x 126 6 - 98 x 126
bore x stroke (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (4.25 x 5.12) (4.25 x 5.12) (3.86 x 4.96) (3.86 x 4.96) (3.86 x 4.96) (3.86 x 4.96)
Piston displacement ltr (cu.in) 6.06 (370) 6.06 (370) 6.06 (370) 6.06 (370) 4.80 (293) 4.80 (293) 5.70 (348) 5.70 (348) 5.70 (348) 5.70 (348)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 260 (69) 260 (69) 260 (69) 260 (69) 230 (61) 230 (61) 243 (64) 243 (64) 399 (105) 399 (105)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 331 (4710) 331 (4710) 331 (4710) 331 (4710)
Travel 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220) 367 (5220)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 3 3 3 3 2 2 2 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, disc
Fuel tank refill capacity ltr (USgal) 247 (65) 247 (65) 264 (70) 264 (70) 250 (66) 250 (66) 250 (66) 250 (66) 250 (66) 250 (66)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 4320 (14' 2") INA 4320 (14' 2") INA 4500 (14' 9") 4700 (15' 5") 5000 (16' 5") 5100 (16' 5") 5200 (17' 1") 5300 (17' 5")
Type One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2650 ( 8' 8") 2650 ( 8' 8") 2160 ( 7' 1") 2160 ( 7' 1") 2450 ( 8' 0") 2450 ( 8' 0") 2450 ( 8' 0") 2450 ( 8' 0") 2450 ( 8' 0") 2450 ( 8' 0")
• Bucket capa. (SAE) m3 (cu.yd) INA INA 0.82 (1.07) 0.82 (1.07) 0.58 (0.76) 0.58 (0.76) 0.75 (0.98) 0.75 (0.98) 0.83 (1.09) 0.83 (1.09)
• Tires size x No.: Front 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
Rear 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
• Outrigger Front and rear outrigger Front and rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. PRE.VERSION 03/2007 PRE.VERSION 03/2007 1705M 3K 0106B 1705M 3K 0106B 21C1002832,2008,08 21C1002832,2008.08 22B 100 2831 04/07 22B 100 2831 04/07 22B 100 2690 04/07 21A1002830,2006,12
*2: At power max.

5-13
PW200/PW220 (1/5)
Item Manufacturer KOMATSU KOMATSU KOMATSU KOMATSU CASE CASE CASE CASE CATERPILLAR CATERPILLAR
Model PW200-7 PW200-7 PW220-7 PW220-7 WX210-2 WX210-2 WX240-2 WX240-2 M322D M322D
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 129 (173)/1800 129 (173)/1800
ISO 9249/SAE J1349: Net kW (HP)/rpm 125 (168)/2000 125 (168)/2000 125 (168)/2000 125 (168)/2000 129 (173)/2000 129 (173)/2000 129 (173)/2000 129 (173)/2000 123 (165)/1800 123 (165)/1800
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.48 to 1.58 0.48 to 1.58 0.48 to 1.68 0.48 to 1.68 0.41 to 1.25 0.41 to 1.25 0.475 to 1.43 0.475 to 1.43 0.54 to 1.57 0.54 to 1.57
(0.62 to 2.07) (0.62 to 2.07) (0.62 to 2.20) (0.62 to 2.20) (0.54 to 1.64) (0.54 to 1.64) (0.62 to 1.87) (0.62 to 1.87) (0.70 to 2.05) (0.70 to 2.05)
CECE heaped

OPERATING WEIGHT: * kg (lb) 20860 (45,990) 21540 (48,980) 22390 (49,360) 23050 (50,820) 19700 (43,430) 20350 (44,860) 20600 (45,410) 21300 (46,960) 20700 (45,640) 21200 (46,740)
PERFORMANCE:
Swing speed rpm 12.4 12.4 12.4 12.4 9.7 9.7 9.5 9.5 9.0 9.0
Max. travel speed (forward) km/h (MPH) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7) 35.0 (21.7) 30.0 (18.6) 30.0 (18.6) 25.0 (15.5) 25.0 (15.5) 25.0 (16.0) 25.0 (16.0)
Gradeability (% slope) % INA INA INA INA INA INA INA INA 60 60
Arm crowd force * kg (lb) 13000 (28,660)*2 13000 (28,660)*2 13000 (28,660)*2 13000 (28,660)*2 11110 (24,490)*2 11110 (24,490)*2 12240 (26,980)*2 12240 (26,980)*2 11630 (25,630) 11630 (25,630)
Bucket digging force * kg (lb) 17950 (39,570)*2 17950 (39,570)*2 17950 (39,570)*2 17950 (39,570)*2 13660 (30,110)*2 13660 (30,110)*2 14890 (32,830)*2 14890 (32,830)*2 14270 (31,470) 14270 (31,470)
Min. turning radius, mm (ft.in) 6850 (22' 6") 6850 (22' 6") 7050 (23' 2") 7050 (23' 2") INA INA INA INA 6800 (22' 4") 6800 (22' 4")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 9883 (32' 5") 9842 (32' 3") 9883 (32' 5") 9842 (32' 3") 10000 (32'10") 10100 (33' 6") 10200 (33' 6") 10200 (33' 6") 9540 (31' 4") 10620 (34'11")
Max. dumping height * 7057 (23' 2") 6982 (22'11") 7057 (23' 2") 6982 (22'11") 7200 (23' 7") 7400 (24' 3") 7000 (23' 0") 7400 (24' 3") 6230 (20' 5") 7170 (23' 7")
Max. digging depth * 5402 (17' 9") 5785 (19' 0") 5402 (17' 9") 5785 (19' 0") 5900 (19' 4") 6000 (19' 8") 6100 (20' 0") 6000 (19' 8") 6070 (19'11") 6280 (20' 7")
Max. vertical wall * 4745 (15' 7") 4666 (15' 4") 4745 (15' 7") 4666 (15' 4") 3500 (11' 6") 3800 (12' 6") 4000 (13' 1") 4300 (14' 1") 4870 (15' 8") 4450 (14' 7")
digging depth
Max. digging reach * 9438 (31' 0") 9144 (30' 0") 9438 (31' 0") 9144 (30' 0") 9600 (31' 6") 9400 (30'10") 9800 (32' 2") 9500 (31' 2") 9930 (32' 7") 9830 (32' 3")
at ground level
Min. swing radius * 3201 (10' 6") 3121 (10' 3") 3201 (10' 6") 3121 (10' 3") 3200 (10' 6") 3100 (10' 2") 2900 ( 9' 6") 3100 (10' 2") INA INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 9659 (31' 8") 9470 (31' 1") 9659 (31' 8") 9370 (30' 9") 9675 (31' 9") 9435 (30'11") 9680 (31' 9") 9430 (30'11") 9640 (31' 8") 9440 (31' 0")
Overall width * 2540 ( 8' 4") 2540 ( 8' 4") 2785 ( 9' 1") 2785 ( 9' 1") 2540 ( 8' 4") 2540 ( 8' 4") 2740 ( 9' 0") 2740 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0")
Overall height * 3234 (10' 7") 3234 (10' 7") 3248 (10' 8") 3248 (10' 8") 3197 (10' 6") 3155 (10' 4") 3183 (10' 5") 3155 (10' 4") 3250 (10' 8") 3230 (10' 7")
Ground clearance 330 ( 1' 1") 330 ( 1' 1") 345 ( 1' 2") 345 ( 1' 2") 370 ( 1' 3") 370 ( 1' 3") 370 ( 1' 3") 370 ( 1' 3") 325 ( 1' 1") 325 ( 1' 1")
Tail swing radius 2700 ( 8'10") 2700 ( 8'10") 2700 ( 8'10") 2700 ( 8'10") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0")
Wheelbase 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0")
Tread: Front 1915 ( 6' 3") 1915 ( 6' 3") 2125 ( 7' 0") 2125 ( 7' 0") 1890 ( 6' 2") 1890 ( 6' 2") 2100 ( 6'11") 2100 ( 6'11") INA INA
Rear 1915 ( 6' 3") 1915 ( 6' 3") 2125 ( 7' 0") 2125 ( 7' 0") 1890 ( 6' 2") 1890 ( 6' 2") 2100 ( 6'11") 2100 ( 6'11") INA INA
ENGINE:
Model Komatsu Komatsu Komatsu Komatsu Case Case Case Case Caterpillar Caterpillar
SAA6D107E-2 SAA6D107E-2 SAA6D107E-2 SAA6D107E-2 667TA/MEE 667TA/MEE 667TA/MEE 667TA/MEE C6.6 ACERT C6.6 ACERT
No. of cylinders - mm (in) 6 - 107 x 124 6 - 107 x 124 6 - 107 x 124 6 - 107 x 124 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132 6 - 105 x 127 6 - 105 x 127
bore x stroke (4.21 x 4.88) (4.21 x 4.88) (4.21 x 4.88) (4.21 x 4.88) (4.09 x 5.20) (4.09 x 5.20) (4.09 x 5.20) (4.09 x 5.20) (4.13 x 5.00) (4.13 x 5.00)
Piston displacement ltr (cu.in) 6.69 (408) 6.69 (408) 6.69 (408) 6.69 (408) 6.7 (409) 6.7 (409) 6.7 (409) 6.7 (409) 6.6 (403) 6.6 (403)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 437 (115) 437 (115) 437 (115) 437 (115) 520 (137) 520 (137) 553 (146) 553 (146) 350 (92) 350 (92)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 387 (5500) 387 (5500) 387 (5500) 387 (5500) 377 (5360) 377 (5360) 377 (5360) 377 (5360) 357 (5076) 357 (5076)
Travel 387 (5500) 387 (5500) 387 (5500) 387 (5500) 377 (5360) 377 (5360) 377 (5360) 377 (5360) 357 (5076) 357 (5076)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Automatic Automatic Automatic Automatic Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 3 3 3 3 2 2 2 2 2 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc INA INA
Fuel tank refill capacity ltr (USgal) 370 (98) 370 (98) 370 (98) 370 (98) 325 (86) 325 (86) 325 (86) 325 (86) 385 (102) 385 (102)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 5700 (18' 8") 5400 (17' 9") 5700 (18' 8") 5400 (17' 9") 5600 (18' 4") 5400 (17' 9") 5600 (18' 4") 5500 (18' 1") 5050 (16' 7") 5440 (17'10")
Type One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2400 ( 7'10") 2400 ( 7'10") 2400 ( 7'10") 2400 ( 7'10") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2600 ( 8' 6") 2500 ( 8' 2") 2500 ( 8' 2")
• Bucket capa. (SAE) m3 (cu.yd) 0.80 (1.05) 0.80 (1.05) 1.00 (1.31) 0.80 (1.05) 0.80 (1.05) 0.80 (1.05) 1.06 (1.39) 1.06 (1.39) INA INA
• Tires size x No.: Front 10.00-24-14PR x 4 10.00-24-14PR x 4 11.00-20-14PR x 4 11.00-20-14PR x 4 18-22.5XF x 2 18-22.5XF x 2 18-22.5XF x 2 18-22.5XF x 2 11.00-20 x 4 11.00-20 x 4
Rear 10.00-24-14PR x 4 10.00-24-14PR x 4 11.00-20-14PR x 4 11.00-20-14PR x 4 18-22.5XF x 2 18-22.5XF x 2 18-22.5XF x 2 18-22.5XF x 2 11.00-20 x 4 11.00-20 x 4
• Outrigger Front outrigger Front outrigger Front outrigger Front outrigger Front outrigger Front outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. VESS001800 10/2007 VESS001800 10/2007 VESS001900 10/2007 VESS001900 10/2007 26061066GB 04/08 26061066GB 04/08 26061067GB 03/08 26061067GB 03/08 AEHQ5757-01 (3-07) AEHQ5757-01 (3-07)
*2: At power max.

5-14
PW200/PW220 (2/5)
Item Manufacturer DOOSAN DOOSAN DOOSAN DOOSAN HITACHI HITACHI HITACHI HITACHI HITACHI HYUNDAI
Model SOLAR210WV SOLAR210WV DX210W DX210W ZAXIS 190W-3*1 ZAXIS 190W-3*1 ZAXIS 210W-3 ZAXIS 210W-3*1 ZAXIS 210W-3*1 200W-7A
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 122 (164)/1900
ISO 9249/SAE J1349: Net kW (HP)/rpm 115 (154)/2200 115 (154)/2200 121 (162)/2000 121 (162)/2000 122 (164)/2000 122 (164)/2000 122 (164)/2000 122 (164)/2000 122 (164)/2000 114 (153)/1900
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.50 to 1.18 0.50 to 1.18 0.51 to 1.28 0.51 to 1.28 0.51 to 1.20 0.51 to 1.20 0.51 to 1.10 0.51 to 1.20 0.51 to 1.20 0.51 to 1.34
(0.65 to 1.54) (0.65 to 1.54) (0.67 to 1.67) (0.67 to 1.67) (0.67 to 1.57) (0.67 to 1.57) (0.67 to 1.44) (0.67 to 1.57) (0.67 to 1.57) (1.05 to 1.75)
CECE heaped 0.45 to 1.10 0.45 to 1.10 0.47 to 1.10 0.47 to 1.10 0.45 to 1.00 0.45 to 1.00 0.45 to 0.90 0.45 to 1.00 0.45 to 1.00 0.45 to 1.15
(0.59 to 1.44) (0.59 to 1.44) (0.61 to 1.44) (0.61 to 1.44) (0.59 to 1.31) (0.59 to 1.31) (1.18 to 1.31) (0.59 to 1.31) (0.59 to 1.31) (0.59 to 1.50)
OPERATING WEIGHT: * kg (lb) 19800 (43,650) 20550 (45,300) 20710 (45,660) 20420 (45,020) 19400 (42,770) 20100 (44,310) 20800 (45,860) 20800 (45,860) 21700 (47,840) 20500 (45,200)
PERFORMANCE:
Swing speed rpm 12.2 12.2 11.0 11.0 12.2 12.2 12.2 12.2 12.2 11.0
Max. travel speed (forward) km/h (MPH) 35.0 (21.7) 35.0 (21.7) 36.0 (22.4) 36.0 (22.4) 35.0 (21.7) 35.0 (21.7) 27.5 (17.1) 27.5 (17.1) 27.5 (17.1) 33.0 (20.5)
Gradeability (% slope) % 59.4 59.4 60 60 67 67 70 70 70 61
Arm crowd force * kg (lb) 10120 (22,310)*2 12300 (27,120)*2 10200 (22,490) 11900 (26,240) 8780 (19,360) 9390 (20,700) 11100 (24,470)*2 11100 (24,470)*2 12540 (27,650)*2 10300 (22,710)
Bucket digging force * kg (lb) 13100 (28,880)*2 13100 (28,880)*2 15200 (33,510) 15200 (33,510) 11800 (26,010) 11800 (26,010) 15400 (33,950)*2 15400 (33,950)*2 15400 (33,950)*2 15500 (34,170)
Min. turning radius, mm (ft.in) INA INA INA INA 6800 (22' 4") 6800 (22' 4") 7200 (23' 7") 7200 (23' 7") 7200 (23' 7") 6690 (21'11")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 9865 (32' 4") 10325 (33'10") 10050 (33' 0") 10560 (34' 8") 9250 (30' 4") 9780 (32' 1") 10190 (33' 5") 10190 (33' 5") 10240 (33' 7") 9870 (32' 5")
Max. dumping height * 6825 (22' 5") 7370 (24' 2") 7250 (23' 9") 7620 (25' 0") 6450 (21' 2") 6870 (22' 6") 7350 (24' 1") 7350 (24' 1") 7300 (24' 0") 7050 (23' 2")
Max. digging depth * 6560 (21' 6") 5555 (18' 3") 6255 (20' 6") 5625 (18' 5") 5830 (19' 2") 5640 (18' 6") 6290 (20' 8") 6290 (20' 8") 5590 (18' 4") 6380 (20'11")
Max. vertical wall * 5870 (19' 3") INA INA INA 5260 (17' 3") 4800 (15' 9") 5600 (18' 4") 5600 (18' 4") 4820 (15'10") 5810 (19' 1")
digging depth
Max. digging reach * 9695 (31'10") 8795 (28'10") INA INA 9400 (30'10") 9060 (29' 9") 9960 (32' 8") 9960 (32' 8") 9270 (30' 5") 9690 (31' 9")
at ground level
Min. swing radius * INA INA 3440 (11' 3") 3185 (10' 5") 3480 (11' 5") 2970 ( 9' 9") 3430 (11' 3") 3430 (11' 3") 3500 (11' 6") 3540 (11' 7")
of implement
DIMENSIONS: mm (ft.in)
Overall length * 9535 (31' 3") 7030 (23' 1") 9400 (30'10") 9210 (30' 3") 8980 (29' 6") 8790 (28'10") 9700 (31'10") 9700 (31'10") 9370 (30' 9") 9490 (31' 2")
Overall width * 2495 ( 8' 2") 2495 ( 8' 2") 2500 ( 8' 2") 2500 ( 8' 2") 2550 ( 8' 4") 2550 ( 8' 4") 2530 ( 8' 4") 2530 ( 8' 4") 2530 ( 8' 4") 2530 ( 8' 4")
Overall height * 3790 (12' 5") 3990 (13' 1") 3490 (11' 5") 3140 (10' 4") 3130 (10' 3") 3150 (10' 4") 3170 (10' 5") 3170 (10' 5") 3250 (10' 8") 3100 (10' 2")
Ground clearance 340 ( 1' 1") 340 ( 1' 1") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 325 ( 1' 1") 325 ( 1' 1") 325 ( 1' 1") 345 ( 1' 2")
Tail swing radius 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2320 ( 7' 7") 2320 ( 7' 7") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2800 ( 9' 2")
Wheelbase 2850 ( 9' 4") 2850 ( 9' 4") 2850 ( 9' 4") 2850 ( 9' 4") 2650 ( 8' 8") 2650 ( 8' 8") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2800 ( 9' 2")
Tread: Front 1875 ( 6' 2") 1875 ( 6' 2") 1915 ( 6' 3") 1915 ( 6' 3") INA INA INA INA INA 1875 ( 6' 2")
Rear 1875 ( 6' 2") 1875 ( 6' 2") 1915 ( 6' 3") 1915 ( 6' 3") INA INA INA INA INA 1875 ( 6' 2")
ENGINE:
Model Doosan Doosan Doosan Doosan Isuzu Isuzu Isuzu Isuzu Isuzu Cummins
DB58TIS DB58TIS DL06 DL06 AI-4HK1X AI-4HK1X AI-4HK1X AI-4HK1X AI-4HK1X QSB6.7
No. of cylinders - mm (in) 6 - 102 x 118 6 - 102 x 118 6 - 100 x 125 6 - 100 x 125 4 - 115 x 125 4 - 115 x 125 4 - 115 x 125 4 - 115 x 125 4 - 115 x 125 6 - 107 x 124
bore x stroke (4.02 x 4.65) (4.02 x 4.65) (3.94 x 4.92) (3.94 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.21 x 4.88)
Piston displacement ltr (cu.in) 5.785 (353) 5.785 (353) 5.89 (359) 5.89 (359) 5.193 (317) 5.193 (317) 5.193 (317) 5.193 (317) 5.193 (317) 6.7 (409)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 478 (126) 478 (126) 463 (122) 463 (122) 378 (100) 378 (100) 384 (101) 384 (101) 384 (101) 444 (117)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 330 (4690)
Travel 320 (4550) 320 (4550) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 360 (5120)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 3 3 2 2 2 2 2 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, multiple-disc

Parking brake Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc INA INA INA INA INA Wet, multiple-disc
Fuel tank refill capacity ltr (USgal) 350 (92) 350 (92) 350 (92) 350 (92) 290 (77) 290 (77) 355 (94) 355 (94) 355 (94) 310 (82)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 5700 (18' 8") 5670 (18' 7") 5600 (18' 4") 5400 (17' 9") INA INA INA INA INA 5650 (18' 6")
Type One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom One-piece boom Two-piece boom One-piece boom
• Arm length mm (ft.in) 2900 ( 9' 6") 2400 ( 7' 9") 3000 ( 9'10") 2400 ( 7'10") 2710 ( 8'11") 2400 ( 7'10") 2910 ( 9' 7") 2910 ( 9' 7") 2410 ( 7'10") 2900 ( 9' 6")
• Bucket capa. (SAE) m3 (cu.yd) 0.86 (1.12) 0.86 (1.12) 0.86 (1.13) 0.86 (1.13) 0.70 (0.92) 0.70 (0.92) 0.80 (1.05) 0.80 (1.05) 0.80 (1.05) 0.80 (1.05)
• Tires size x No.: Front 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-14PR x 4
Rear 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-16PR x 4 10.00-20-14PR x 4
• Outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Front outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. PBP S210W500 0507 PBP S210W500 0507 PBP D210W000 0702 PBP D210W000 0702 KS-EN041EU KS-EN041EU KS-EN042 07.06 KS-EN042EU KS-EN042EU EN-2007.07 Rev0
*1: Machine for Europe
*2: At power max.

5-15
PW200/PW220 (3/5)
Item Manufacturer JCB JCB JOHN DEERE JOHN DEERE JOHN DEERE JOHN DEERE LIEBHERR LIEBHERR NEW HOLLAND NEW HOLLAND
Model JS200W JS200W 190D W 190D W 220D W 220D W A914C A924C MH6.6 MH6.6
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm
ISO 9249/SAE J1349: Net kW (HP)/rpm 128 (172)/2000 128 (172)/2000 119 (159)/2000 119 (159)/2000 119 (159)/2000 119 (159)/2000 120 (163)/1800 135 (184)/1800 129 (173)/2000 129 (173)/2000
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.40 to 1.19 0.40 to 1.19 0.40 to 1.09 0.40 to 1.09 0.40 to 1.09 0.59 to 1.60 0.35 to 1.40 0.35 to 1.40 0.52 to 1.31 0.52 to 1.31
(0.52 to 1.56) (0.52 to 1.56) (0.52 to 1.43) (0.52 to 1.06) (0.52 to 1.43) (0.45 to 1.22) (0.46 to 1.83) (0.46 to 1.83) (0.68 to 1.71) (0.68 to 1.71)
CECE heaped 0.45 to 1.09 0.45 to 1.09
(0.59 to 1.43) (0.59 to 1.43)
OPERATING WEIGHT: * kg (lb) 22590 (49,810) 22520 (49,650) 19600 (43,210) 20400 (44,970) 22320 (49,210) 23300 (51,370) 20550 (45,300) 23100 (50,930) 20950 (46,190) 20150 (44,420)
PERFORMANCE:
Swing speed rpm 10.0 10.0 12.2 12.2 12.2 12.2 9.0 8.0 9.5 9.5
Max. travel speed (forward) km/h (MPH) 30.0 (18.6) 30.0 (18.6) 35.0 (21.7) 35.0 (21.7) 37.5 (23.3) 37.5 (23.3) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4)
Gradeability (% slope) % INA INA 64 64 70 70 INA INA INA INA
Arm crowd force * kg (lb) 12710 (28,020)*2 12710 (28,020)*2 8380 (18,465) 8400 (18,510) 10400 (22,830) 10400 (22,830) 12500 (27,560) 12500 (27,560) 10960 (24,160)*2 10960 (24,160)*2
Bucket digging force * kg (lb) 14000 (30,870)*2 14000 (30,870)*2 10400 (22,920) 10400 (22,920) 13150 (28,900) 13150 (28,900) 16100 (35,490) 16100 (35,490) 12900 (28,440)*2 12900 (28,440)*2
Min. turning radius, mm (ft.in) 6610 (21' 8") 6610 (21' 8") INA INA INA INA INA INA 8150 (26' 9") 8150 (26' 9")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 9430 (31' 0") 9930 (32' 6") 9250 (30' 4") 9850 (32' 4") 10190 (33' 5") 10560 (34' 8") 10650 (39'11") 10650 (39'11") 10240 (33' 7") 10040 (32'11")
Max. dumping height * INA INA 6450 (21' 2") 6950 (22'10") 7350 (24' 1") 7630 (25' 0") 7500 (24' 7") 7500 (24' 7") 7335 (24' 1") 7185 (23' 7")
Max. digging depth * 5790 (18' 0") 5960 (19' 6") 5830 (19' 2") 5930 (19' 5") 6290 (20' 8") 6080 (19'11") 5950 (19' 6") 5950 (19' 6") 6030 (19' 9") 5990 (19' 8")
Max. vertical wall * 5240 (17' 2") 4200 (13' 9") 5260 (17' 3") 5260 (17' 3") 5600 (18' 4") 5250 (17' 3") INA INA 4405 (14' 5") 4390 (14' 5")
digging depth
Max. digging reach * 9310 (30' 6") 9140 (30' 0") 9400 (30'10") 9300 (30' 6") 9960 (32' 8") 9750 (32' 0") 9450 (31' 0") 9450 (31' 0") 9470 (31' 1") 9640 (31' 8")
at ground level
Min. swing radius * 3860 (12' 8") 3260 (10' 8") 3480 (11' 5") 3000 ( 9'10") 3430 (11' 3") 3600 (11'10") INA INA 3115 (10' 3") 3155 (10' 4")
of implement
DIMENSIONS: mm (ft.in)
Overall length * 9375 (30' 9") 9180 (30' 1") 8980 (29' 6") 8800 (28'10") 9700 (31'10") 9320 (30' 7") 9550 (31' 4") 9600 (31' 6") 9435 (30'11") 9675 (31' 9")
Overall width * 2530 ( 8' 4") 2530 ( 8' 4") 2540 ( 8' 4") 2540 ( 8' 4") 2730 ( 8'11") 2730 ( 8'11") 2550 ( 8' 4") 2750 ( 9' 0") 2540 ( 8' 4") 2540 ( 8' 4")
Overall height * 3250 (10' 8") 3250 (10' 8") 3130 (10' 2") 3130 (11' 7") 3170 (10' 5") 3170 (10' 5") 3200 (10' 6") 3215 (10' 7") 3160 (10' 4") 3155 (10' 4")
Ground clearance 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 350 ( 1' 2") 330 ( 1' 1") 330 ( 1' 1") 345 ( 1' 2") 360 ( 1' 2") 330 ( 1' 1") 330 ( 3' 1")
Tail swing radius 2530 ( 8' 3") 2530 ( 8' 3") 2320 ( 8' 0") 2320 ( 8' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2765 ( 9' 1") 2810 ( 9' 3") 2750 ( 9' 0") 2750 ( 9' 0")
Wheelbase 2750 ( 9' 0") 2750 ( 9' 0") 2650 ( 8' 8") 2650 ( 8' 8") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2750 ( 9' 0")
Tread: Front INA INA INA INA INA INA INA INA INA INA
Rear INA INA INA INA INA INA INA INA INA INA
ENGINE:
Model Isuzu Isuzu Isuzu Isuzu Isuzu Isuzu Liebherr Liebherr CNH CNH
4HK1X 4HK1X 4HK1X 4HK1X 4HK1X 4HK1X D934S D934L 667TA/MEE 667TA/MEE
No. of cylinders - mm (in) 4 - 115 x 125 4 - 115 x 125 4 - 115 x 125 4 - 115 x 125 4 - 115 x 125 4 - 115 x 125 4 - 122 x 136 4 - 122 x 150 6 - 104 x 132 6 - 104 x 132
bore x stroke (4.53 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.53 x 4.92) (4.80 x 5.34) (4.80 x 5.91) (4.09 x 5.20) (4.09 x 5.20)
Piston displacement ltr (cu.in) 5.19 (317) 5.19 (317) 5.19 (317) 5.19 (317) 5.19 (317) 5.19 (317) 6.4 (391) 7.0 (427) 6.7 (409) 6.7 (409)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 424 (112) 424 (112) 378 (100) 378 (100) 378 (100) 378 (100) 430 (114) 430 (114) 512 (135) 512 (135)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 350 (4880) 350 (4880) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 357 (5080) 357 (5080) 347 (4940) 347 (4940)
Travel 350 (4880) 350 (4880) 350 (4980) 350 (4980) 350 (4980) 350 (4980) 357 (5080) 357 (5080) 352 (5010) 352 (5010)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 2 2 2 2 2 2 2 2
Service brake Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, disc Wet, disc

Parking brake Wet,disc Wet,disc Wet, disc Wet, disc Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc INA INA
Fuel tank refill capacity ltr (USgal) 330 (87) 330 (87) 290 (77) 290 (77) 355 (94) 355 (94) 400 (106) 400 (106) 325 (86) 325 (86)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 5700 (18' 8") 5630 (18' 6") 5500 (15' 1") INA 5680 (18' 8") INA 3900 (12'10") 3900 (12'10") INA INA
Type One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom Two-piece boom Two-piece boom Two-piece boom One-piece boom
• Arm length mm (ft.in) 2400 ( 7'10") 2400 ( 7'10") 2710 ( 8'11") 2700 ( 8'10") 2910 ( 9' 7") 2910 ( 9' 7") 2250 ( 7' 5") 2250 ( 7' 5") 2600 ( 8' 6") 2600 ( 8' 6")
• Bucket capa. (SAE) m3 (cu.yd) INA INA 0.70 (0.92) 0.70 (0.92) 0.7 (0.92) 0.7 (0.92) 0.80 (1.05) 1.00 (1.31) 0.66 (0.86) 0.66 (0.86)
• Tires size x No.: Front 11.00-20-16PR x 4 11.00-20-16PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00 - 20 x 4 11.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
Rear 11.00-20-16PR x 4 11.00-20-16PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00-20-14PR x 4 10.00 - 20 x 4 11.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
• Outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger Rear outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier2 & EU Stage2 EPA Tier2 & EU Stage2 EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. 9999/4983 4/08 9999/4983 4/08 DKAXCW (06-09) DKAXCW (06-09) 02-11-08 02-11-08 10424660-2-07.03 10424660-2-07.03 73301424GB 07/08 73301424GB 07/08
*2: At power max.

5-16
PW200/PW220 (4/5)
Item Manufacturer NEW HOLLAND NEW HOLLAND TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS TEREX/ATLAS
Model MH8.6 MH8.6 1905M 1905M 2205M 2205M TW190 TW190 TW240 TW240
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm
ISO 9249/SAE J1349: Net kW (HP)/rpm 129 (173)/2000 129 (173)/2000 134 (182)/2000 134 (182)/2000 134 (182)/2000 134 (182)/2000 116 (155)/2000 116 (155)/2000 125 (168)/2000 125 (168)/2000
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.58 to 1.40 0.58 to 1.40 0.75 to 1.14 0.75 to 1.14 0.76 to 1.34 0.76 to 1.34 0.75 to 1.14 0.75 to 1.14 0.75 to 1.34 0.75 to 1.34
(0.76 to 1.83) (0.76 to 1.83) (0.98 to 1.49) (0.98 to 1.49) (0.99 to 1.75) (0.99 to 1.75) (0.98 to 1.49) (0.98 to 1.49) (0.98 to 1.75) (0.98 to 1.75)
CECE heaped 0.50 to 1.20 0.50 to 1.20
(0.65 to 1.57) (0.65 to 1.57)
OPERATING WEIGHT: * kg (lb) 22190 (48,920) 21410 (47,200) 17600 (38,800) 18000 (39,680) 20700 (45,640) 21000 (46,300) 18900 (41,670) 19200 (42,330) 21900 (42,280) 22200 (48,940)
PERFORMANCE:
Swing speed rpm 9.5 9.5 9.0 9.0 9.0 9.0 11.0 11.0 11.0 11.0
Max. travel speed (forward) km/h (MPH) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4) 20.0 (12.4)
Gradeability (% slope) % INA INA INA INA INA INA 55 55 70 70
Arm crowd force * kg (lb) 12460 (27,470)*2 12460 (27,470)*2 10000 (22,030) 10000 (22,030) 13050 (28,780) 12950 (28,550) 8360 (18,430) 8570 (18,890) 16420 (36,200) 12950 (28,550)
Bucket digging force * kg (lb) 16080 (35,450)*2 16080 (35,450)*2 12750 (28,100) 12750 (28,100) 16320 (35,970) 17950 (39,570) 13460 (29,670) 12030 (26,520) 17130 (37,770) 17950 (39,570)
Min. turning radius, mm (ft.in) INA INA 7500 (24' 7") 7500 (24' 7") 7500 (24' 7") 7500 (24' 7") INA INA INA INA
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 10290 (33' 9") 10085 (33' 1") 8750 (28' 9") 9850 (32' 4") 9050 (29' 8") 10950 (35'11") 9770 (32' 1") 10300 (33'10") 9300 (30' 6") 10820 (35' 2")
Max. dumping height * 7280 (23'11") 7130 (23' 5") 6000 (19' 8") INA 6400 (21' 0") 7000 (23' 0") 7060 (23' 0") 7600 (24'11") 6650 (21'10") 8150 (26' 5")
Max. digging depth * 6085 (20' 0") 6045 (19'10") 5700 (18' 8") 5350 (17' 7") 5850 (19' 2") 6250 (20' 6") 6170 (22' 0") 5800 (19' 0") 5980 (19' 7") 6020 (19' 9")
Max. vertical wall * 4200 (13' 9") 4050 (13' 3") INA INA INA INA 4650 (15' 3") 4450 (14' 7") 4800 (15' 9") 4600 (15' 1")
digging depth
Max. digging reach * 9525 (31' 3") 9695 (31'10") INA INA INA INA 10100 (33' 2") 9150 (30' 0") 9500 (31' 2") 9600 (31' 6")
at ground level
Min. swing radius * 3085 (10' 1") 3120 (10' 3") INA INA INA INA INA INA INA INA
of implement
DIMENSIONS: mm (ft.in)
Overall length * 9435 (30' 9") 9685 (31' 9") 9300 (30' 6") 9430 (30'11") 10500 (34' 5") 9940 (32' 7") 9560 (31' 4") 8950 (24' 6") 10090 (33' 1") 9880 (32' 5")
Overall width * 2540 ( 8' 4") 2540 ( 8' 4") 2500 ( 8' 2") 2500 ( 8' 2") 2750 ( 9' 0") 2750 ( 9' 0") 2490 ( 8' 2") 2490 ( 8' 2") 2800 ( 9' 2") 2800 ( 9' 2")
Overall height * 3120 (10' 3") 3120 (10' 3") 3200 (10' 6") 3200 (10' 6") 3200 (10' 6") 3200 (10' 6") 3150 (10' 4") 3150 (10' 4") 3200 (10' 6") 3160 (10' 4")
Ground clearance 330 ( 1' 1") 330 ( 1' 1") INA INA INA INA 420 ( 1' 5") 420 ( 1' 5") 420 ( 1' 5") 420 ( 1' 5")
Tail swing radius 2750 ( 9' 0") 2750 ( 9' 0") 2450 ( 8' 0") 2450 ( 8' 0") 2750 ( 9' 0") 2750 ( 9' 0") 2600 ( 8' 6") 2600 ( 8' 6") 2800 ( 9' 2") 2800 ( 9' 2")
Wheelbase 2750 ( 9' 0") 2750 ( 9' 0") 2600 ( 8' 6") 2600 ( 8' 6") 2700 ( 8'10") 2700 ( 8'10") 2600 ( 8' 6") 2600 ( 8' 6") 3200 (10' 6") 3200 (10' 6")
Tread: Front INA INA 1870 ( 6' 2") 1870 ( 6' 2") 2150 ( 7' 1") 2150 ( 7' 1") INA INA INA INA
Rear INA INA 1870 ( 6' 2") 1870 ( 6' 2") 2150 ( 7' 1") 2150 ( 7' 1") INA INA INA INA
ENGINE:
Model CNH CNH Deutz Deutz Deutz Deutz Cummins Cummins Cummins Cummins
667TA/MEE 667TA/MEE BF6M2012C BF6M2012C BF6M2012C BF6M2012C QSB6.7 QSB6.7 QSB6.7 QSB6.7
No. of cylinders - mm (in) 6 - 104 x 132 6 - 104 x 132 6 - 101 x 126 6 - 101 x 126 6 - 101 x 126 6 - 101 x 126 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132 6 - 104 x 132
bore x stroke (4.09 x 5.20) (4.09 x 5.20) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (3.98 x 4.96) (4.1 x 5.2) (4.1 x 5.2) (4.1 x 5.2) (4.1 x 5.2)
Piston displacement ltr (cu.in) 6.70 (409) 6.70 (409) 6.06 (370) 6.06 (370) 6.06 (370) 6.06 (370) 6.70 (409) 6.70 (409) 6.70 (409) 6.70 (409)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 560 (148) 560 (148) 460 (122) 460 (122) 460 (122) 460 (122) 400 (106) 400 (106) 400 (106) 400 (106)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 347 (4940) 347 (4940) 387 (5510) 387 (5510) 387 (5510) 387 (5510) 347 (4940) 347 (4940) 347 (4940) 347 (4940)
Travel 352 (5010) 352 (5010) 387 (5510) 387 (5510) 387 (5510) 387 (5510) 347 (4940) 347 (4940) 347 (4940) 347 (4940)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4 4x4
Hydraulic motor Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity Variable capacity
Transmission Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift Powershift
No. of speeds (forward) 2 2 3 3 3 3 2 2 2 2
Service brake Wet, disc Wet, disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc

Parking brake INA INA Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc Wet, multiple-disc
Fuel tank refill capacity ltr (USgal) 325 (86) 325 (86) 400 (106) 400 (106) 400 (106) 400 (106) 389 (103) 389 (103) 389 (103) 389 (103)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) INA INA 5300 (17' 5") INA 5790 (19' 0") 4190 (13' 9") 5680 (18' 8") INA 5950 (19' 6") 6180 (20' 3")
Type Two-piece boom One-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom One-piece boom Two-piece boom
• Arm length mm (ft.in) 2600 ( 8' 6") 2600 ( 8' 6") 2160 ( 7' 1") 2160 ( 7' 1") 2210 ( 7' 3") 2210 ( 7' 3") 3200 (10' 6") 2650 ( 8' 8") 2500 ( 8' 2") 2150 ( 7' 1")
• Bucket capa. (SAE) m3 (cu.yd) INA INA INA INA 1.14 (1.49) 1.14 (1.49) INA INA INA INA
• Tires size x No.: Front 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
Rear 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4 10.00 - 20 x 4
• Outrigger Rear outrigger Rear outrigger Front outrigger Front outrigger
• Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. 7330/425 GB 07/08 7330/425 GB 07/08 1905M 3K 0106B 1905M 3K 0106B 2205M 3K 0106C 2205M 3K 0106C PRE.VERSION 03/2007 PRE.VERSION 03/2007 PRE.VERSION 03/2007 PRE.VERSION 03/2007
*2: At power max.

5-17
PW200/PW220 (5/5)
Item Manufacturer VOLVO VOLVO
Model EW210C EW210C
HORSEPOWER:
SAE J1995: Gross kW (HP)/rpm 127 (170)/1900 127 (170)/1900
ISO 9249/SAE J1349: Net kW (HP)/rpm 120 (161)/1900 120 (161)/1900
BUCKET CAPACITY RANGE: m3 (cu.yd)
SAE heaped 0.83 to 1.13 0.83 to 1.13
(1.09 to 1.48) (1.09 to 1.48)
CECE heaped

OPERATING WEIGHT: * kg (lb) 21160 (46,650) 21860 (48,190)

PERFORMANCE:
Swing speed rpm 9.0 9.0
Max. travel speed (forward) km/h (MPH) 30.0 (18.6) 30.0 (18.6)
Gradeability (% slope) % INA INA
Arm crowd force * kg (lb) 12670 (27,920) 12670 (27,920)
Bucket digging force * kg (lb) 14550 (32,080) 14550 (32,080)
Min. turning radius, mm (ft.in) 8150 (26' 9") 8150 (26' 9")
center of outside tire
WORKING RANGE: mm (ft.in)
Max. digging height * 9370 (30' 9") 10670 (35' 0")
Max. dumping height * 6570 (21' 7") 7530 (24' 8")
Max. digging depth * 6180 (20' 3") 6050 (19'10")
Max. vertical wall * 4390 (14' 5") 4580 (15' 0")
digging depth
Max. digging reach * 9450 (31' 1") 9450 (31' 0")
at ground level
Min. swing radius * 3590 (11' 9") 2630 ( 8' 8")
of implement
DIMENSIONS: mm (ft.in)
Overall length * 9355 (30' 8") 9280 (30' 5")
Overall width * 2510 ( 8' 3") 2510 ( 8' 3")
Overall height * 3170 (10' 5") 3170 (10' 5")
Ground clearance 380 ( 1' 3") 380 ( 1' 3")
Tail swing radius 2650 ( 8' 8") 2650 ( 8' 8")
Wheelbase 2750 ( 9' 0") 2750 ( 9' 0")
Tread: Front 1910 ( 6' 3") 1910 ( 6' 3")
Rear 1910 ( 6' 3") 1910 ( 6' 3")
ENGINE:
Model Volvo Volvo
D6E EEE3 D6E EEE3
No. of cylinders - mm (in) 6 - 98 x 126 6 - 98 x 126
bore x stroke (3.86 x 4.96) (3.86 x 4.96)
Piston displacement ltr (cu.in) 5.70 (348) 5.70 (348)
HYDRAULIC SYSTEM:
Hydraulic pump Variable capacity Variable capacity

Max. flow (excl. sub pump) ltr/min 399 (105) 399 (105)
(USgal)/min
Relief valve setting: kg/cm2 (PSI)
Implement 331 (4710) 331 (4710)
Travel 367 (5220) 367 (5220)
POWER TRAIN:
Drive type Hydrostatic drive Hydrostatic drive
No. of drive wheels 4x4 4x4
Hydraulic motor Variable capacity Variable capacity
Transmission Powershift Powershift
No. of speeds (forward) 2 2
Service brake Wet, multiple-disc Wet, multiple-disc

Parking brake Wet,disc Wet,disc

Fuel tank refill capacity ltr (USgal) 335 (88.5) 335 (88.5)
*) SPEC. CONDITIONS:
• Boom: Length mm (ft.in) 5600 (18' 4") 5500 (18' 0")
Type One-piece boom Two-piece boom
• Arm length mm (ft.in) 2450 ( 8' 0") 2450 ( 8' 0")
• Bucket capa. (SAE) m3 (cu.yd) 0.83 (1.09) 0.83 (1.09)
• Tires size x No.: Front 10.00 - 20 x 4 10.00 - 20 x 4
Rear 10.00 - 20 x 4 10.00 - 20 x 4
• Outrigger Rear Outrigger Rear Outrigger
• Dozer blade Dozer blade Dozer blade
Emission regulations EPA Tier3 & EU Stage3A EPA Tier3 & EU Stage3A
Refer No. 22A 100 4437,2008- 03 22A 100 4437,2008- 03

5-18
