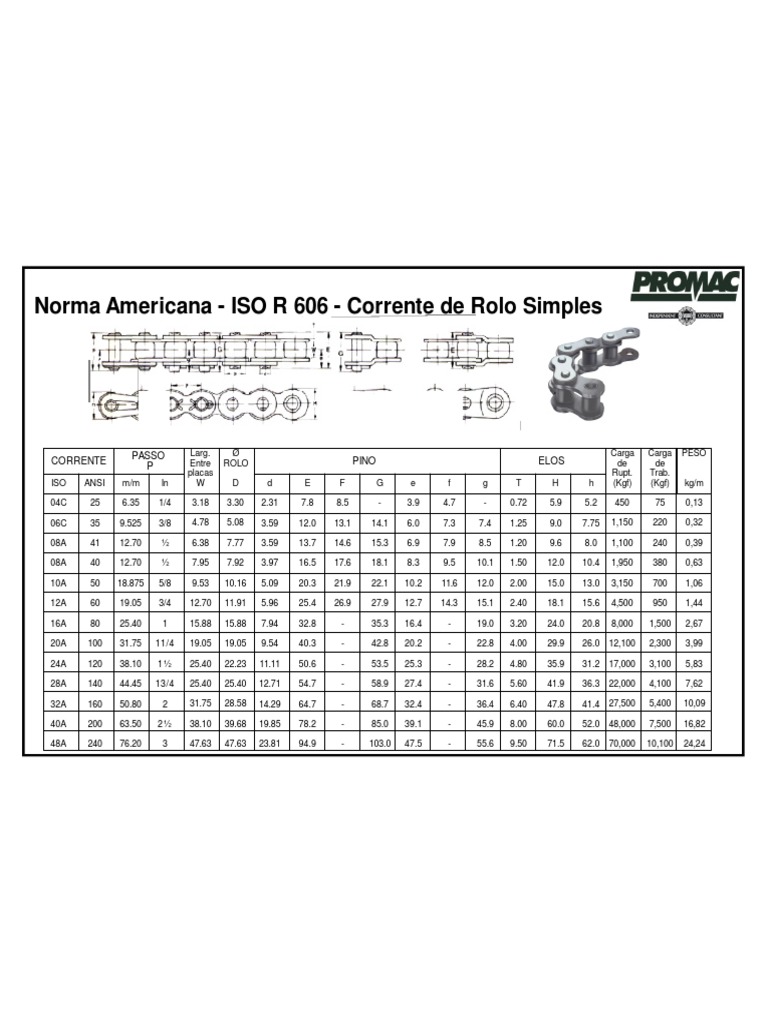

Norma Americana - ISO R 606 - Corrente de Rolo Simples

PASSO Larg. Ø Carga Carga PESO

CORRENTE Entre ROLO PINO ELOS de de
P
placas Rupt. Trab.
ISO ANSI m/m In W D d E F G e f g T H h (Kgf) (Kgf) kg/m

04C 25 6.35 1/4 3.18 3.30 2.31 7.8 8.5 - 3.9 4.7 - 0.72 5.9 5.2 450 75 0,13

06C 35 9.525 3/8 4.78 5.08 3.59 12.0 13.1 14.1 6.0 7.3 7.4 1.25 9.0 7.75 1,150 220 0,32

08A 41 12.70 ½ 6.38 7.77 3.59 13.7 14.6 15.3 6.9 7.9 8.5 1.20 9.6 8.0 1,100 240 0,39

08A 40 12.70 ½ 7.95 7.92 3.97 16.5 17.6 18.1 8.3 9.5 10.1 1.50 12.0 10.4 1,950 380 0,63

10A 50 18.875 5/8 9.53 10.16 5.09 20.3 21.9 22.1 10.2 11.6 12.0 2.00 15.0 13.0 3,150 700 1,06

12A 60 19.05 3/4 12.70 11.91 5.96 25.4 26.9 27.9 12.7 14.3 15.1 2.40 18.1 15.6 4,500 950 1,44

16A 80 25.40 1 15.88 15.88 7.94 32.8 - 35.3 16.4 - 19.0 3.20 24.0 20.8 8,000 1,500 2,67

20A 100 31.75 11/4 19.05 19.05 9.54 40.3 - 42.8 20.2 - 22.8 4.00 29.9 26.0 12,100 2,300 3,99

24A 120 38.10 1½ 25.40 22.23 11.11 50.6 - 53.5 25.3 - 28.2 4.80 35.9 31.2 17,000 3,100 5,83

28A 140 44.45 13/4 25.40 25.40 12.71 54.7 - 58.9 27.4 - 31.6 5.60 41.9 36.3 22,000 4,100 7,62

32A 160 50.80 2 31.75 28.58 14.29 64.7 - 68.7 32.4 - 36.4 6.40 47.8 41.4 27,500 5,400 10,09

40A 200 63.50 2½ 38.10 39.68 19.85 78.2 - 85.0 39.1 - 45.9 8.00 60.0 52.0 48,000 7,500 16,82

48A 240 76.20 3 47.63 47.63 23.81 94.9 - 103.0 47.5 - 55.6 9.50 71.5 62.0 70,000 10,100 24,24
