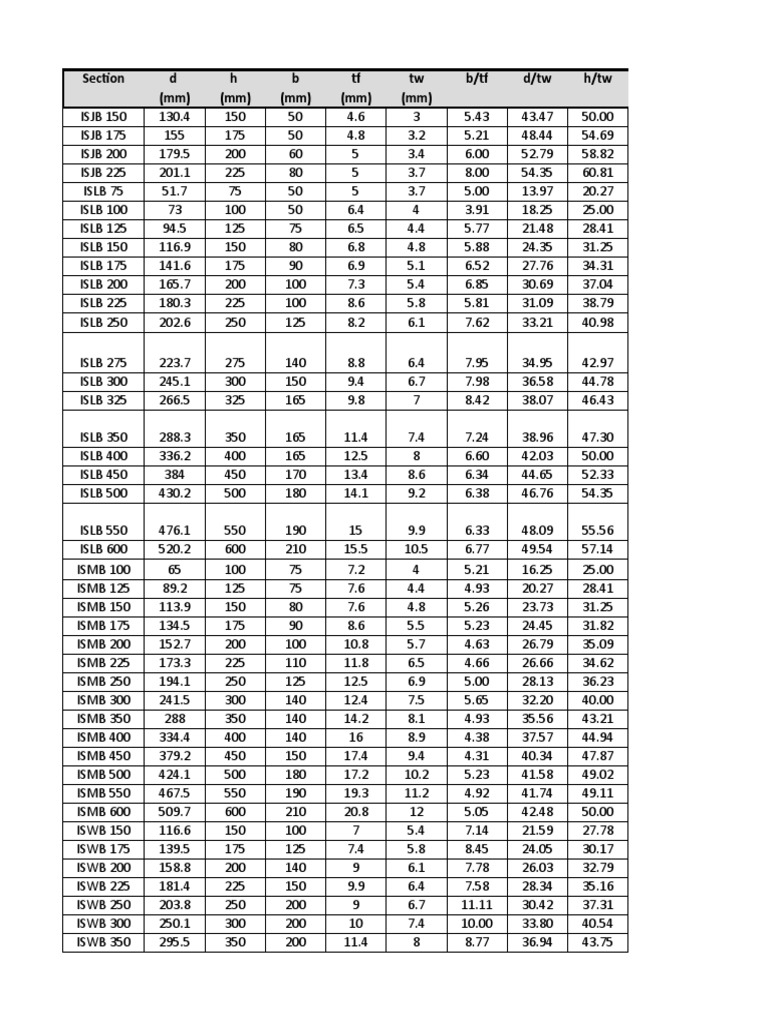

Section d h b tf tw b/tf d/tw h/tw

(mm) (mm) (mm) (mm) (mm)

ISJB 150 130.4 150 50 4.6 3 5.43 43.47 50.00
ISJB 175 155 175 50 4.8 3.2 5.21 48.44 54.69
ISJB 200 179.5 200 60 5 3.4 6.00 52.79 58.82
ISJB 225 201.1 225 80 5 3.7 8.00 54.35 60.81
ISLB 75 51.7 75 50 5 3.7 5.00 13.97 20.27
ISLB 100 73 100 50 6.4 4 3.91 18.25 25.00
ISLB 125 94.5 125 75 6.5 4.4 5.77 21.48 28.41
ISLB 150 116.9 150 80 6.8 4.8 5.88 24.35 31.25
ISLB 175 141.6 175 90 6.9 5.1 6.52 27.76 34.31
ISLB 200 165.7 200 100 7.3 5.4 6.85 30.69 37.04
ISLB 225 180.3 225 100 8.6 5.8 5.81 31.09 38.79
ISLB 250 202.6 250 125 8.2 6.1 7.62 33.21 40.98

ISLB 275 223.7 275 140 8.8 6.4 7.95 34.95 42.97
ISLB 300 245.1 300 150 9.4 6.7 7.98 36.58 44.78
ISLB 325 266.5 325 165 9.8 7 8.42 38.07 46.43

ISLB 350 288.3 350 165 11.4 7.4 7.24 38.96 47.30
ISLB 400 336.2 400 165 12.5 8 6.60 42.03 50.00
ISLB 450 384 450 170 13.4 8.6 6.34 44.65 52.33
ISLB 500 430.2 500 180 14.1 9.2 6.38 46.76 54.35

ISLB 550 476.1 550 190 15 9.9 6.33 48.09 55.56

ISLB 600 520.2 600 210 15.5 10.5 6.77 49.54 57.14
ISMB 100 65 100 75 7.2 4 5.21 16.25 25.00
ISMB 125 89.2 125 75 7.6 4.4 4.93 20.27 28.41
ISMB 150 113.9 150 80 7.6 4.8 5.26 23.73 31.25
ISMB 175 134.5 175 90 8.6 5.5 5.23 24.45 31.82
ISMB 200 152.7 200 100 10.8 5.7 4.63 26.79 35.09
ISMB 225 173.3 225 110 11.8 6.5 4.66 26.66 34.62
ISMB 250 194.1 250 125 12.5 6.9 5.00 28.13 36.23
ISMB 300 241.5 300 140 12.4 7.5 5.65 32.20 40.00
ISMB 350 288 350 140 14.2 8.1 4.93 35.56 43.21
ISMB 400 334.4 400 140 16 8.9 4.38 37.57 44.94
ISMB 450 379.2 450 150 17.4 9.4 4.31 40.34 47.87
ISMB 500 424.1 500 180 17.2 10.2 5.23 41.58 49.02
ISMB 550 467.5 550 190 19.3 11.2 4.92 41.74 49.11
ISMB 600 509.7 600 210 20.8 12 5.05 42.48 50.00
ISWB 150 116.6 150 100 7 5.4 7.14 21.59 27.78
ISWB 175 139.5 175 125 7.4 5.8 8.45 24.05 30.17
ISWB 200 158.8 200 140 9 6.1 7.78 26.03 32.79
ISWB 225 181.4 225 150 9.9 6.4 7.58 28.34 35.16
ISWB 250 203.8 250 200 9 6.7 11.11 30.42 37.31
ISWB 300 250.1 300 200 10 7.4 10.00 33.80 40.54
ISWB 350 295.5 350 200 11.4 8 8.77 36.94 43.75
 ISWB 400 340.5 400 200 13 8.6 7.69 39.59 46.51
ISWB 450 384 450 200 15.4 9.2 6.49 41.74 48.91
ISWB 500 431 500 250 14.7 9.9 8.50 43.54 50.51
ISWB 550 473.4 550 250 17.6 10.5 7.10 45.09 52.38
ISWB 600-1 514.2 600 250 21.3 11.2 5.87 45.91 53.57
ISWB 600-2 507.9 600 250 23.6 11.8 5.30 43.04 50.85
ISHB150-1 112 150 150 9 5.4 8.33 20.74 27.78
ISHB150-2 112 150 150 9 8.4 8.33 13.33 17.86
ISHB150-3 112 150 150 9 11.8 8.33 9.49 12.71
ISHB200-1 158.4 200 200 9 6.1 11.11 25.97 32.79
ISHB200-2 158.4 200 200 9 7.8 11.11 20.31 25.64
ISHB225-1 180.5 225 225 9.1 6.5 12.36 27.77 34.62
ISHB225-2 180.5 225 225 9.1 8.6 12.36 20.99 26.16
ISHB250-1 203.5 250 250 9.7 6.9 12.89 29.49 36.23
ISHB250-2 203.5 250 250 9.7 8.8 12.89 23.13 28.41
ISHB300-1 249.8 300 250 10.6 7.6 11.79 32.87 39.47
ISHB300-2 249.8 300 250 10.6 9.4 11.79 26.57 31.91
ISHB350-1 296 350 250 11.6 8.3 10.78 35.66 42.17
ISHB350-2 296 350 250 11.6 10.1 10.78 29.31 34.65
ISHB400-1 340.1 400 250 12.7 9.1 9.84 37.37 43.96
ISHB400-2 340.1 400 250 12.7 10.6 9.84 32.08 37.74
ISHB450-1 386.2 450 250 13.7 9.8 9.12 39.41 45.92
ISHB450-2 386.2 450 250 13.7 11.3 9.12 34.18 39.82
 IS 800:2007 IS 13920 Part II
Flange Web Flange (b/tf) Web (h/tw)
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Compact Plastic 6.98 56.08 Grade of Steel 350
Plastic Plastic 6.98 56.08 Ԑ 0.845
Plastic Plastic 6.98 56.08 Ry 1.2
Plastic Plastic 6.98 56.08 Ru 1.1
Plastic Plastic 6.98 56.08 E 200000
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08 IS 800:2007

Compact Plastic 6.98 56.08

Compact Plastic 6.98 56.08 I-section Compression
Compact Plastic 6.98 56.08 Flange

Plastic Plastic 6.98 56.08 Web

Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08 Channel section Compression
Plastic Plastic 6.98 56.08 Flange

Plastic Plastic 6.98 56.08 Web

Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Compact Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Compact Plastic 6.98 56.08
 Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Compact Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Plastic Plastic 6.98 56.08
Compact Plastic 6.98 56.08
Compact Plastic 6.98 56.08
Compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
Semi-compact Plastic 6.98 56.08
 Class 3
Class 1 Class 2 Semi-
Plastic Compact Compact
Rolled 7.94 8.87 13.27
Welded 7.10 7.94 11.49
Neutral axix at
mid depth 70.99 88.74 106.49

Rolled 7.94 8.87 13.27

Welded 7.10 7.94 11.49
Neutral axix at
mid depth 35.50 35.50 35.50
