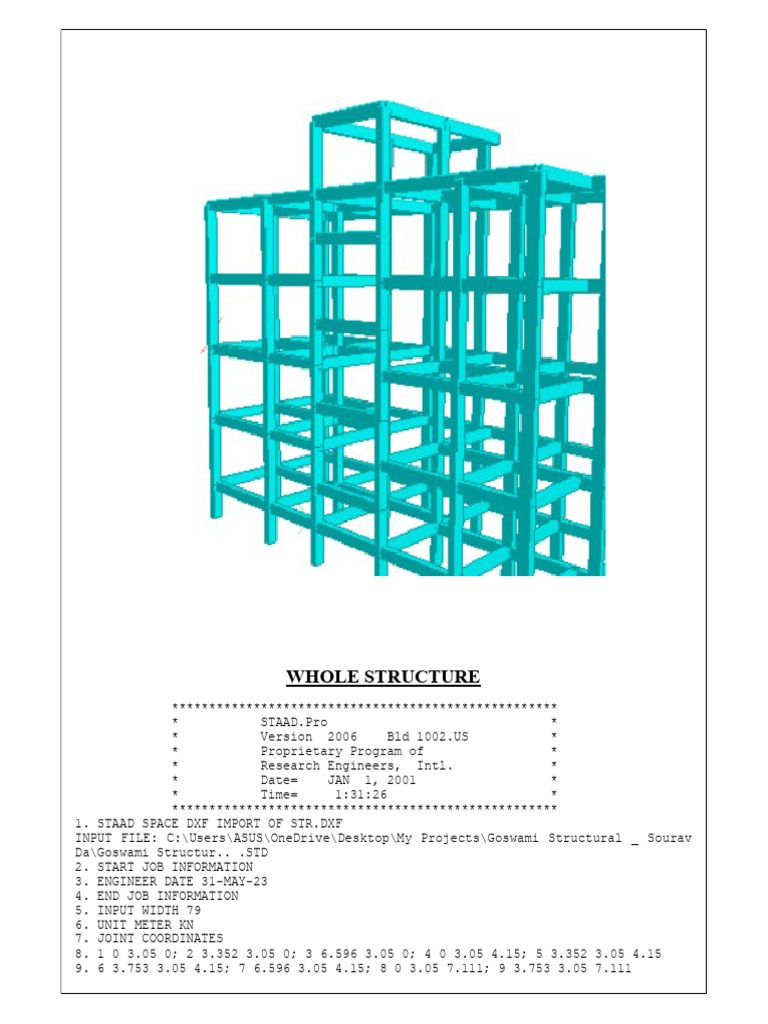

WHOLE STRUCTURE

****************************************************
* STAAD.Pro *
* Version 2006 Bld 1002.US *
* Proprietary Program of *
* Research Engineers, Intl. *
* Date= JAN 1, 2001 *
* Time= 1:31:26 *
****************************************************
1. STAAD SPACE DXF IMPORT OF STR.DXF
INPUT FILE: C:\Users\ASUS\OneDrive\Desktop\My Projects\Goswami Structural _ Sourav
Da\Goswami Structur.. .STD
2. START JOB INFORMATION
3. ENGINEER DATE 31-MAY-23
4. END JOB INFORMATION
5. INPUT WIDTH 79
6. UNIT METER KN
7. JOINT COORDINATES
8. 1 0 3.05 0; 2 3.352 3.05 0; 3 6.596 3.05 0; 4 0 3.05 4.15; 5 3.352 3.05 4.15
9. 6 3.753 3.05 4.15; 7 6.596 3.05 4.15; 8 0 3.05 7.111; 9 3.753 3.05 7.111
10. 10 6.596 3.05 7.111; 11 6.596 3.05 9.908; 12 0 3.05 10.558
11. 13 3.125 3.05 10.558; 14 6.596 3.05 10.558; 15 0 3.05 13.853
12. 16 3.125 3.05 13.853; 17 6.596 3.05 13.853; 18 0 3.05 16.428
13. 19 3.125 3.05 16.428; 20 3.125 3.05 17.152; 21 6.596 3.05 17.152; 22 0 -1.5 0
14. 23 3.352 -1.5 0; 24 6.596 -1.5 0; 25 0 -1.5 4.15; 26 3.753 -1.5 4.15
15. 27 6.596 -1.5 4.15; 28 0 -1.5 7.111; 29 3.753 -1.5 7.111; 30 6.596 -1.5 7.111
16. 31 6.596 -1.5 9.908; 32 0 -1.5 10.558; 33 3.125 -1.5 10.558; 34 0 -1.5 13.853
17. 35 3.125 -1.5 13.853; 36 6.596 -1.5 13.853; 37 0 -1.5 16.428
18. 38 3.125 -1.5 17.152; 39 6.596 -1.5 17.152; 40 0 0 0; 41 3.352 0 0
19. 42 6.596 0 0; 43 0 0 4.15; 44 3.753 0 4.15; 45 6.596 0 4.15; 46 0 0 7.111
20. 47 3.753 0 7.111; 48 6.596 0 7.111; 49 6.596 0 9.908; 50 0 0 10.558
21. 51 3.125 0 10.558; 52 0 0 13.853; 53 3.125 0 13.853; 54 6.596 0 13.853
22. 55 0 0 16.428; 56 3.125 0 17.152; 57 6.596 0 17.152; 58 3.352 0 4.15
23. 59 6.596 0 10.558; 60 3.125 0 16.428; 61 3.753 0 10.558; 62 0 6.1 0
24. 63 3.352 6.1 0; 64 6.596 6.1 0; 65 0 6.1 4.15; 66 3.352 6.1 4.15
25. 67 3.753 6.1 4.15; 68 6.596 6.1 4.15; 69 0 6.1 7.111; 70 3.753 6.1 7.111
26. 71 6.596 6.1 7.111; 72 6.596 6.1 9.908; 73 0 6.1 10.558; 74 3.125 6.1 10.558
27. 75 6.596 6.1 10.558; 76 0 6.1 13.853; 77 3.125 6.1 13.853; 78 6.596 6.1 13.853
28. 79 0 6.1 16.428; 80 3.125 6.1 16.428; 81 3.125 6.1 17.152; 82 6.596 6.1 17.152
29. 83 0 9.15 0; 84 3.352 9.15 0; 85 6.596 9.15 0; 86 0 9.15 4.15
30. 87 3.352 9.15 4.15; 88 3.753 9.15 4.15; 89 6.596 9.15 4.15; 90 0 9.15 7.111
31. 91 3.753 9.15 7.111; 92 6.596 9.15 7.111; 93 6.596 9.15 9.908
32. 94 0 9.15 10.558; 95 3.125 9.15 10.558; 96 6.596 9.15 10.558; 97 0 9.15 13.853
33. 98 3.125 9.15 13.853; 99 6.596 9.15 13.853; 100 0 9.15 16.428
34. 101 3.125 9.15 16.428; 102 3.125 9.15 17.152; 103 6.596 9.15 17.152
35. 104 0 12.2 0; 105 3.352 12.2 0; 106 6.596 12.2 0; 107 0 12.2 4.15
36. 108 3.352 12.2 4.15; 109 3.753 12.2 4.15; 110 6.596 12.2 4.15
37. 111 0 12.2 7.111; 112 3.753 12.2 7.111; 113 6.596 12.2 7.111
38. 114 6.596 12.2 9.908; 115 0 12.2 10.558; 116 3.125 12.2 10.558
39. 117 6.596 12.2 10.558; 118 0 12.2 13.853; 119 3.125 12.2 13.853
40. 120 6.596 12.2 13.853; 121 0 12.2 16.428; 122 3.125 12.2 16.428
41. 123 3.125 12.2 17.152; 124 6.596 12.2 17.152; 125 0 14.7 7.111
42. 126 3.753 14.7 7.111; 127 0 14.7 10.558; 128 3.125 14.7 10.558
43. 129 6.596 14.7 10.558; 130 6.596 14.7 9.908; 131 6.596 14.7 7.111
44. 132 0 4.55 7.111; 133 0 4.55 10.558; 134 0 1.5 7.111; 135 0 1.5 10.558
45. 136 0 7.6 7.111; 137 0 7.6 10.558; 138 0 10.65 7.111; 139 0 10.65 10.558
46. MEMBER INCIDENCES
47. 2 20 21; 3 1 2; 4 4 5; 5 8 9; 6 12 13; 7 15 16; 8 18 19; 9 20 19; 10 6 9
48. 11 1 4; 12 2 5; 13 16 17; 14 16 13; 15 19 16; 16 21 17; 17 4 8; 18 7 3
49. 20 10 7; 21 12 15; 22 14 11; 23 15 18; 24 17 14; 25 13 14; 26 6 7; 27 9 10
50. 28 2 3; 29 5 6; 30 11 10; 31 22 40; 32 23 41; 33 24 42; 34 25 43; 35 26 44
51. 36 27 45; 37 28 46; 38 29 47; 39 30 48; 40 31 49; 41 32 50; 42 33 51; 43 34 52
52. 44 35 53; 45 36 54; 46 37 55; 47 38 56; 48 39 57; 49 40 1; 50 41 2; 51 42 3
53. 52 43 4; 53 44 6; 54 45 7; 55 46 134; 56 47 9; 57 48 10; 58 49 11; 59 50 135
54. 60 51 13; 61 52 15; 62 53 16; 63 54 17; 64 55 18; 65 56 20; 66 57 21; 67 40 41
55. 68 41 42; 69 43 58; 70 44 45; 71 46 47; 72 47 48; 73 50 51; 74 52 53; 75 53 54
56. 76 56 57; 77 40 43; 78 43 46; 79 46 50; 80 50 52; 81 52 55; 82 42 45; 83 45 48
57. 84 48 49; 85 49 59; 86 54 57; 87 44 47; 88 51 53; 89 53 60; 90 58 44; 91 41 58
58. 92 59 54; 93 51 61; 94 60 56; 95 55 60; 96 61 59; 97 47 61; 98 81 82; 99 62 63
59. 100 65 66; 101 69 70; 102 73 74; 103 76 77; 104 79 80; 105 81 80; 106 67 70
60. 107 62 65; 108 63 66; 109 77 78; 110 77 74; 111 80 77; 112 82 78; 113 65 69
61. 114 68 64; 116 71 68; 117 73 76; 118 75 72; 119 76 79; 120 78 75; 121 74 75
62. 122 67 68; 123 70 71; 124 63 64; 125 66 67; 126 72 71; 127 102 103; 128 83 84
63. 129 86 87; 130 90 91; 131 94 95; 132 97 98; 133 100 101; 134 102 101
64. 135 88 91; 136 83 86; 137 84 87; 138 98 99; 139 98 95; 140 101 98; 141 103 99
65. 142 86 90; 143 89 85; 145 92 89; 146 94 97; 147 96 93; 148 97 100; 149 99 96
66. 150 95 96; 151 88 89; 152 91 92; 153 84 85; 154 87 88; 155 93 92; 156 123 124
67. 157 104 105; 158 107 108; 159 111 112; 160 115 116; 161 118 119; 162 121 122
68. 163 123 122; 164 109 112; 165 104 107; 166 105 108; 167 119 120; 168 119 116
69. 169 122 119; 170 124 120; 171 107 111; 172 110 106; 173 111 115; 174 113 110
70. 175 115 118; 176 117 114; 177 118 121; 178 120 117; 179 116 117; 180 109 110
71. 181 112 113; 182 105 106; 183 108 109; 184 114 113; 185 1 62; 186 62 83
72. 187 83 104; 188 2 63; 189 63 84; 190 84 105; 191 3 64; 192 64 85; 193 85 106
73. 194 4 65; 195 65 86; 196 86 107; 197 6 67; 198 67 88; 199 88 109; 200 7 68
74. 201 68 89; 202 89 110; 203 8 132; 204 69 136; 205 90 138; 206 9 70; 207 70 91
75. 208 91 112; 209 10 71; 210 71 92; 211 92 113; 212 11 72; 213 72 93; 214 93 114
76. 215 12 133; 216 73 137; 217 94 139; 218 13 74; 219 74 95; 220 95 116
77. 221 15 76; 222 76 97; 223 97 118; 224 16 77; 225 77 98; 226 98 119; 227 17 78
78. 228 78 99; 229 99 120; 230 18 79; 231 79 100; 232 100 121; 233 20 81
79. 234 81 102; 235 102 123; 236 21 82; 237 82 103; 238 103 124; 239 125 126
80. 240 127 128; 241 125 127; 242 129 130; 243 128 129; 244 126 131; 245 130 131
81. 246 111 125; 247 112 126; 248 113 131; 249 114 130; 250 115 127; 251 116 128
82. 252 132 69; 253 133 73; 254 132 133; 255 134 8; 256 135 12; 257 134 135
83. 258 136 90; 259 137 94; 260 136 137; 261 138 111; 262 139 115; 263 138 139
84. START GROUP DEFINITION
85. FLOOR
86. _TYP_FLOORS 2 TO 18 20 TO 30 98 TO 114 116 TO 143 145 TO 155
87. _ROOF 156 TO 172 174 175 177 TO 183
88. _STAIR_ROOF 239 TO 245
89. END GROUP DEFINITION
90. DEFINE MATERIAL START
91. ISOTROPIC CONCRETE
92. E 2.17185E+007
93. POISSON 0.17
94. DENSITY 23.5616
95. ALPHA 1E-005
96. DAMP 0.05
97. TYPE CONCRETE
98. STRENGTH FCU 27579
99. END DEFINE MATERIAL
100. MEMBER PROPERTY AMERICAN
101. 67 TO 97 257 PRIS YD 0.4 ZD 0.25
102. 2 3 8 16 17 20 21 23 28 98 99 104 112 113 116 117 119 124 127 128 133 141 -
103. 142 145 146 148 153 156 157 162 170 171 174 175 177 -
104. 182 PRIS YD 0.35 ZD 0.25
105. 4 TO 7 9 TO 15 18 22 24 TO 27 29 30 100 TO 103 105 TO 111 114 118 120 TO 123 -
106. 125 126 129 TO 132 134 TO 140 143 147 149 TO 152 154 155 158 TO 161 -
107. 163 TO 169 172 173 176 178 TO 181 183 184 239 TO 245 254 260 -
108. 263 PRIS YD 0.4 ZD 0.25
109. 31 TO 66 185 TO 238 246 TO 253 255 256 258 259 261 262 PRIS YD 0.25 ZD 0.4
110. CONSTANTS
111. BETA 90 MEMB 31 34 37 38 41 TO 43 49 52 55 56 59 TO 61 185 TO 187 194 TO 196 -
112. 203 TO 208 215 TO 223 246 247 250 TO 253 255 256 258 259 261 262
113. MATERIAL CONCRETE ALL
114. SUPPORTS
115. 22 TO 39 FIXED
116. DEFINE 1893 LOAD
117. ZONE 0.16 RF 3 I 1 SS 2 ST 1 DM 0.05
118. SELFWEIGHT 1
119. MEMBER WEIGHT
120. 2 3 5 6 8 11 16 TO 18 20 TO 24 27 28 30 98 99 101 102 104 107 112 TO 114 116 -
121. 117 TO 120 123 124 126 TO 128 130 131 133 136 141 TO 143 145 TO 149 152 153 -
122. 155 UNI 10.15
123. 4 7 9 10 12 TO 15 26 29 100 103 105 106 108 TO 111 122 125 129 132 134 135 -
124. 137 TO 140 151 154 UNI 7.125
125. 254 257 260 263 UNI 14.925
126. 159 160 173 176 179 181 184 UNI 9.6
127. 156 157 162 163 165 170 TO 172 174 175 177 178 182 UNI 3
128. FLOOR WEIGHT
129. _TYP_FLOORS FLOAD 4.925
130. _ROOF FLOAD 3.125
131. _STAIR_ROOF FLOAD 2.75
132. _TYP_FLOORS FLOAD 1.25
133. DEFINE WIND LOAD
134. TYPE 1 WIND 1
135. INT 0.92 0.94 0.97 HEIG 10 15 20
136. EXP 0.6 JOINT 1 TO 21 40 TO 139
137. LOAD 1 LOADTYPE SEISMIC TITLE SL+X
138. 1893 LOAD X 1
139. LOAD 2 LOADTYPE SEISMIC TITLE SL-X
140. 1893 LOAD X -1.
141. LOAD 3 LOADTYPE SEISMIC TITLE SL+Z
142. 1893 LOAD Z 1
143. LOAD 4 LOADTYPE SEISMIC TITLE SL-Z
144. 1893 LOAD Z -1.
145. LOAD 5 LOADTYPE DEAD TITLE DL
146. SELFWEIGHT Y -1
147. MEMBER LOAD
148. 2 3 5 6 8 11 16 TO 18 20 TO 24 27 28 30 98 99 101 102 104 107 112 TO 114 116 -
149. 117 TO 120 123 124 126 TO 128 130 131 133 136 141 TO 143 145 TO 149 152 153 -
150. 155 UNI GY -10.15
151. 4 7 9 10 12 TO 15 26 29 100 103 105 106 108 TO 111 122 125 129 132 134 135 -
152. 137 TO 140 151 154 UNI GY -7.125
153. 254 257 260 263 UNI GY -14.925
154. 159 160 173 176 179 181 184 UNI GY -9.6
155. 156 157 162 163 165 170 TO 172 174 175 177 178 182 UNI GY -3
156. FLOOR LOAD
157. _TYP_FLOORS FLOAD -4.925 GY
158. _ROOF FLOAD -3.125 GY
159. _STAIR_ROOF FLOAD -2.75 GY
160. LOAD 6 LOADTYPE LIVE REDUCIBLE TITLE LL
161. FLOOR LOAD
162. _TYP_FLOORS FLOAD -2.5 GY
163. _ROOF FLOAD -1.5 GY
164. _STAIR_ROOF FLOAD -0.75 GY
165. LOAD 7 LOADTYPE WIND TITLE WL+X
166. WIND LOAD X 1 TYPE 1 YR 0 16.2
167. LOAD 8 LOADTYPE WIND TITLE WL-X
168. WIND LOAD X -1 TYPE 1 YR 0 16.2
169. LOAD 9 LOADTYPE WIND TITLE WL+Z
170. WIND LOAD Z 1 TYPE 1 YR 0 16.2
171. LOAD 10 LOADTYPE WIND TITLE WL-Z
172. WIND LOAD Z -1 TYPE 1 YR 0 16.2
173. LOAD COMB 11 1.5(DL+LL)
174. 5 1.5 6 1.5
175. LOAD COMB 12 1.2(DL+LL+SL+X)
176. 1 1.2 5 1.2 6 1.2
177. LOAD COMB 13 1.2(DL+LL+SL-X)
178. 2 1.2 5 1.2 6 1.2
179. LOAD COMB 14 1.2(DL+LL+SL+Z)
180. 3 1.2 5 1.2 6 1.2
181. LOAD COMB 15 1.2(DL+LL+SL-Z)
182. 4 1.2 5 1.2 6 1.2
183. LOAD COMB 16 1.2(DL+LL+WL+X)
184. 5 1.2 6 1.2 7 1.2
185. LOAD COMB 17 1.2(DL+LL+WL-X)
186. 5 1.2 6 1.2 8 1.2
187. LOAD COMB 18 1.2(DL+LL+WL+Z)
188. 5 1.2 6 1.2 9 1.2
189. LOAD COMB 19 1.2(DL+LL+WL-Z)
190. 5 1.2 6 1.2 10 1.2
191. LOAD COMB 20 0.9DL+1.5SL+X
192. 1 1.5 5 0.9
193. LOAD COMB 21 0.9DL+1.5SL-X
194. 2 1.5 5 0.9
195. LOAD COMB 22 0.9DL+1.5SL+Z
196. 3 1.5 5 0.9
197. LOAD COMB 23 0.9DL+1.5SL-Z
198. 4 1.5 5 0.9
199. LOAD COMB 24 1.5(DL+WLX)
200. 5 1.5 7 1.5
201. LOAD COMB 25 1.5(DL-WLX)
202. 5 1.5 8 1.5
203. LOAD COMB 26 1.5(DL+WLZ)
204. 5 1.5 9 1.5
205. LOAD COMB 27 1.5(DL-WLZ)
206. 5 1.5 10 1.5
207. LOAD COMB 28 0.9DL+1.5WLX
208. 5 0.9 7 1.5
209. LOAD COMB 29 0.9DL-1.5WLX
210. 5 0.9 8 1.5
211. LOAD COMB 30 0.9DL+1.5WLZ
212. 5 0.9 9 1.5
213. LOAD COMB 31 0.9DL-1.5WLZ
214. 5 0.9 10 1.5
215. LOAD COMB 32 1.5(DL+SLX)
216. 1 1.5 5 1.5
217. LOAD COMB 33 1.5(DL-SLX)
218. 2 1.5 5 1.5
219. LOAD COMB 34 1.5(DL+SLZ)
220. 3 1.5 5 1.5
221. LOAD COMB 35 1.5(DL-SLZ)
222. 4 1.5 5 1.5
223. LOAD COMB 36 1.5DL
224. 5 1.5
225. LOAD COMB 37 1.0DL
226. 5 1.0
227. LOAD COMB 38 1.0(DL+LL)
228. 5 1.0 6 1.0
229. LOAD COMB 39 1.0DL+0.8LL+0.8WLX
230. 5 1.0 6 0.8 7 0.8
231. LOAD COMB 40 1.0DL+0.8LL-0.8WLX
232. 5 1.0 6 0.8 8 0.8
233. LOAD COMB 41 1.0DL+0.8LL+0.8WLZ
234. 5 1.0 6 0.8 9 0.8
235. LOAD COMB 42 1.0DL+0.8LL-0.8WLZ
236. 5 1.0 6 0.8 10 0.8
237. LOAD COMB 43 1.0(DL+WLX)
238. 5 1.0 7 1.0
239. LOAD COMB 44 1.0(DL-WLX)
240. 5 1.0 8 1.0
241. LOAD COMB 45 1.0(DL+WLZ)
242. 5 1.0 9 1.0
243. LOAD COMB 46 1.0(DL-WLZ)
244. 5 1.0 10 1.0
245. LOAD COMB 47 1.0DL+0.8LL+0.8SLX
246. 1 0.8 5 1.0 6 0.8
247. LOAD COMB 48 1.0DL+0.8LL-0.8SLX
248. 5 1.0 6 0.8 2 0.8
249. LOAD COMB 49 1.0DL+0.8LL+0.8SLZ
250. 4 0.8 5 1.0 6 0.8
251. LOAD COMB 50 1.0DL+0.8LL-0.8SLZ
252. 4 0.8 5 1.0 6 0.8
253. LOAD COMB 51 1.0(DL+SLX)
254. 1 1.0 5 1.0
255. LOAD COMB 52 1.0(DL+SL-X)
256. 2 1.0 5 1.0
257. LOAD COMB 53 1.0(DL+SL+Z)
258. 3 1.0 5 1.0
259. LOAD COMB 54 1.0(DL+SL-Z)
260. 4 1.0 5 1.0
261. PERFORM ANALYSIS

P R O B L E M S T A T I S T I C S
-----------------------------------
NUMBER OF JOINTS 139 NUMBER OF MEMBERS 259
NUMBER OF PLATES 0 NUMBER OF SOLIDS 0
NUMBER OF SURFACES 0 NUMBER OF SUPPORTS 18

SOLVER USED IS THE OUT-OF-CORE BASIC SOLVER

ORIGINAL/FINAL BAND-WIDTH= 126/ 20/ 108 DOF

TOTAL PRIMARY LOAD CASES = 10, TOTAL DEGREES OF FREEDOM = 726
TOTAL LOAD COMBINATION CASES = 44 SO FAR.
SIZE OF STIFFNESS MATRIX = 79 DOUBLE KILO-WORDS
REQRD/AVAIL. DISK SPACE = 13.4/ 111689.5 MB

*********************************************************
* *
* TIME PERIOD FOR X 1893 LOADING = 0.60562 SEC *
* SA/G PER 1893= 2.246, LOAD FACTOR= 1.000 *
* VB PER 1893= 0.0599 X 6351.17= 380.33 KN *
* *
*********************************************************

*********************************************************
* *
* TIME PERIOD FOR X 1893 LOADING = 0.60562 SEC *
* SA/G PER 1893= 2.246, LOAD FACTOR=-1.000 *
* VB PER 1893= 0.0599 X 6351.17= -380.33 KN *
* *
*********************************************************

*********************************************************
* *
* TIME PERIOD FOR Z 1893 LOADING = 0.60562 SEC *
* SA/G PER 1893= 2.246, LOAD FACTOR= 1.000 *
* VB PER 1893= 0.0599 X 6351.17= 380.33 KN *
* *
*********************************************************

*********************************************************
* *
* TIME PERIOD FOR Z 1893 LOADING = 0.60562 SEC *
* SA/G PER 1893= 2.246, LOAD FACTOR=-1.000 *
* VB PER 1893= 0.0599 X 6351.17= -380.33 KN *
* *
*********************************************************

352. LOAD LIST 11 TO 19

353. PRINT SUPPORT REACTION ALL

SUPPORT REACTION ALL

 SUPPORT IDENTIFICATION

Node L/C Force-X kN Force-Y kN Force-Z kN Moment-X kNm Moment-Y kNm

Moment-Z kNm
22 37 0.621 259.894 0.488 0.370 -0.029 -0.346
38 0.591 292.401 0.325 0.315 -0.039 -0.330
39 -3.979 271.529 0.448 0.420 -0.068 7.135
40 5.003 300.103 0.359 0.329 0.003 -7.563
41 0.743 282.155 -1.105 -1.313 -0.011 -0.565
42 0.528 289.714 1.839 1.924 -0.011 -0.223
43 -5.099 241.931 0.601 0.488 -0.067 8.989
44 6.129 277.648 0.490 0.374 0.022 -9.383
45 0.803 255.214 -1.340 -1.678 0.004 -0.635
46 0.535 264.662 2.340 2.368 0.004 -0.209
47 -13.748 219.795 0.390 0.368 -0.102 25.027
48 14.942 352.004 0.325 0.285 0.028 -25.694
49 -0.259 320.630 10.919 12.215 0.060 1.072
50 -0.259 320.630 10.919 12.215 0.060 1.072
 51 -17.310 177.263 0.528 0.422 -0.110 31.354
52 18.552 342.524 0.447 0.318 0.053 -32.047
53 1.690 216.481 -12.715 -14.490 -0.150 -2.103
54 -0.449 303.307 13.690 15.231 0.093 1.411
23 37 0.037 380.661 1.241 1.721 -0.030 -0.007
38 0.039 444.613 1.167 2.089 -0.041 0.000
39 -5.680 433.540 1.098 1.972 -0.042 4.835
40 5.642 430.192 1.244 2.051 -0.025 -4.739
41 0.211 426.752 -1.103 -1.731 -0.043 -0.149
42 -0.039 436.151 2.860 4.676 -0.022 0.067
43 -7.111 382.808 1.135 1.667 -0.034 6.038
44 7.040 378.623 1.318 1.766 -0.013 -5.930
45 0.253 374.323 -1.615 -2.962 -0.035 -0.192
46 -0.061 386.072 3.339 5.047 -0.010 0.078
47 -19.572 439.524 0.890 1.884 -0.061 16.764
48 19.649 424.121 1.474 2.146 -0.016 -16.767
49 -0.987 473.828 12.552 22.920 0.065 0.889
50 -0.987 473.828 12.552 22.920 0.065 0.889
51 -24.476 390.288 0.876 1.558 -0.059 20.950
52 24.550 371.034 1.606 1.885 -0.002 -20.964
53 1.319 328.154 -12.971 -24.409 -0.161 -1.120
54 -1.246 433.168 15.453 27.852 0.100 1.106
24 37 -0.483 256.317 0.208 0.387 0.071 0.271
38 -0.502 287.726 -0.015 0.362 0.098 0.294
39 -3.944 294.073 -0.047 0.243 0.063 4.027
40 2.929 268.841 0.017 0.350 0.136 -3.416
41 -0.387 275.076 -1.671 -2.403 0.027 0.171
42 -0.546 287.400 1.546 2.882 0.091 0.343
43 -4.790 272.102 0.113 0.231 0.034 4.942
44 3.801 240.563 0.193 0.365 0.126 -4.361
45 -0.344 248.357 -1.917 -3.076 -0.011 0.123
46 -0.543 263.762 2.105 3.530 0.069 0.338
47 -12.080 340.119 0.051 0.382 0.029 13.189
48 11.084 222.770 0.008 0.353 0.156 -12.610
49 -1.133 337.767 11.342 20.065 0.197 0.991
50 -1.133 337.767 11.342 20.065 0.197 0.991
51 -14.961 329.660 0.235 0.405 -0.008 16.395
52 13.995 182.974 0.181 0.369 0.151 -15.853
53 0.311 185.914 -13.932 -24.235 -0.060 -0.607
54 -1.277 326.721 14.349 25.009 0.203 1.148
25 37 0.571 395.674 0.455 0.292 -0.074 -0.473
38 0.431 456.623 0.566 0.353 -0.100 -0.507
39 -4.957 428.982 0.672 0.454 -0.104 8.211
40 5.698 459.870 0.558 0.349 -0.079 -9.003
41 0.577 442.432 -1.839 -1.725 -0.077 -0.651
42 0.406 446.596 2.927 2.382 -0.082 -0.441
43 -6.199 376.360 0.615 0.434 -0.085 10.416
44 7.119 414.970 0.473 0.302 -0.054 -11.102
45 0.718 393.172 -2.523 -2.290 -0.051 -0.662
46 0.504 398.378 3.435 2.844 -0.057 -0.398
47 -14.964 372.837 0.548 0.370 -0.131 27.036
48 15.882 516.030 0.539 0.311 -0.060 -28.036
49 -0.151 463.369 18.175 15.671 -0.021 0.301
50 -0.151 463.369 18.175 15.671 -0.021 0.301
51 -18.708 306.179 0.461 0.329 -0.119 33.947
52 19.849 485.169 0.450 0.255 -0.030 -34.893
53 1.333 372.005 -21.584 -18.872 -0.167 -1.475
54 -0.192 419.343 22.494 19.455 0.019 0.529
26 37 -0.161 459.068 0.671 0.767 0.235 0.052
38 -0.005 555.011 0.955 1.066 0.312 -0.041
39 -6.533 533.469 0.771 0.935 0.306 5.509
 40 6.430 538.184 0.969 1.031 0.303 -5.529
41 -0.013 531.424 -1.933 -2.680 0.172 -0.073
42 -0.015 539.580 3.478 4.097 0.295 -0.019
43 -8.282 456.125 0.513 0.678 0.247 6.967
44 7.922 462.019 0.760 0.798 0.242 -6.831
45 -0.132 453.570 -2.868 -3.841 0.080 -0.011
46 -0.135 463.764 3.896 4.631 0.232 0.057
47 -20.897 525.878 0.496 0.827 0.294 17.990
48 20.825 545.767 1.301 1.185 0.300 -18.035
49 -0.088 570.943 18.503 24.347 0.475 0.209
50 -0.088 570.943 18.503 24.347 0.475 0.209
51 -26.237 446.637 0.168 0.543 0.231 22.567
52 25.916 471.499 1.174 0.991 0.239 -22.464
53 -0.095 415.167 -21.335 -28.410 0.012 -0.237
54 -0.227 502.969 22.678 29.943 0.458 0.341
27 37 -0.443 328.351 0.416 0.266 -0.035 0.204
38 -0.484 374.829 0.603 0.380 -0.045 0.212
39 -4.847 383.538 0.442 0.209 -0.055 4.710
40 3.956 347.585 0.533 0.334 -0.031 -4.338
41 -0.382 363.305 -2.397 -2.925 -0.054 0.127
42 -0.518 367.527 3.330 3.428 -0.038 0.244
43 -5.906 350.857 0.262 0.082 -0.050 5.829
44 5.098 305.915 0.375 0.237 -0.020 -5.481
45 -0.325 325.565 -3.287 -3.836 -0.049 0.100
46 -0.495 330.842 3.873 4.105 -0.028 0.247
47 -14.185 447.942 0.663 0.400 -0.083 14.774
48 13.233 283.125 0.467 0.314 -0.003 -14.353
49 -0.988 383.569 21.835 24.441 0.020 0.662
50 -0.988 383.569 21.835 24.441 0.020 0.662
51 -17.579 431.361 0.538 0.320 -0.085 18.409
52 16.693 225.340 0.294 0.213 0.015 -18.000
53 0.197 305.805 -26.172 -29.839 -0.114 -0.360
54 -1.083 350.896 27.004 30.372 0.044 0.769
28 37 0.051 388.406 -0.615 -0.247 -0.023 0.072
38 -0.096 416.209 -0.737 -0.303 -0.028 0.161
39 -5.593 391.381 -0.599 -0.183 -0.017 8.821
40 5.589 430.113 -0.691 -0.282 -0.026 -8.513
41 -0.102 408.166 -3.009 -2.312 -0.030 0.199
42 -0.119 413.077 1.506 1.690 -0.008 0.190
43 -6.857 364.323 -0.474 -0.111 -0.010 10.919
44 7.121 412.738 -0.589 -0.234 -0.022 -10.748
45 0.007 385.303 -3.485 -2.772 -0.027 0.141
46 -0.014 391.442 2.158 2.230 0.000 0.131
47 -17.698 318.625 -0.732 -0.272 -0.023 28.869
48 17.565 502.672 -0.693 -0.312 -0.031 -28.583
49 -0.266 430.595 16.121 14.746 0.057 0.276
50 -0.266 430.595 16.121 14.746 0.057 0.276
51 -21.988 273.377 -0.639 -0.222 -0.018 35.980
52 22.091 503.436 -0.591 -0.272 -0.028 -35.835
53 0.300 363.473 -21.657 -19.045 -0.129 -0.094
54 -0.198 413.339 20.427 18.551 0.082 0.238
29 37 -0.225 378.142 0.795 0.505 -0.016 0.319
38 -0.173 425.368 0.913 0.612 -0.021 0.345
39 -10.025 412.072 1.055 0.663 -0.013 10.865
40 9.621 419.854 0.687 0.491 -0.026 -10.189
41 -0.274 423.189 -1.356 -1.399 -0.040 0.425
42 -0.230 409.914 2.894 2.320 -0.020 0.386
43 -12.527 373.328 1.002 0.594 -0.007 13.475
44 12.031 383.056 0.541 0.380 -0.023 -12.842
45 -0.338 387.224 -2.013 -1.983 -0.041 0.425
46 -0.283 370.631 3.301 2.666 -0.016 0.377
 47 -31.684 398.013 1.563 0.909 -0.026 35.230
48 31.317 433.833 0.216 0.273 -0.015 -34.550
49 -0.202 357.145 15.644 13.651 0.077 0.384
50 -0.202 357.145 15.644 13.651 0.077 0.384
51 -39.600 355.755 1.637 0.902 -0.023 43.931
52 39.151 400.530 -0.047 0.107 -0.009 -43.293
53 -0.202 451.615 -17.648 -15.821 -0.138 0.265
54 -0.247 304.669 19.237 16.830 0.106 0.374
30 37 -0.638 289.015 0.091 0.060 0.001 0.406
38 -0.710 312.035 0.154 0.106 0.002 0.463
39 -5.320 329.152 -0.072 -0.095 0.019 5.040
40 3.990 285.475 0.190 0.113 0.038 -4.203
41 -0.766 305.336 -3.032 -3.253 -0.033 0.502
42 -0.691 309.591 3.159 3.285 0.005 0.459
43 -6.418 316.166 -0.176 -0.180 0.023 6.142
44 5.218 261.570 0.151 0.080 0.046 -5.412
45 -0.727 286.396 -3.875 -4.127 -0.043 0.470
46 -0.632 291.715 3.863 4.046 0.005 0.415
47 -15.750 409.442 -0.061 -0.004 -0.000 15.750
48 14.360 205.421 0.344 0.197 0.004 -14.847
49 -0.466 325.492 23.328 25.003 0.069 0.355
50 -0.466 325.492 23.328 25.003 0.069 0.355
51 -19.457 416.528 -0.162 -0.066 -0.002 19.529
52 18.181 161.502 0.344 0.186 0.004 -18.718
53 -0.924 266.439 -28.892 -31.073 -0.083 0.526
54 -0.352 311.590 29.074 31.193 0.085 0.285
31 37 -0.480 298.046 0.614 0.267 0.017 0.394
38 -0.449 323.801 0.554 0.257 0.041 0.405
39 -2.916 331.639 0.811 0.270 0.010 3.959
40 2.346 305.544 0.155 0.073 -0.060 -3.527
41 -0.432 322.624 -2.279 -2.930 0.039 0.413
42 -0.446 314.989 3.314 3.341 0.045 0.392
43 -3.556 314.283 0.921 0.280 -0.016 4.840
44 3.022 281.664 0.101 0.035 -0.103 -4.517
45 -0.450 303.014 -2.942 -3.720 0.020 0.407
46 -0.467 293.470 4.050 4.119 0.028 0.381
47 -8.195 381.613 1.886 0.837 0.031 12.283
48 7.284 255.688 -0.754 -0.319 0.042 -11.478
49 -0.560 286.655 21.366 24.093 0.067 0.380
50 -0.560 286.655 21.366 24.093 0.067 0.380
51 -10.154 376.749 2.264 0.989 0.010 15.245
52 9.194 219.344 -1.036 -0.456 0.024 -14.456
53 -0.349 338.040 -25.386 -29.526 -0.022 0.422
54 -0.610 258.053 26.615 30.059 0.056 0.366
32 37 -0.332 375.145 0.332 0.066 0.012 0.409
38 -0.212 401.318 0.355 0.070 0.019 0.332
39 -6.575 371.424 0.495 0.195 0.029 9.419
40 6.294 421.041 0.341 0.064 0.022 -8.832
41 -0.385 399.112 -1.749 -1.842 -0.012 0.492
42 -0.160 393.019 2.540 2.041 -0.005 0.294
43 -8.255 344.320 0.513 0.223 0.027 11.749
44 7.831 406.341 0.320 0.060 0.018 -11.065
45 -0.518 378.930 -2.292 -2.323 -0.024 0.590
46 -0.237 371.314 3.069 2.531 -0.016 0.343
47 -20.362 279.029 0.449 0.148 0.022 30.312
48 19.889 513.138 0.252 -0.009 0.013 -29.617
49 0.526 370.727 16.447 14.727 0.101 -0.265
50 0.526 370.727 16.447 14.727 0.101 -0.265
51 -25.489 228.827 0.455 0.164 0.018 37.865
52 24.824 521.462 0.210 -0.032 0.007 -37.047
53 -1.285 406.840 -19.789 -18.255 -0.092 1.175
 54 0.621 343.449 20.453 18.388 0.117 -0.356
33 37 0.860 355.460 -0.020 -0.097 -0.146 -0.060
38 0.938 409.180 -0.067 -0.127 -0.189 -0.111
39 -8.385 410.371 0.041 -0.070 -0.156 10.246
40 10.280 386.318 -0.140 -0.159 -0.178 -10.575
41 0.934 394.245 -1.817 -1.729 -0.087 -0.026
42 0.816 403.670 1.976 1.800 -0.058 -0.071
43 -10.774 370.379 0.104 -0.032 -0.116 12.873
44 12.558 340.312 -0.122 -0.143 -0.143 -13.153
45 0.875 350.221 -2.219 -2.107 -0.029 0.033
46 0.727 362.003 2.523 2.305 0.006 -0.023
47 -28.511 454.773 0.254 0.023 -0.168 34.038
48 30.356 342.099 -0.370 -0.265 -0.192 -34.239
49 0.322 442.638 12.912 12.140 -0.075 -0.106
50 0.322 442.638 12.912 12.140 -0.075 -0.106
51 -35.931 425.881 0.370 0.084 -0.131 42.613
52 37.652 285.039 -0.409 -0.277 -0.161 -42.733
53 1.610 300.207 -16.232 -15.423 -0.277 -0.053
54 0.110 410.713 16.193 15.229 -0.015 -0.066
34 37 0.577 304.161 -0.875 -0.548 0.013 -0.114
38 0.585 345.035 -0.916 -0.583 0.011 -0.096
39 -4.840 319.319 -0.710 -0.424 0.062 8.117
40 6.241 355.664 -0.953 -0.600 -0.019 -8.734
41 0.557 334.286 -3.391 -2.640 0.005 -0.044
42 0.640 339.472 1.595 1.524 0.006 -0.175
43 -6.202 282.235 -0.628 -0.358 0.076 10.157
44 7.649 327.667 -0.931 -0.578 -0.025 -10.906
45 0.544 300.944 -3.978 -3.128 0.005 -0.044
46 0.648 307.426 2.254 2.076 0.006 -0.208
47 -16.313 251.360 -0.632 -0.409 0.082 27.872
48 17.480 422.360 -1.185 -0.743 -0.060 -28.072
49 0.939 360.347 17.821 15.181 0.078 -0.689
50 0.939 360.347 17.821 15.181 0.078 -0.689
51 -20.544 197.286 -0.530 -0.339 0.102 34.851
52 21.698 411.037 -1.221 -0.756 -0.076 -35.079
53 0.133 274.802 -24.287 -20.244 -0.070 0.623
54 1.021 333.521 22.536 19.149 0.096 -0.851
35 37 0.043 453.373 -0.672 -0.685 0.047 0.065
38 0.013 544.522 -0.772 -0.796 0.056 0.097
39 -6.087 533.192 -0.658 -0.720 0.072 5.253
40 6.532 518.995 -0.808 -0.799 0.028 -5.417
41 -0.026 524.890 -3.855 -4.085 0.034 0.129
42 0.077 527.972 2.994 3.371 0.049 0.043
43 -7.589 461.997 -0.555 -0.618 0.069 6.518
44 8.185 444.251 -0.742 -0.717 0.014 -6.819
45 -0.013 451.620 -4.551 -4.824 0.022 0.113
46 0.116 455.473 4.011 4.496 0.041 0.005
47 -21.051 559.368 -0.571 -0.698 0.093 18.127
48 21.088 493.216 -0.934 -0.850 0.016 -17.946
49 0.483 540.295 22.100 25.033 0.134 -0.299
50 0.483 540.295 22.100 25.033 0.134 -0.299
51 -26.294 494.718 -0.445 -0.590 0.095 22.611
52 26.380 412.027 -0.899 -0.780 -0.001 -22.481
53 -0.538 435.869 -29.237 -32.944 -0.052 0.553
54 0.624 470.876 27.893 31.573 0.146 -0.423
36 37 -0.526 360.072 -0.687 -0.450 -0.030 0.375
38 -0.440 414.169 -0.673 -0.454 -0.043 0.364
39 -4.266 416.769 -0.961 -0.683 0.018 4.415
40 3.680 389.015 -0.540 -0.394 -0.046 -4.024
41 -0.475 402.681 -3.495 -3.611 -0.033 0.392
42 -0.432 404.081 2.133 2.685 -0.012 0.335
 43 -5.287 376.847 -1.044 -0.736 0.043 5.436
44 4.646 342.154 -0.517 -0.375 -0.037 -5.112
45 -0.548 359.237 -4.211 -4.397 -0.020 0.407
46 -0.494 360.987 2.824 3.473 0.006 0.336
47 -13.252 468.811 -1.158 -0.686 0.019 14.418
48 12.338 337.889 -0.193 -0.221 -0.100 -13.686
49 -0.261 409.347 20.089 23.323 0.015 0.105
50 -0.261 409.347 20.089 23.323 0.015 0.105
51 -16.520 441.899 -1.290 -0.741 0.044 17.939
52 15.469 278.246 -0.084 -0.159 -0.104 -17.190
53 -0.771 352.575 -26.642 -30.170 -0.100 0.701
54 -0.280 367.569 25.269 29.271 0.040 0.048
37 37 0.909 201.413 -0.843 -0.753 0.056 -0.544
38 0.929 221.886 -0.901 -0.828 0.066 -0.568
39 -2.104 207.631 -0.707 -0.584 0.090 2.952
40 3.993 228.395 -0.911 -0.832 0.025 -4.192
41 0.801 225.375 -3.643 -4.250 0.042 -0.474
42 1.027 210.121 1.796 2.669 0.038 -0.613
43 -2.878 188.713 -0.614 -0.466 0.087 3.850
44 4.744 214.668 -0.870 -0.776 0.006 -5.080
45 0.754 210.893 -4.284 -5.049 0.028 -0.434
46 1.035 191.825 2.514 3.600 0.023 -0.607
47 -9.149 168.984 -0.687 -0.631 0.125 11.758
48 10.999 266.598 -1.092 -0.995 0.003 -12.884
49 1.976 148.110 18.799 25.186 0.154 -1.324
50 1.976 148.110 18.799 25.186 0.154 -1.324
51 -11.684 140.405 -0.590 -0.525 0.132 14.857
52 13.501 262.422 -1.095 -0.980 -0.021 -15.945
53 -0.404 288.514 -25.453 -33.252 -0.057 0.407
54 2.222 114.312 23.768 31.747 0.168 -1.496
38 37 -0.099 300.297 -0.957 -0.968 -0.175 0.139
38 -0.267 341.383 -0.897 -1.044 -0.212 0.247
39 -4.232 329.567 -1.336 -1.206 -0.081 4.067
40 4.240 337.298 -0.406 -0.808 -0.199 -4.075
41 -0.326 341.503 -2.942 -3.842 -0.202 0.300
42 -0.137 323.532 1.522 2.571 -0.163 0.154
43 -5.097 295.799 -1.491 -1.189 -0.020 4.941
44 5.493 305.463 -0.329 -0.691 -0.168 -5.238
45 -0.215 310.718 -3.499 -4.485 -0.173 0.232
46 0.022 288.255 2.081 3.532 -0.123 0.049
47 -14.865 315.170 -2.658 -1.812 -0.108 14.608
48 14.399 351.161 0.840 -0.246 -0.300 -14.157
49 0.738 251.304 13.314 20.942 -0.103 -0.578
50 0.738 251.304 13.314 20.942 -0.103 -0.578
51 -18.389 277.802 -3.143 -1.947 -0.055 18.117
52 18.192 322.791 1.229 0.011 -0.295 -17.839
53 -1.313 402.624 -18.736 -28.432 -0.301 1.143
54 1.115 197.970 16.821 26.496 -0.049 -0.865
39 37 -0.283 237.164 -0.643 -0.516 0.013 0.271
38 -0.188 264.823 -0.612 -0.530 0.016 0.262
39 -3.435 271.230 -0.742 -0.686 0.040 3.729
40 3.461 246.390 -0.603 -0.522 -0.025 -3.661
41 -0.256 266.325 -2.499 -3.255 0.015 0.317
42 -0.161 252.470 1.318 2.252 0.049 0.215
43 -4.318 252.088 -0.797 -0.714 0.045 4.602
44 4.301 221.037 -0.624 -0.509 -0.037 -4.635
45 -0.344 245.957 -2.993 -3.925 0.013 0.337
46 -0.226 228.638 1.778 2.959 0.055 0.210
47 -11.990 317.595 -0.690 -0.577 0.067 13.275
48 11.576 200.987 -0.546 -0.478 -0.036 -12.748
49 0.377 196.115 12.999 20.009 0.106 -0.354
 50 0.377 196.115 12.999 20.009 0.106 -0.354
51 -15.012 310.044 -0.733 -0.577 0.077 16.535
52 14.445 164.283 -0.552 -0.454 -0.051 -15.994
53 -1.014 316.133 -17.664 -26.186 -0.100 1.043
54 0.447 158.194 16.379 25.155 0.127 -0.501
************** END OF LATEST ANALYSIS RESULT **************

262. START CONCRETE DESIGN

263. CODE INDIAN
264. CLEAR 0.025 MEMB 2 TO 18 20 TO 30 67 TO 114 116 TO 143 145 TO 184 239 TO 245 -
265. 254 257 260 263
266. CLEAR 0.04 MEMB 31 TO 66 185 TO 238 246 TO 253 255 256 258 259 261 262
267. ENSH 1 MEMB 2 TO 18 20 TO 30 67 TO 114 116 TO 143 145 TO 184 239 TO 245 254 -
268. 257 260 263
269. FC 25000 ALL
270. FYMAIN 500000 ALL
271. FYSEC 415000 MEMB 2 TO 18 20 TO 30 67 TO 114 116 TO 143 145 TO 184 -
272. 239 TO 245 254 257 260 263
273. MAXMAIN 20 ALL
274. MAXSEC 12 MEMB 2 TO 18 20 TO 30 67 TO 114 116 TO 143 145 TO 184 239 TO 245 -
275. 254 257 260 263
276. MINMAIN 12 ALL
277. MINSEC 8 MEMB 2 TO 18 20 TO 30 67 TO 114 116 TO 143 145 TO 184 239 TO 245 -
278. 254 257 260 263
279. TORSION 1 MEMB 2 TO 18 20 TO 30 67 TO 114 116 TO 143 145 TO 184 239 TO 245 -
280. 254 257 260 263
281. TRACK 1 ALL
282. DESIGN BEAM 2 TO 18 20 TO 30 67 TO 114 116 TO 143 145 TO 184 239 TO 245 254 -
283. 257 260 263

BEAM & COLUM DESIGN

============================================================================
B E A M N O. 1 D E S I G N R E S U L T S

M25 Fe500 (Main) Fe415 (Sec.)

LENGTH: 3175.0 mm SIZE: 250.0 mm X 350.0 mm COVER: 25.0 mm

DESIGN LOAD SUMMARY (KN MET)

----------------------------------------------------------------------------
SECTION |FLEXURE (Maxm. Sagging/Hogging moments)| SHEAR
(in mm) | P MZ MX Load Case | VY MX Load Case
----------------------------------------------------------------------------
0.0 | 0.00 34.77 0.00 20 | 63.53 0.00 33
| 0.00 -60.35 0.00 33 |
264.6 | 0.00 33.82 0.00 20 | 58.19 0.00 33
| 0.00 -44.25 0.00 33 |
529.2 | 0.00 32.51 0.00 32 | 52.02 0.00 33
| 0.00 -30.25 0.00 21 |
793.8 | 0.00 32.19 0.00 32 | 45.98 0.00 33
| 0.00 -16.31 0.00 2 |
1058.3 | 0.00 20.02 0.00 51 | 38.40 0.00 33
| 0.00 -10.51 0.00 21 |
1322.9 | 0.00 25.99 0.00 32 | 31.65 0.00 33
| 0.00 -2.33 0.00 21 |
1587.5 | 0.00 19.84 0.00 32 | -27.16 0.00 32
| 0.00 -0.49 0.00 8 |
1852.1 | 0.00 15.81 0.00 11 | -35.84 0.00 32
| 0.00 -1.38 0.00 1 |
 2116.7 | 0.00 18.68 0.00 33 | -42.59 0.00 32
| 0.00 -0.91 0.00 7 |
2381.2 | 0.00 19.73 0.00 33 | -50.16 0.00 32
| 0.00 -12.69 0.00 20 |
2645.8 | 0.00 20.15 0.00 21 | -56.21 0.00 32
| 0.00 -24.98 0.00 32 |
2910.4 | 0.00 21.36 0.00 21 | -62.37 0.00 32
| 0.00 -40.66 0.00 32 |
3175.0 | 0.00 23.48 0.00 2 | -67.72 0.00 32
| 0.00 -57.86 0.00 32 |
----------------------------------------------------------------------------

SUMMARY OF REINF. AREA (Sq.mm)

----------------------------------------------------------------------------
SECTION 0.0 mm 793.8 mm 1587.5 mm 2381.2 mm 3175.0 mm
----------------------------------------------------------------------------
TOP 502.97 136.00 136.00 136.00 478.88
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)

BOTTOM 267.94 246.62 148.09 147.23 176.63

REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
----------------------------------------------------------------------------

SUMMARY OF PROVIDED REINF. AREA

----------------------------------------------------------------------------
SECTION 0.0 mm 793.8 mm 1587.5 mm 2381.2 mm 3175.0 mm
----------------------------------------------------------------------------
TOP 7-10í 3-10í 3-10í 3-10í 7-10í
REINF. 2 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 2 layer(s)

BOTTOM 4-10í 4-10í 3-10í 3-10í 3-10í

REINF. 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s)

SHEAR 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í

REINF. @ 235 mm c/c @ 240 mm c/c @ 240 mm c/c @ 240 mm c/c @ 235 mm c/c
----------------------------------------------------------------------------

SHEAR DESIGN RESULTS AT DISTANCE d (EFFECTIVE DEPTH) FROM FACE OF THE

SUPPORT
----------------------------------------------------------------------------
-

SHEAR DESIGN RESULTS AT 441.4 mm AWAY FROM START SUPPORT

VY = 54.06 MX = 0.00 LD= 33
Provide 2 Legged 8í @ 240 mm c/c

SHEAR DESIGN RESULTS AT 441.4 mm AWAY FROM END SUPPORT

VY = -58.83 MX = 0.00 LD= 32
Provide 2 Legged 8í @ 240 mm c/c

============================================================================
============================================================================
B E A M N O. 34 D E S I G N R E S U L T S

M25 Fe500 (Main) Fe415 (Sec.)

LENGTH: 3439.0 mm SIZE: 250.0 mm X 400.0 mm COVER: 25.0 mm

 DESIGN LOAD SUMMARY (KN MET)
----------------------------------------------------------------------------
SECTION |FLEXURE (Maxm. Sagging/Hogging moments)| SHEAR
(in mm) | P MZ MX Load Case | VY MX Load Case
----------------------------------------------------------------------------
0.0 | 0.00 57.50 0.00 23 | 79.15 0.00 34
| 0.00 -94.86 0.00 34 |
286.6 | 0.00 54.54 0.00 23 | 73.22 0.00 34
| 0.00 -73.02 0.00 34 |
573.2 | 0.00 49.83 0.00 35 | 66.27 0.00 34
| 0.00 -53.04 0.00 34 |
859.8 | 0.00 47.76 0.00 35 | 59.47 0.00 34
| 0.00 -37.58 0.00 22 |
1146.3 | 0.00 38.64 0.00 23 | 50.77 0.00 34
| 0.00 -20.91 0.00 3 |
1432.9 | 0.00 30.65 0.00 23 | 43.10 0.00 34
| 0.00 -14.22 0.00 3 |
1719.5 | 0.00 27.72 0.00 35 | -36.46 0.00 35
| 0.00 -7.52 0.00 3 |
2006.1 | 0.00 17.03 0.00 11 | -45.98 0.00 35
| 0.00 -0.04 0.00 2 |
2292.7 | 0.00 19.27 0.00 34 | -53.65 0.00 35
| 0.00 -5.86 0.00 4 |
2579.3 | 0.00 22.71 0.00 34 | -62.35 0.00 35
| 0.00 -16.49 0.00 23 |
2865.8 | 0.00 25.92 0.00 22 | -69.15 0.00 35
| 0.00 -33.76 0.00 35 |
3152.4 | 0.00 29.49 0.00 22 | -76.10 0.00 35
| 0.00 -54.58 0.00 35 |
3439.0 | 0.00 32.62 0.00 3 | -82.03 0.00 35
| 0.00 -77.23 0.00 35 |
----------------------------------------------------------------------------

SUMMARY OF REINF. AREA (Sq.mm)

----------------------------------------------------------------------------
SECTION 0.0 mm 859.8 mm 1719.5 mm 2579.3 mm 3439.0 mm
----------------------------------------------------------------------------
TOP 722.71 246.86 157.25 157.25 556.92
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)

BOTTOM 394.47 322.04 180.87 155.98 214.54

REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
----------------------------------------------------------------------------

SUMMARY OF PROVIDED REINF. AREA

----------------------------------------------------------------------------
SECTION 0.0 mm 859.8 mm 1719.5 mm 2579.3 mm 3439.0 mm
----------------------------------------------------------------------------
TOP 10-10í 4-10í 3-10í 3-10í 8-10í
REINF. 2 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 2 layer(s)

BOTTOM 3-16í 3-16í 3-16í 3-16í 3-16í

REINF. 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s)

SHEAR 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í

REINF. @ 270 mm c/c @ 275 mm c/c @ 275 mm c/c @ 275 mm c/c @ 270 mm c/c
 ----------------------------------------------------------------------------

SHEAR DESIGN RESULTS AT DISTANCE d (EFFECTIVE DEPTH) FROM FACE OF THE

SUPPORT
----------------------------------------------------------------------------
-

SHEAR DESIGN RESULTS AT 610.0 mm AWAY FROM START SUPPORT

VY = 66.89 MX = 0.00 LD= 34
Provide 2 Legged 8í @ 275 mm c/c

SHEAR DESIGN RESULTS AT 488.8 mm AWAY FROM END SUPPORT

VY = -71.89 MX = 0.00 LD= 35
Provide 2 Legged 8í @ 275 mm c/c

============================================================================
============================================================================
B E A M N O. 97 D E S I G N R E S U L T S

M25 Fe500 (Main) Fe415 (Sec.)

LENGTH: 2403.0 mm SIZE: 250.0 mm X 450.0 mm COVER: 25.0 mm

DESIGN LOAD SUMMARY (KN MET)

----------------------------------------------------------------------------
SECTION |FLEXURE (Maxm. Sagging/Hogging moments)| SHEAR
(in mm) | P MZ MX Load Case | VY MX Load Case
----------------------------------------------------------------------------
0.0 | 0.00 30.11 0.00 20 | 7.92 0.00 35
| 0.00 -35.90 0.00 33 |
200.3 | 0.00 25.94 0.00 20 | 7.13 0.00 35
| 0.00 -29.84 0.00 33 |
400.5 | 0.00 21.67 0.00 20 | 6.33 0.00 35
| 0.00 -23.94 0.00 33 |
600.8 | 0.00 17.31 0.00 20 | 5.53 0.00 35
| 0.00 -18.19 0.00 33 |
801.0 | 0.00 12.86 0.00 20 | 4.74 0.00 35
| 0.00 -9.93 0.00 13 |
1001.3 | 0.00 8.58 0.00 32 | 3.94 0.00 35
| 0.00 -7.46 0.00 21 |
1201.5 | 0.00 1.60 0.00 34 | 3.15 0.00 35
| 0.00 -0.34 0.00 4 |
1401.8 | 0.00 1.50 0.00 34 | 2.35 0.00 35
| 0.00 -1.25 0.00 1 |
1602.0 | 0.00 8.14 0.00 33 | 1.55 0.00 35
| 0.00 -5.37 0.00 32 |
1802.3 | 0.00 12.93 0.00 33 | -2.47 0.00 34
| 0.00 -10.86 0.00 20 |
2002.5 | 0.00 17.56 0.00 33 | -3.27 0.00 34
| 0.00 -15.89 0.00 20 |
2202.8 | 0.00 22.03 0.00 33 | -4.06 0.00 34
| 0.00 -21.02 0.00 20 |
2403.0 | 0.00 26.34 0.00 33 | -4.86 0.00 34
| 0.00 -26.24 0.00 20 |
----------------------------------------------------------------------------

SUMMARY OF REINF. AREA (Sq.mm)

 ----------------------------------------------------------------------------
SECTION 0.0 mm 600.8 mm 1201.5 mm 1802.3 mm 2403.0 mm
----------------------------------------------------------------------------
TOP 205.16 178.08 178.08 178.08 178.08
REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)

BOTTOM 178.08 178.08 178.08 178.08 178.08

REINF. (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm) (Sq. mm)
----------------------------------------------------------------------------

SUMMARY OF PROVIDED REINF. AREA

----------------------------------------------------------------------------
SECTION 0.0 mm 600.8 mm 1201.5 mm 1802.3 mm 2403.0 mm
----------------------------------------------------------------------------
TOP 3-12í 3-12í 3-12í 3-12í 3-12í
REINF. 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s)

BOTTOM 3-12í 3-12í 3-12í 3-12í 3-12í

REINF. 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s) 1 layer(s)

SHEAR 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í 2 legged 8í

REINF. @ 300 mm c/c @ 300 mm c/c @ 300 mm c/c @ 300 mm c/c @ 300 mm c/c
----------------------------------------------------------------------------

SHEAR DESIGN RESULTS AT DISTANCE d (EFFECTIVE DEPTH) FROM FACE OF THE

SUPPORT
----------------------------------------------------------------------------
-

SHEAR DESIGN RESULTS AT 544.0 mm AWAY FROM START SUPPORT

VY = 5.78 MX = 0.00 LD= 35
Provide 2 Legged 8í @ 300 mm c/c

============================================================================
********************END OF BEAM DESIGN RESULTS********************

284. DESIGN COLUMN 31 TO 66 185 TO 238 246 TO 253 255 256 258 259 261 262
============================================================================

C O L U M N N O. 64 D E S I G N R E S U L T S

M25 Fe500 (Main) Fe415 (Sec.)

LENGTH: 3050.0 mm CROSS SECTION: 400.0 mm X 250.0 mm COVER: 40.0 mm

** GUIDING LOAD CASE: 1 END JOINT: 55 TENSION COLUMN

DESIGN FORCES (KNS-MET)

-----------------------
DESIGN AXIAL FORCE (Pu) : -48.37

About Z About Y
INITIAL MOMENTS : 22.11 0.36
MOMENTS DUE TO MINIMUM ECC. : 0.97 0.97

SLENDERNESS RATIOS : - -
MOMENTS DUE TO SLENDERNESS EFFECT : - -
MOMENT REDUCTION FACTORS : - -
ADDITION MOMENTS (Maz and May) : - -

TOTAL DESIGN MOMENTS : 22.11 0.97

REQD. STEEL AREA : 800.00 Sq.mm.

REQD. CONCRETE AREA: 99200.00 Sq.mm.
MAIN REINFORCEMENT : Provide 8 - 12 dia. (0.90%, 904.78 Sq.mm.)
(Equally distributed)
TIE REINFORCEMENT : Provide 8 mm dia. rectangular ties @ 190 mm c/c

SECTION CAPACITY BASED ON REINFORCEMENT REQUIRED (KNS-MET)

----------------------------------------------------------
Puz : 1416.00 Muz1 : 28.24 Muy1 : 49.02

INTERACTION RATIO: 0.80 (as per Cl. 39.6, IS456:2000)

SECTION CAPACITY BASED ON REINFORCEMENT PROVIDED (KNS-MET)

----------------------------------------------------------
WORST LOAD CASE: 23
END JOINT: 55 Puz : 1454.11 Muz : 40.79 Muy : 73.02 IR: 0.82
============================================================================
============================================================================

C O L U M N N O. 213 D E S I G N R E S U L T S

M25 Fe500 (Main) Fe415 (Sec.)

LENGTH: 3050.0 mm CROSS SECTION: 400.0 mm X 250.0 mm COVER: 40.0 mm

** GUIDING LOAD CASE: 2 END JOINT: 72 TENSION COLUMN

DESIGN FORCES (KNS-MET)

-----------------------
DESIGN AXIAL FORCE (Pu) : -27.57

About Z About Y
INITIAL MOMENTS : 10.05 1.82
MOMENTS DUE TO MINIMUM ECC. : 0.55 0.55

SLENDERNESS RATIOS : - -
MOMENTS DUE TO SLENDERNESS EFFECT : - -
MOMENT REDUCTION FACTORS : - -
ADDITION MOMENTS (Maz and May) : - -

TOTAL DESIGN MOMENTS : 10.05 1.82

REQD. STEEL AREA : 800.00 Sq.mm.

REQD. CONCRETE AREA: 99200.00 Sq.mm.
MAIN REINFORCEMENT : Provide 8 - 12 dia. (0.90%, 904.78 Sq.mm.)
(Equally distributed)
TIE REINFORCEMENT : Provide 8 mm dia. rectangular ties @ 190 mm c/c

SECTION CAPACITY BASED ON REINFORCEMENT REQUIRED (KNS-MET)

----------------------------------------------------------
Puz : 1416.00 Muz1 : 29.82 Muy1 : 51.86

INTERACTION RATIO: 0.37 (as per Cl. 39.6, IS456:2000)

SECTION CAPACITY BASED ON REINFORCEMENT PROVIDED (KNS-MET)

----------------------------------------------------------
WORST LOAD CASE: 35
END JOINT: 72 Puz : 1454.11 Muz : 47.50 Muy : 86.06 IR: 0.90
============================================================================
 ********************END OF COLUMN DESIGN RESULTS********************

TOTAL VOLUME OF CONCRETE = 70.9 CU.METER

BAR DIA WEIGHT

(in mm) (in New)
-------- --------
8 12137
10 26
12 34182
16 8506
20 8983
------------
*** TOTAL= 63834
404. CONCRETE TAKE
405. END CONCRETE DESIGN
486. FINISH
*********** END OF THE STAAD.Pro RUN ***********

Design Module = Two-Way Rectangular Slab

Country Code = Indian
Job Name = S1
Input Pages Report
Geometry Data
Item Value Unit
Length along shorter direction 4.45 m
Length along longer direction 5 m
Panel Type Two adjacent edges discontinuous
Criteria for Depth User-Defined Depth
User Defined Depth 0.125 m

Material Data
Item Value Unit
Grade of Concrete M20
Grade of Steel Fe415
Unit weight of concrete 2500 kg/m3

Loads
Item Value Unit
Include self-weight? Yes
Superimposed dead load 4 kN/m2
Live load 2 kN/m2
Other load 1 kN/m2

Loads Combinations
LOAD COMBINATION FACTOR = 1.5
Reinforcement Data
Item Value Unit
Barsize along shorter dirn.(mm) 8
Barsize along longer dirn.(mm) 8
Clear Cover 0.015 m
Shear Consideration Increase Steel Percentage
Steel % along X-dirn. at top 0.12
Steel % along Y-dirn. at top 0.12

Calculation Sheet Report

Design Data
Clear Length of shorter span of the slab , Lx= 4450.000 mm
Clear Length of longer span of the slab , Ly= 5000.000 mm
Panel Type is Two adjacent Edge Discontinuous
Uniformly Distibuted Live Load , Wl= 0.00200 N/sq. mm
Characteristic Strength of concrete , Fck= 20.000 N/sq. mm
Characteristic Strength of steel , Fy= 415.000 N/sq. mm
Unit Weight Of Concrete, gc= 0.0000245 N/cubic mm
Bar size for reinf. in shorter Dir. , fx= 8.000 mm
Bar size for reinf. in longer Dir. , fy= 8.000 mm
Clr. Cover to the outermost Reinf. Bar of the slab , d' = 15.000 mm
Calculation Of Reinforcement
Overall Depth of the Slab, D = 125.000 mm
Dead Load Of Slab , Wd= D * gc= 0.00306 N/sq. mm
Effective Depth Of The Slab , d = D - d' - fx/2 = 106.000 mm
Effective Thickness Of the Slab along X-Dir ,dx= d = 106.000 mm
Effective Thickness Of the Slab along Y-Dir ,dy= d - fx/2 - fy/2 = 98.000 mm
Effective Length of shorter span of the slab , Lex= Lx + d = 4556.000 mm
Effective Length of longer span of the slab , Ley= Ly + dy= 5098.000 mm
Ratio of longer to shorter span , r = Ly/Lx= 1.119
Max. Factored Load among all comb. ,W = 0.01059 N/sq. mm
Moment Co-efficient in shorter dir. at span , ax= 0.04095
Moment Co-efficient in shorter dir. at edge , a 'x= 0.05433
Moment Co-efficient in longer dir. at span , ay= 0.03500
Moment Co-efficient in longer dir. at edge , a 'y= 0.04700
Factored Moment at ,
Span in shorter direction , Mux= a x * W * Lx = 8998.79771 Nmm
2

Span in longer direction , Muy= a y * W * Lx = 7691.61815 Nmm

2

Support in shorter direction , M'ux= a ' x* W * Lx = 11939.03523 Nmm

2

Support in longer direction , M'uy= a ' y* W * Lx = 10328.74437 Nmm

2

Width of the Slab , b = 1 mm

Limiting Moment of resistance of section
Along X-Direction , Mu,lim-x= 31003.16170 Nmm
Along Y-Direction , Mu,lim-y= 26500.03248 Nmm
Area Of steel reinf. in X-Dir. at span bottom , Astx= 0.24708 sq. mm
Area Of steel reinf. in Y-Dir. at span bottom , Asty= 0.22843 sq. mm
Area Of steel reinf. in X-Dir. at support top , A'stx= 0.33376 sq. mm
Area Of steel reinf. in Y-Dir. at support top , A'sty= 0.31260 sq. mm
Minimum Area Of steel reinf. in X-Dir. , Astx-min= 0.15000 sq. mm
Minimum Area Of steel reinf. in Y-Dir. , Asty-min= 0.15000 sq. mm
Cross-sectional Area Of steel in X-Dir. , Afx= p * fx /4 = 50.26544 sq. mm
2

Cross-sectional Area Of steel in Y-Dir. , Afy= p * fy /4 = 50.26544 sq. mm

2

Spacing in shorter Dir. at span , Sx= 200.000 mm

Spacing in longer Dir. at span , Sy= 220.000 mm
Maximum Spacing in shorter Dir. , Sx-max= 310.000 mm
Maximum Spacing in longer Dir. , Sy-max= 290.000 mm
Spacing in shorter direction at edge , S'x= 150.000 mm
Spacing in longer direction at edge , S'y= 160.000 mm
Calculation Of Shear
Factored shear force in shorter direction , Vux= 17.30500 N
Factored shear force in longer direction , Vuy= 16.07847 N
Shear stress developed at shorter span , tcx,dev= Vux/ (b + dx) = 0.16325 MPa
Shear stress developed at longer span , tcy,dev= Vuy/ (b + dy) = 0.16407 MPa
Percentage of steel reinf. in shorter dir. at top , P'tx= 0.31487
Permissble shear stress at the section along Y-axis ,tcx= 0.39603 MPa
Percentage of steel reinf. in longer dir. at top , P'ty= 0.31898
Permissble shear stress at the section along X-axis ,t cy= 0.39819 MPa

STAIR CASE DESIGN : STAIR

Type of Stair Case: Single Flight
Calculation of Stair Geometry:
Floor to Floor Height = 3.175 m
Total Length of Stair Hall = 5.0 m
Total Width of Stair Hall = 3.0 m
Depth of waist slab of all flight = 0.2 m
Height of single riser of first flight = 0.132 m
Tread Width of first flight = 0.25 m
Width of waist slab of first flight = 1.5 m
Unit Weight of Concrete = 24.47 kN/m3
Unit Weight of Floor Finish = 23.49 kN/m3
Thickness of Floor Finish = 0.03 m
Total Live Load Acting on StairCase = 5.00 kN/m2
Load Combination Factor = 1.50
Calculation of Flight Load for Flight1:
Area of Step Section = 0.0165 m2
Area of Inclined Slab = 0.09 m2
Area of Floor Finish = 0.01 m2
Total Area = 0.117 m2
Dead Load of Step Section = 3.00 kN/m
Dead Load per m2 on plan = 11.46 kN/m2
Total Load(DL + LL) = 16.46 kN/m2
Load on Flight taking 1m width of slab = 24.70 kN/m
Load on Landing = 19.57 kN/m
Calculation of Moments and Shear for Flight1
Maximum Sagging Moment = 91.35 kN-m
Maximum Hogging Moment at Start Landing = 0.00 kN-m
Maximum Hogging Moment at End Landing = 0.00 kN-m
Design Moment for Flight1 = 91.35 kN-m
Calculation of Reinforcement due to Design Moment for Flight1
Effective Depth of Waist Slab = 174.00 mm
Value of Mu/bd2 = 0.92 N/mm 2
Limiting value of Mu/bd2 = 2.16 N/mm 2
Reinforcement Area required in Waist Slab at bottom = 538.94 mm 2
Spacing required in Waist Slab at bottom = 213.22 mm
Spacing provided in Waist Slab at bottom = 210.00 mm
Reinforcement Area provided in Waist Slab at bottom = 565.16 mm 2
Steel percentage provided in Waist Slab at bottom = 0.32
Calculation of Distribution Reinforcement
Minimum Percentage of Distribution Reinforcement = 0.12
Distribution Reinforcement Area required = 360.00 mm 2
Spacing of Distribution Reinforcement required = 314.16 mm
Spacing of Distribution Reinforcement provided = 300.00 mm
Distribution Reinforcement Area provided = 376.99 mm 2
Steel percentage provided for Distribution Reinforcement = 0.13
