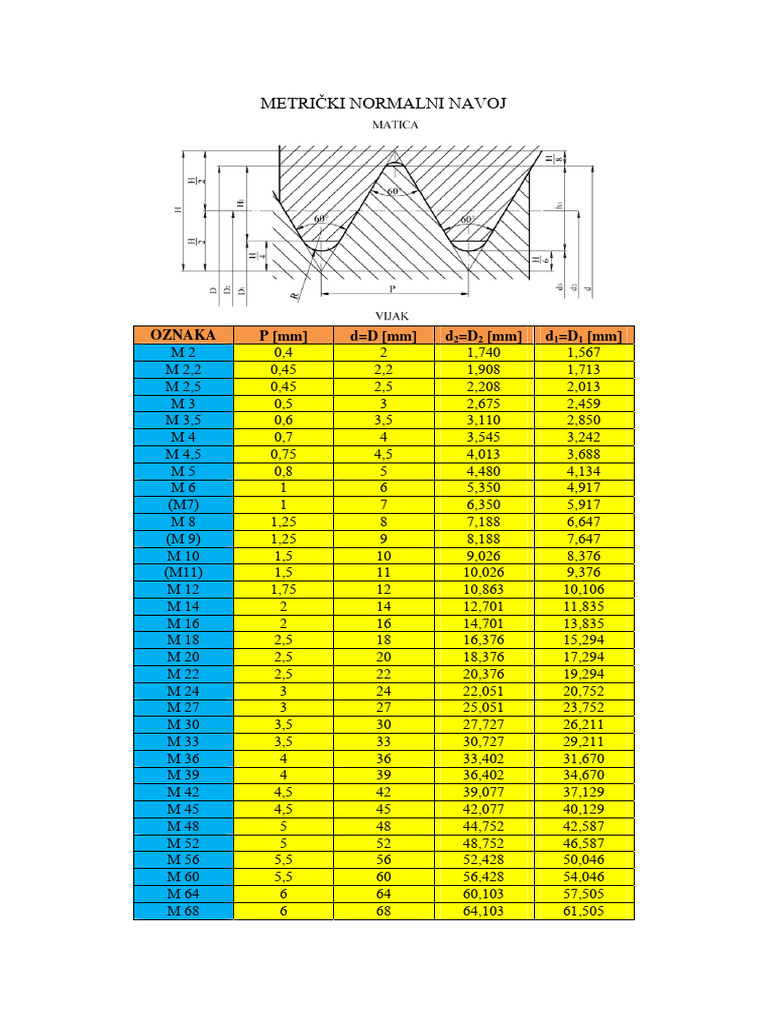

METRIČKI NORMALNI NAVOJ

OZNAKA P [mm] d=D [mm] d2=D2 [mm] d1=D1 [mm]

M2 0,4 2 1,740 1,567
M 2,2 0,45 2,2 1,908 1,713
M 2,5 0,45 2,5 2,208 2,013
M3 0,5 3 2,675 2,459
M 3,5 0,6 3,5 3,110 2,850
M4 0,7 4 3,545 3,242
M 4,5 0,75 4,5 4,013 3,688
M5 0,8 5 4,480 4,134
M6 1 6 5,350 4,917
(M7) 1 7 6,350 5,917
M8 1,25 8 7,188 6,647
(M 9) 1,25 9 8,188 7,647
M 10 1,5 10 9,026 8,376
(M11) 1,5 11 10,026 9,376
M 12 1,75 12 10,863 10,106
M 14 2 14 12,701 11,835
M 16 2 16 14,701 13,835
M 18 2,5 18 16,376 15,294
M 20 2,5 20 18,376 17,294
M 22 2,5 22 20,376 19,294
M 24 3 24 22,051 20,752
M 27 3 27 25,051 23,752
M 30 3,5 30 27,727 26,211
M 33 3,5 33 30,727 29,211
M 36 4 36 33,402 31,670
M 39 4 39 36,402 34,670
M 42 4,5 42 39,077 37,129
M 45 4,5 45 42,077 40,129
M 48 5 48 44,752 42,587
M 52 5 52 48,752 46,587
M 56 5,5 56 52,428 50,046
M 60 5,5 60 56,428 54,046
M 64 6 64 60,103 57,505
M 68 6 68 64,103 61,505
 METRIČKI FINI NAVOJ

OZNAKA P [mm] d=D [mm] d2=D2 [mm] d1=D1 [mm]

M 2x0,25 0,25 2 1,838 1,729
M 2,2x0,25 0,25 2,2 2,038 1,929
M 2,5x0,35 0,35 2,5 2,273 2,121
M 3x0,35 0,35 3 2,773 2,621
M 3,5x0,35 0,35 3,5 3,273 3,121
M 4x0,5 0,5 4 3,675 3,459
M 4,5x0,5 0,5 4,5 4,175 3,959
M 5x0,5 0,5 5 4,675 4,459
(M 5,5x0,5) 0,5 5 5,175 4,959
M 6x0,75 0,75 6 5,513 5,188
(M 7x0,75) 0,75 7 6,513 6,188
M 8x1 1 8 7,350 6,917
M 8x0,75 0,75 8 7,513 7,188
(M 9x1) 1 9 8,350 7,917
(M 9x0,75) 0,75 9 8,513 8,188
M 10x1,25 1,25 10 9,188 8,647
M 10x1 1 10 9,350 8,917
M 10x0,75 0,75 10 9,513 9,188
(M 11x1) 1 11 10,350 9,917
(M 11x0,75) 0,75 11 10,513 10,188
M 12x1,5 0,75 12 11,026 10,376
M 12x1,25 1,25 12 11,188 10,647
M 12x1 1 12 11,350 10,917
M 14x1,5 1,5 14 13,026 12,376
M 14x1,25 1,25 14 13,188 12,647
M 14x1 1 14 13,350 12,917
(M 15x1,5) 1,5 15 14,026 13,376
(M 15x1) 1 15 14,350 13,917
M 16x1,5 1,5 16 15,026 14,376
M 16x1 1 16 15,350 14,917
(M 17x1,5) 1,5 17 16,026 15,376
(M 17x1) 1 17 16,350 15,917
M 18x2 2 18 16,701 15,835
M 18x1,5 1,5 18 17,026 16,376
M 18x1 1 18 17,350 16,917
M 20x2 2 20 18,701 17,835
M 20x1,5 1,5 20 19,026 18,376
M 20x1 1 20 19,350 18,917
M 22x2 2 22 20,701 19,835
M 22x1,5 1,5 22 21,026 20,376
M 22x1 1 22 21,350 20,917
M 24x2 2 24 22,701 21,835
M 24x1,5 1,5 24 23,026 22,376
M 24x1 1 24 23,350 22,917
OZNAKA P [mm] d=D [mm] d2=D2 [mm] d1=D1 [mm]
(M25x2) 2 25 23,701 22,835
(M25x1,5) 1,5 25 24,026 23,376
(M 25x1) 1 25 24,350 23,917
(M26x1,5) 1,5 26 25,026 24,376
M 27x2 2 27 27,701 24,835
M 27x1,5 1,5 27 26,026 25,376
M 27x1 1 27 26,350 25,917
(M 28x2) 2 28 26,701 25,835
(M 28x1,5) 1,5 28 27,026 26,376
(M 28x1) 1 28 27,350 26,917
(M 30x3) 3 30 28,051 26,752
M 30x2 2 30 28,701 27,835
M 30x1,5 1,5 30 29,026 28,376
M 30x1 1 30 29,350 28,917
(M 32x2) 2 32 30,701 29,835
(M 32x1,5) 1,5 32 31,026 30,376
(M 33x3) 3 33 31,051 29,752
M 33x2 2 33 31,701 30,835
M 33x1,5 1,5 33 32,026 31,376
(M 35x1,5) 1,5 35 34,026 33,376
M 36x3 3 36 34,051 32,752
M 36x2 2 36 34,701 33,835
M 36x1,5 1,5 36 35,026 34,376
(M 38x1,5) 1,5 38 37,026 36,376
M 39x3 3 39 37,051 35,752
M 39x2 2 39 37,701 36,835
M 39x1,5 1,5 39 38,026 37,376
(M 40x3) 3 40 38,051 36,752
(M 40x2) 2 40 38,701 37,835
(M 40x1,5) 1,5 40 39,026 38,376
M 42x4 4 42 39,402 37,670
M 42x3 3 42 40,051 38,752
M 42x2 2 42 40,701 39,835
M 42x1,5 1,5 42 41,026 40,376
M 45x4 4 45 42,402 40,670
M 45x3 3 45 43,051 41,752
M 45x2 2 45 43,701 42,835
M 45x1,5 1,5 45 44,026 43,376
M 48x4 4 48 45,402 43,670
M 48x3 3 48 46,051 44,752
M 48x2 2 48 46,701 45,835
M 48x1,5 1,5 48 47,026 46,376
(M 50x3) 3 50 48,051 46,752
(M50x2) 2 50 48,701 47,835
(M50x1,5) 1,5 50 49,,026 48,376
M 52x4 4 52 49,402 47,670
M 52x3 3 52 50,051 48,752
OZNAKA P [mm] d=D [mm] d2=D2 [mm] d1=D1 [mm]
M 52x2 2 52 50,701 49,835
M 52x1,5 1,5 52 51,026 50,376
(M 55x4) 4 55 52,402 50,670
(M 55x3) 3 55 53,051 51,752
(M 55x2) 2 55 53,701 52,835
(M 55x1,5) 1,5 55 54,026 53,376
M 56x4 4 56 53,402 51,670
M 56x3 3 56 54,051 52,752
M 56x2 2 56 54,701 53,835
M 56x1,5 1,5 56 55,026 54,376
(M 58x4) 4 58 55,402 53,670
(M 58x3) 3 58 56,051 54,752
(M 58x2) 2 58 56,701 55,835
M 60x4 4 60 57,402 55,670
M 60x3 3 60 58,051 56,752
M 60x2 2 60 58,701 57,835
M 60x1,5 1,5 60 59,026 58,376
(M 62x4) 4 62 59,402 57,670
(M 62x3) 3 62 60,051 58,752
(M 62x2) 2 62 60,701 59,835
(M 62x1,5) 1,5 62 61,026 60,376
M 64x4 4 64 61,402 59,670
M 64x3 3 64 62,051 60,752
M 64x2 2 64 62,701 61,835
M 64x1,5 1,5 64 63,026 62,376
(M 65x4) 4 65 62,402 60,670
(M 65x3) 3 65 65,031 61,752
(M 65x2) 2 65 63,701 62,835
(M 65x1,5) 1,5 65 64,026 63,376
M 68x4 4 68 65,402 63,670
M 68x3 3 68 66,051 64,752
M 68x2 2 68 66,701 65,835
M 68x1,5 1,5 68 67,026 66,376
(M 70x6) 6 70 66,103 63,505
(M 70x4) 4 70 67,402 65,670
(M 7x3) 3 70 68,051 66,752
(M 70x2) 2 70 68,701 67,835
(M 70x1,5) 1,5 70 69,026 68,376
M 72x6 6 72 68,103 65,505
M 72x4 4 72 69,402 67,670
M 72x3 3 72 70,051 68,752
M 72x2 2 72 70,701 69,835
M 72x1,5 1,5 72 71,026 70,376
(M 75x4) 4 75 72,402 70,670
(M 75x3) 3 75 73,051 71,752
(M 75x2) 2 75 73,701 72,835
(M 75x1,5) 1,5 75 74,026 73,376
Mehanička svojstva vijaka i matica kod sobne temperature
Razred 3.6 4.6 4.8 5.6 5.8 6.8 8.8 9.8 10.9 12.9
Re
180 240 320 300 400 480 640 720 900 1080
[N/mm2]
Rm
300 400 400 500 500 600 800 800 1000 1200
[N/mm2]

Promjer rupe za vijke ovisno o kvaliteti izrade

Navoj Promjer rupe Dr Navoj Promjer rupe Dr Navoj Promjer rupe Dr
d Kvaliteta izrade d Kvaliteta izrade d Kvaliteta izrade
[mm] fina srednja gruba [mm] fina srednja gruba [mm] fina srednja gruba
3 3,2 3,4 3,6 18 19 20 21 52 54 56 62
3,5 3,7 3,9 4,2 20 21 22 24 56 58 62 66
4 4,3 4,5 4,8 22 23 24 26 60 62 66 70
4,5 4,8 5 5,3 24 25 26 28 64 66 70 74
5 5,3 5,5 5,8 27 28 30 32 68 70 74 78
6 6,4 6,6 7,0 30 31 33 35 72 74 78 82
7 7,4 7,6 8 33 34 36 38 76 78 82 86
8 8,4 9 10 36 37 39 42 80 82 86 91
10 10,5 11 12 39 40 42 45 85 87 91 96
12 13 13,5 14,5 42 43 45 48 90 93 96 101
14 15 15,5 16,5 45 46 48 52 95 98 101 107
16 17 17,5 18,5 48 50 52 56 100 104 107 112
 UNI EN 22768 – 1 STANDARD
( for measures without the indication of specific tolerances)

Permissible deviation limits for linear dimensions, except for broken edges (external radii and chamfer heights)
Dimensions in mm
Tolerance class Deviation limits per fundamental size range
Designation Description from 0.5* >3 >6 > 30 > 120 > 400 > 1000 > 2000
until 3 until 6 until 30 until 120 until 400 until 1000 until 2000 until 4000
f Fine ± 0.05 ± 0.05 ± 0.1 ± 0.15 ± 0.2 ± 0.3 ± 0.5 -
m Medium ± 0.1 ± 0.1 ± 0.2 ± 0.3 ± 0.5 ± 0.8 ± 1.2 ±2
c Coarse ± 0.2 ± 0.3 ± 0.5 ± 0.8 ± 1.2 ±2 ±3 ±4
v Very coarse - ± 0.5 ±1 ± 1.5 ± 2.5 ±4 ±6 ±8
* for nominal sizes < 0.5 mm, the deviations shall be indicated adjacent to the relevant nominal size(s).

Permissible deviation limits for broken edges (external radii and chamfer heights)
Dimensions in mm
Tolerance class Deviation limits per fundamental size range
Designation Description from 0.5* >3
>6
until 3 until 6
f Fine
± 0.2 ± 0.5 ±1
m Medium
c Coarse
± 0.4 ±1 ±2
v Very coarse
* for nominal sizes < 0.5 mm, the deviations shall be indicated adjacent to the relevant nominal size(s).

Permissible deviation limits for angular dimensions

Tolerance class Deviation limits per length range in mm from the shorter side of the angle in question
Designation Description > 10 > 50 > 120
until 10 > 400
until 50 until 120 until 400
f Fine
± 1° ± 0°30’ ± 0°20’ ± 0°10’ ± 0°5’
m Medium
c Coarse ± 1°30’ ± 1° ± 0°30’ ± 0°15’ ± 0°10’
v Very coarse ± 3° ± 2° ± 1° ± 0°30’ ± 0°20’
