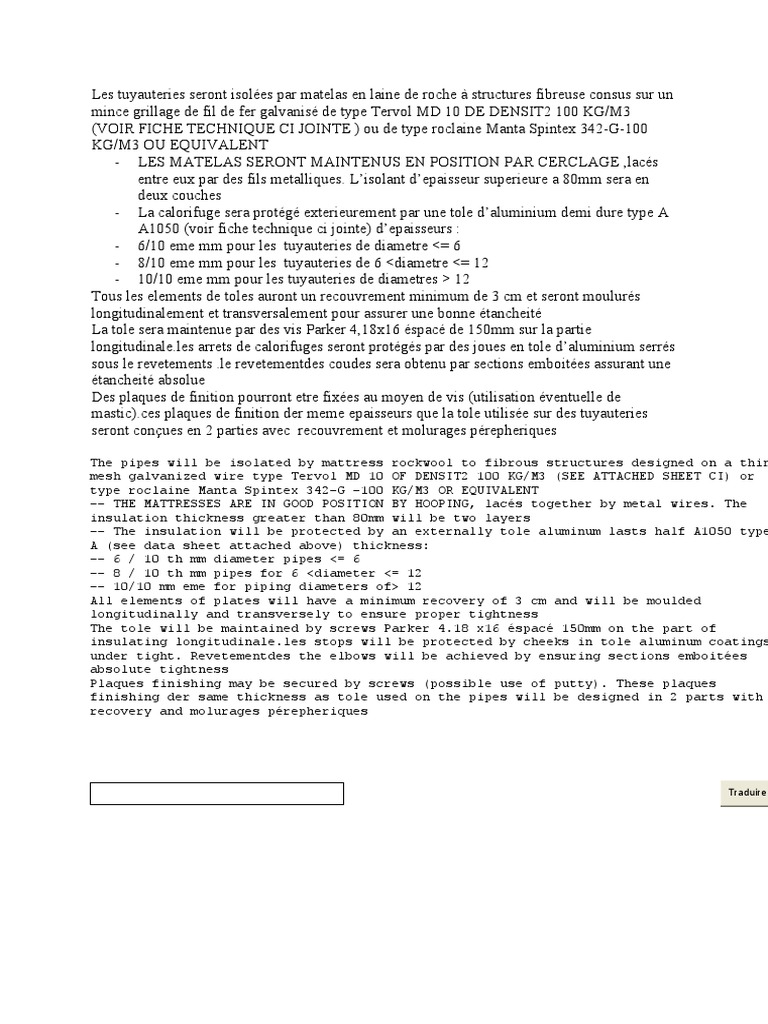

The pipes will be isolated by mattress rockwool to fibrous structures designed on a thin
mesh galvanized wire type Tervol MD 10 OF DENSIT2 100 KG/M3 (SEE ATTACHED SHEET CI) or
type roclaine Manta Spintex 342-G -100 KG/M3 OR EQUIVALENT
-- THE MATTRESSES ARE IN GOOD POSITION BY HOOPING, lacés together by metal wires. The
insulation thickness greater than 80mm will be two layers
-- The insulation will be protected by an externally tole aluminum lasts half A1050 type
A (see data sheet attached above) thickness:
-- 6 / 10 th mm diameter pipes <= 6
-- 8 / 10 th mm pipes for 6 <diameter <= 12
-- 10/10 mm eme for piping diameters of> 12
All elements of plates will have a minimum recovery of 3 cm and will be moulded
longitudinally and transversely to ensure proper tightness
The tole will be maintained by screws Parker 4.18 x16 éspacé 150mm on the part of
insulating longitudinale.les stops will be protected by cheeks in tole aluminum coatings
under tight. Revetementdes the elbows will be achieved by ensuring sections emboitées
absolute tightness
Plaques finishing may be secured by screws (possible use of putty). These plaques
finishing der same thickness as tole used on the pipes will be designed in 2 parts with
recovery and molurages pérepheriques
