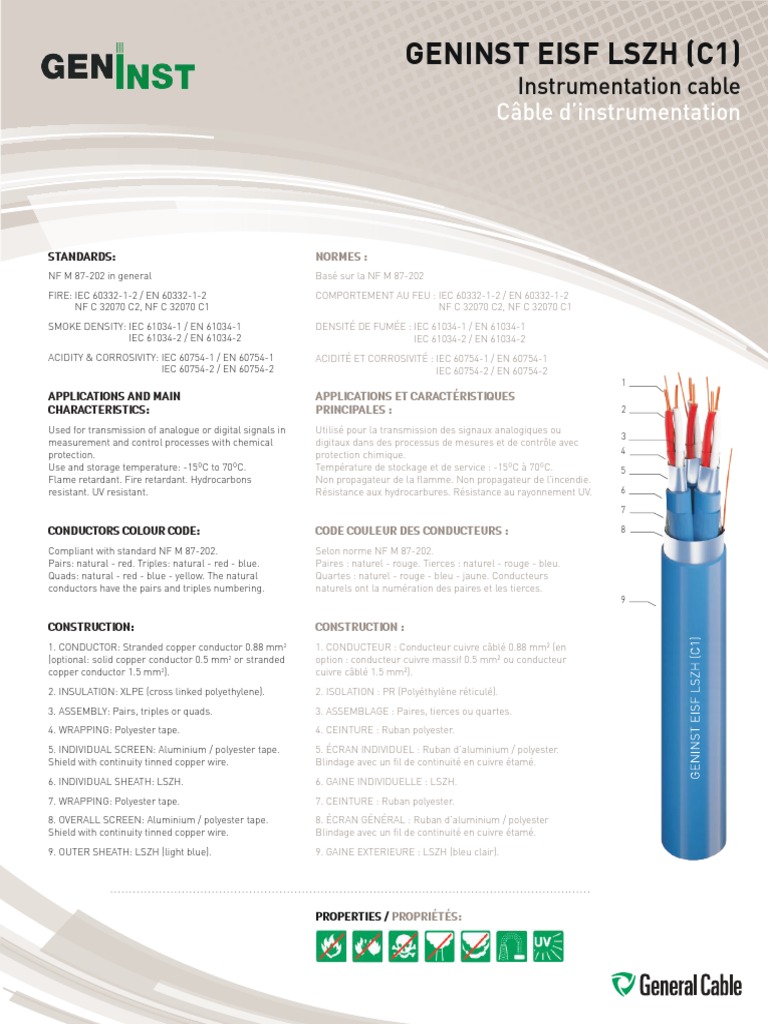

Instrumentation cable
Câble d’instrumentation
STANDARDS: NORMES :
NF M 87-202 in general Basé sur la NF M 87-202
FIRE: IEC 60332-1-2 / EN 60332-1-2 COMPORTEMENT AU FEU : IEC 60332-1-2 / EN 60332-1-2
FIRE: NF C 32070 C2, NF C 32070 C1 COMPORTEMENT AU FEU : NF C 32070 C2, NF C 32070 C1
SMOKE DENSITY: IEC 61034-1 / EN 61034-1 DENSITÉ DE FUMÉE : IEC 61034-1 / EN 61034-1
SMOKE DENSITY: IEC 61034-2 / EN 61034-2 DENSITÉ DE FUMÉE : IEC 61034-2 / EN 61034-2
ACIDITY & CORROSIVITY: IEC 60754-1 / EN 60754-1 ACIDITÉ ET CORROSIVITÉ : IEC 60754-1 / EN 60754-1
ACIDITY & CORROSIVITY: IEC 60754-2 / EN 60754-2 ACIDITÉ ET CORROSIVITÉ : IEC 60754-2 / EN 60754-2
1
APPLICATIONS AND MAIN APPLICATIONS ET CARACTÉRISTIQUES
CHARACTERISTICS: PRINCIPALES : 2
Used for transmission of analogue or digital signals in Utilisé pour la transmission des signaux analogiques ou
3
measurement and control processes with chemical digitaux dans des processus de mesures et de contrôle avec
protection. protection chimique. 4
Use and storage temperature: -15ºC to 70ºC. Température de stockage et de service : -15ºC à 70ºC. 5
Flame retardant. Fire retardant. Hydrocarbons Non propagateur de la flamme. Non propagateur de l’incendie.
resistant. UV resistant. Résistance aux hydrocarbures. Résistance au rayonnement UV. 6
CONSTRUCTION: CONSTRUCTION :
1. CONDUCTOR: Stranded copper conductor 0.88 mm2 1. CONDUCTEUR : Conducteur cuivre câblé 0.88 mm² (en
(optional: solid copper conductor 0.5 mm2 or stranded option : conducteur cuivre massif 0.5 mm² ou conducteur
copper conductor 1.5 mm2). cuivre câblé 1.5 mm²).
2. INSULATION: XLPE (cross linked polyethylene). 2. ISOLATION : PR (Polyéthylène réticulé).
3. ASSEMBLY: Pairs, triples or quads. 3. ASSEMBLAGE : Paires, tierces ou quartes.
4. WRAPPING: Polyester tape. 4. CEINTURE : Ruban polyester.
5. INDIVIDUAL SCREEN: Aluminium / polyester tape. 5. ÉCRAN INDIVIDUEL : Ruban d’aluminium / polyester.
Shield with continuity tinned copper wire. Blindage avec un fil de continuité en cuivre étamé.
6. INDIVIDUAL SHEATH: LSZH. 6. GAINE INDIVIDUELLE : LSZH.
7. WRAPPING: Polyester tape. 7. CEINTURE : Ruban polyester.
8. OVERALL SCREEN: Aluminium / polyester tape. 8. ÉCRAN GÉNÉRAL : Ruban d’aluminium / polyester
Shield with continuity tinned copper wire. Blindage avec un fil de continuité en cuivre étamé.
9. OUTER SHEATH: LSZH (light blue). 9. GAINE EXTERIEURE : LSZH (bleu clair).
PROPERTIES / PROPRIÉTÉS:
GENINST EISF LSZH (C1)
Instrumentation cable
Câble d’instrumentation
RECYCLED PAPER
mm kg/km
4421035AZP 03 IP 09 EISF* 3x2x0.88 16.3 270 In stock / En stock
4421075AZP 07 IP 09 EISF* 7x2x0.88 22.1 510 In stock / En stock
4422075AZP 07 IT 09 EISF* 7x3x0.88 23.2 620 In stock / En stock
4421125AZP 12 IP 09 EISF* 12x2x0.88 28.6 820 In stock / En stock
