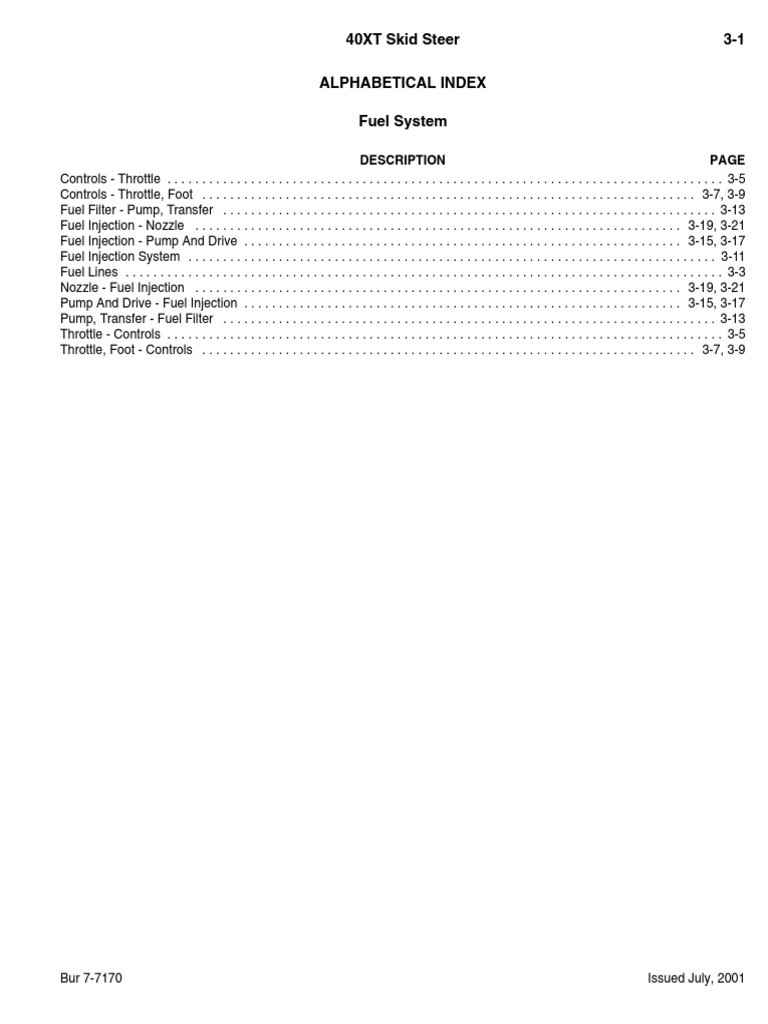

ALPHABETICAL INDEX
Fuel System
DESCRIPTION PAGE
Controls - Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Controls - Throttle, Foot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-9
Fuel Filter - Pump, Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Fuel Injection - Nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19, 3-21
Fuel Injection - Pump And Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15, 3-17
Fuel Injection System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Fuel Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Nozzle - Fuel Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19, 3-21
Pump And Drive - Fuel Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15, 3-17
Pump, Transfer - Fuel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Throttle - Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Throttle, Foot - Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-9
INDEX ALPHABETIQUE
Système d'alimentation
DESIGNATION PAGE
Commandes - Papillon Des Gaz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Commandes - Pédale D'Accélération . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-9
Conduites D'Essence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Filtre À Carburant - Pompe, Tranfert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Gicleur - Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19, 3-21
Injection - Gicleur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19, 3-21
Injection - Pompe Et Entraînement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15, 3-17
Papillon Des Gaz - Commandes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Pédale D'Accélération - Commandes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-9
Pompe Et Entraînement - Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15, 3-17
Pompe, Tranfert - Filtre À Carburant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Système D'Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
INDICE ALFABETICO
Sistema de Combustible
DESIGNACION PAGINA
Acelerador - Controles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Acelerador, Pie - Controles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-9
Bomba Y Transmision - Inyeccion De Combustible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15, 3-17
Bomba, Transferencia - Filtro De Combustible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Boquilla - Inyeccion De Combustible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19, 3-21
Controles - Acelerador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Controles - Acelerador, Pie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7, 3-9
Filtro De Combustible - Bomba, Transferencia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Inyeccion De Combustible - Bomba Y Transmision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15, 3-17
Inyeccion De Combustible - Boquilla . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19, 3-21
Linea De Combustible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Sistema De Inyeccion De Combustible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
BC01E166
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-3
FUEL LINES
CONDUITES D’ESSENCE
LINEA DE COMBUSTIBLE
REF PART NO. QTY ENGLISH DIMENSION FRANCAIS ESPAÑOL CARES
1 217-142 1 Elbow, 45 3/8 stem x 1/4 PT Coude, 45 Codo, 45
2 D138967 1 Hose 80 mm (3-1/4 in) Flexible Flexible
• Cut From : A21561X • Couper à longueur : • Separado De :
A21561X A21561X
3 214-1704 6 Clamp 1/4 - 5/8 Collier De Serrage Argolla De Cierre
4 D139225 1 Filter, Fuel Filtre A Carburant Filtro Combustible
• In-Line • En ligne • En línea
5 391965A1 1 Hose 1100 mm (43-5/16 in) Flexible Flexible
6 H434805 1 Valve, Shut-Off Robinet Grifo
7 391966A1 1 Hose 1200 mm (47-1/4 in) Flexible Flexible
8 217-294 1 Elbow, 90 1/4 barb x 1/4 PT Coude, 90 Codo, 90
9 434521A1 1 Sleeve Chemise Camisa
BC01E173
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-5
CONTROLS - THROTTLE
COMMANDES - PAPILLON DES GAZ
CONTROLES - ACELERADOR
REF PART NO. QTY ENGLISH DIMENSION FRANCAIS ESPAÑOL CARES
377031A1 1 Control Assy Commande Ass. Mando Conj.
• Throttle • Papillon • Acelerador
• Not Available As An • Non disponible monté • No disponible como
Assembly conjunto
• Order Components • Commander les • Pedir los
pièces componentes
• Consists Of : 1-8 • Compose De : 1-8 • Compuesto De : 1-8
1 D126613 1 Grip Poignée De Levier Asa De Palanca
2 377030A2 1 Handle Poignée Asa
3 832-41312 1 Nut, Lock M12 Ecrou Frein Tuerca De Retención
4 896-11012 1 Washer 13,5 x 24 x 3 mm Rondelle Arandela
5 1342374C1 2 Disc, Friction Disque De Friction Disco De Fricción
6 257971A1 1 Washer, Special Rondelle Spéciale Arandela Especial
7 257973A1 1 Washer, Rubber Rondelle Elastique Arandela Elástica
8 291244A1 1 Pivot Pivot Pivote
9 492-11025 2 Washer, Lock 1/4 Rondelle Frein Arandela Freno
10 H169920 1 Ball Joint 1/4 NF Rotule Rotula
11 425-114 3 Nut 1/4 NF Ecrou Tuerca
12 376946A2 1 Rod Tringle Vástago
13 A10329 1 Ball Joint 1/4 NF Rotule Rotula
BC01G009
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-7
BC01G009
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-9
BS01E184
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-11
BS01E185
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-13
BT99A031
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-15
BT99A031
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-17
B920892S
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-19
B920892S
Issued July, 2001 Bur 7-7170
40XT Skid Steer 3-21
